1 / 1Rover equipment AF-AU1630ATC-L

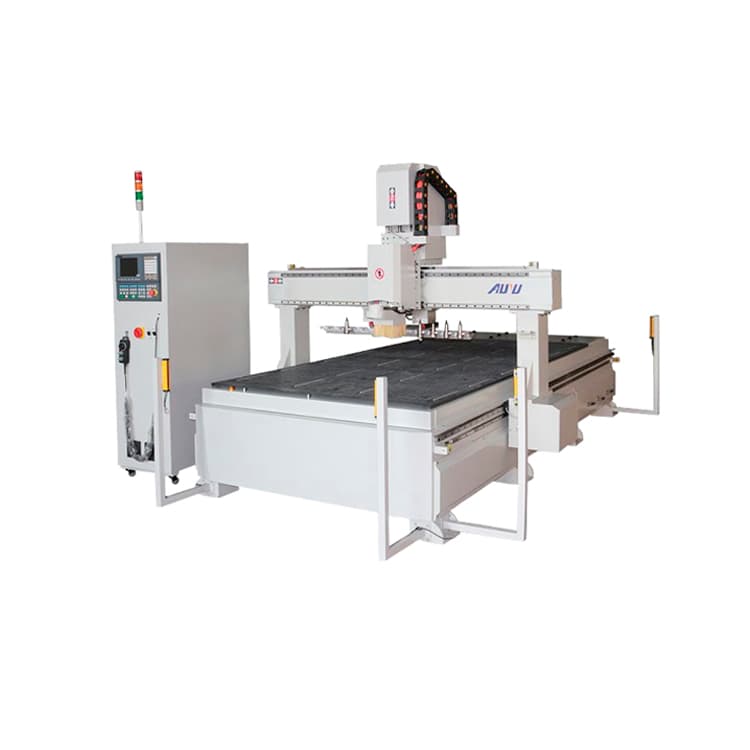

This rover is a CNC router with a 12-position linear tool changer.
- Spindle power
- 9.0 KW HSD Air cooling spindle
- Vacuum power
- 5.5 KW
- Model
- AF-AU2130ATC-L
- X axis motor
- 1.0KW Delta servo motor
- Y axis motor
- 2x1.0KW Delta servo motor
- Spindle speed
- 24000rmp
Overview
About the equipment
This rover is a CNC router with a 12-position linear tool changer. It is designed for cutting and milling furniture parts.
The machine has a 9 kW air-cooled HSD spindle running at 24,000 rpm. Tools are held in a 12-position linear changer and swapped by the program, so machining a part with different cutters does not require stopping the machine to change tools by hand.
Travel speed is up to 60 m/min on the X and Y axes and up to 30 m/min on the Z axis, with Delta servo motors on each axis (X 1.0 kW, Y 2×1.0 kW, Z 1.0 kW). Machining accuracy is ±0.05 mm. The worktable uses vacuum hold-down with T-slots, and the vacuum system is rated at 5.5 kW. Control is by a Syntec 6MB system with an 11 kW Taiwan Delta inverter. The machine suits production of cabinet furniture, fronts and decorative parts.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us your product and sheet format, and we will check that the machine suits your tasks.
General
- Model
- AF-AU2130ATC-L
- Working area
- 3000x2100x200mm
- Work table
- Vacuum table+T-hole
- Spindle power
- 9.0 KW HSD Air cooling spindle
- Spindle speed
- 24000rmp
- X-axis velocity
- 0-60 m/min
- Y axis velocity
- 0-60 m/min
- Z axis velocity
- 0-30 m/min
- X axis motor
- 1.0KW Delta servo motor
- Y axis motor
- 2x1.0KW Delta servo motor
- Z axis motor
- 1.0KW Delta servo motor
- Hardware changer
- 12 position line
- Accuracy of operation
- ±0.05 mm
- Vacuum power
- 5.5 KW
- Inverter
- Taiwan Delta 11kw
- Management system
- Syntec 6MB
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentRover equipment AF-AU1630ATC-LYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
16 parameters- Model
- AF-AU2130ATC-L
- Working area
- 3000x2100x200mm
- Work table
- Vacuum table+T-hole
- Spindle power
- 9.0 KW HSD Air cooling spindle
- Spindle speed
- 24000rmp
- X-axis velocity
- 0-60 m/min
- Y axis velocity
- 0-60 m/min
- Z axis velocity
- 0-30 m/min
- X axis motor
- 1.0KW Delta servo motor
- Y axis motor
- 2x1.0KW Delta servo motor
- Z axis motor
- 1.0KW Delta servo motor
- Hardware changer
- 12 position line
- Accuracy of operation
- ±0.05 mm
- Vacuum power
- 5.5 KW
- Inverter
- Taiwan Delta 11kw
- Management system
- Syntec 6MB
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
