Rover AF-BCM1325S Plus — Image 1 / 21 / 2
RoverbcamProduct code: AF-BCM1325S Plus

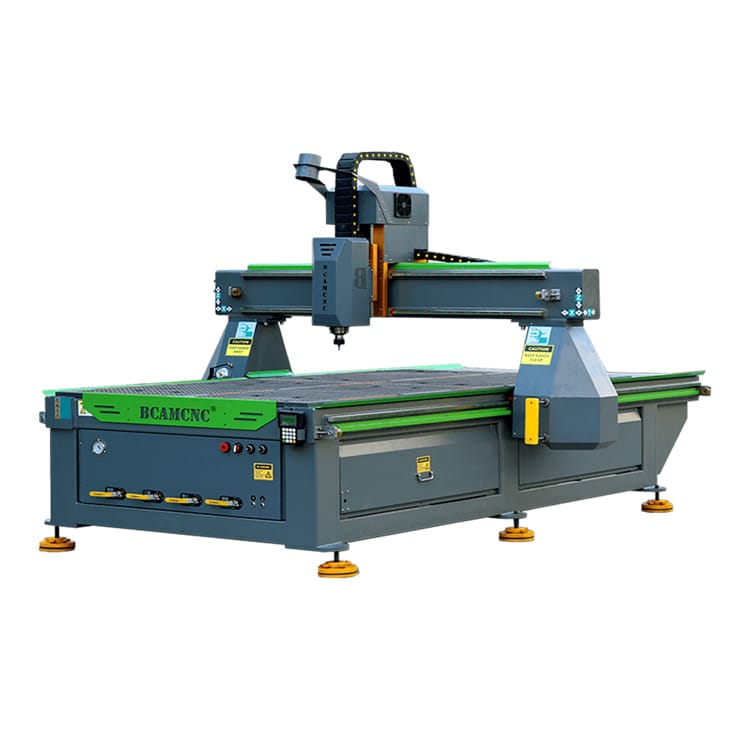

Rover AF-BCM1325S Plus

Processing of Wood, Plastic, Aluminum and Metal

Individual offer
Spindle power
3.0 kW
Model
AF-BCM1325S Plus
Max. travel speed
30m/min
Operating voltage
AC 220 V or 380 V
Spindle speed
6000*24000RPM
X, Y, Z working area
1300 * 2500 * 200mm | 4 * 8ft
Price

Overview

Key features

  • Operating voltage

    AC 220 V or 380 V / 50 Hz / 3-phase; 220 V / 1-phase / 50 Hz

  • Software compatibility

    BCAMPRO / VCarve / VCarve Pro / ArtCAM / UCANCAM, etc.

About the equipment

Processing of Wood, Plastic, Aluminum and Metal

01

General

15 parameters
General
Model
AF-BCM1325S Plus
X, Y, Z working area
1300 * 2500 * 200mm | 4 * 8ft
Optional working area
1300*1300*200mm 4*4ft
Optional working area
1500*3000*200mm 5*10ft
Optional working area
2000*3000*200mm 6*10ft
Optional working area
2000*4000*200mm 6*13ft
Optional working area
2000*6000*200mm 6*20ft
Spindle power
3.0 kW, water-cooled
Table surface
Vacuum table + T-slots
Max. travel speed
30m/min
Spindle speed
6000*24000RPM
Operating voltage
AC 220 V or 380 V / 50 Hz / 3-phase; 220 V / 1-phase / 50 Hz
Control system
Richauto A11 DSP control system
Interface
USB
Software compatibility
BCAMPRO / VCarve / VCarve Pro / ArtCAM / UCANCAM, etc.
AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentRover AF-BCM1325S Plus

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

15 parameters
Model
AF-BCM1325S Plus
X, Y, Z working area
1300 * 2500 * 200mm | 4 * 8ft
Optional working area
1300*1300*200mm 4*4ft
Optional working area
1500*3000*200mm 5*10ft
Optional working area
2000*3000*200mm 6*10ft
Optional working area
2000*4000*200mm 6*13ft
Optional working area
2000*6000*200mm 6*20ft
Spindle power
3.0 kW, water-cooled
Table surface
Vacuum table + T-slots
Max. travel speed
30m/min
Spindle speed
6000*24000RPM
Operating voltage
AC 220 V or 380 V / 50 Hz / 3-phase; 220 V / 1-phase / 50 Hz
Control system
Richauto A11 DSP control system
Interface
USB
Software compatibility
BCAMPRO / VCarve / VCarve Pro / ArtCAM / UCANCAM, etc.

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.
