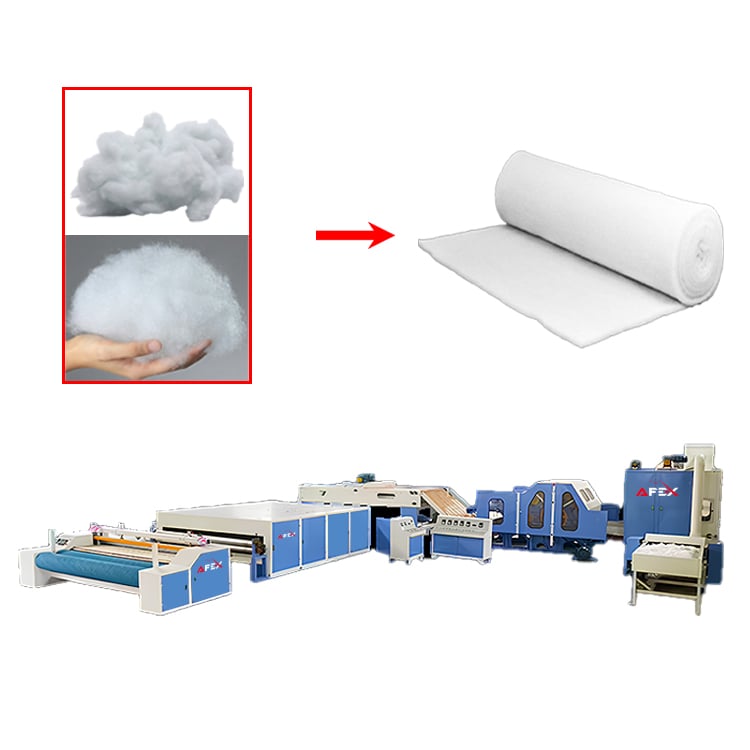

1 / 9Polyester Fiber Wadding Roll Production Line
Our production line, built on modern technology, produces high-quality polyester fiber wadding in rolls.
- Power
- 8.5 kW
- Voltage
- 380 V
- Dimensions
- 3800×1650×1050 mm
- Weight
- 900 kg
- Output width
- 3200 mm
- Cylinder diameter
- 400 mm
Overview
About the equipment
Our production line, built on modern technology, produces high-quality polyester fiber wadding in rolls. The process is fully automated: the raw material is spread, the edges are precisely trimmed, the material is cut to the set length and the finished product is wound into rolls. A reliable, cost-effective and efficient solution.
General technical data
-
Production capacity: approx. 100–150 kg per hour
-
Finished product width (maximum): 2800 mm
-
Wadding density (without low-melt fibers): 80–400 GSM
-
Required space: 18 × 10 × 3.5 m
- Required power supply: 380 V, 50/60 Hz
-
Total power consumption: approx. 103 kW
-
Number of workers: 3–4
The line offers high productivity and is a cost-effective and efficient solution for wadding production.

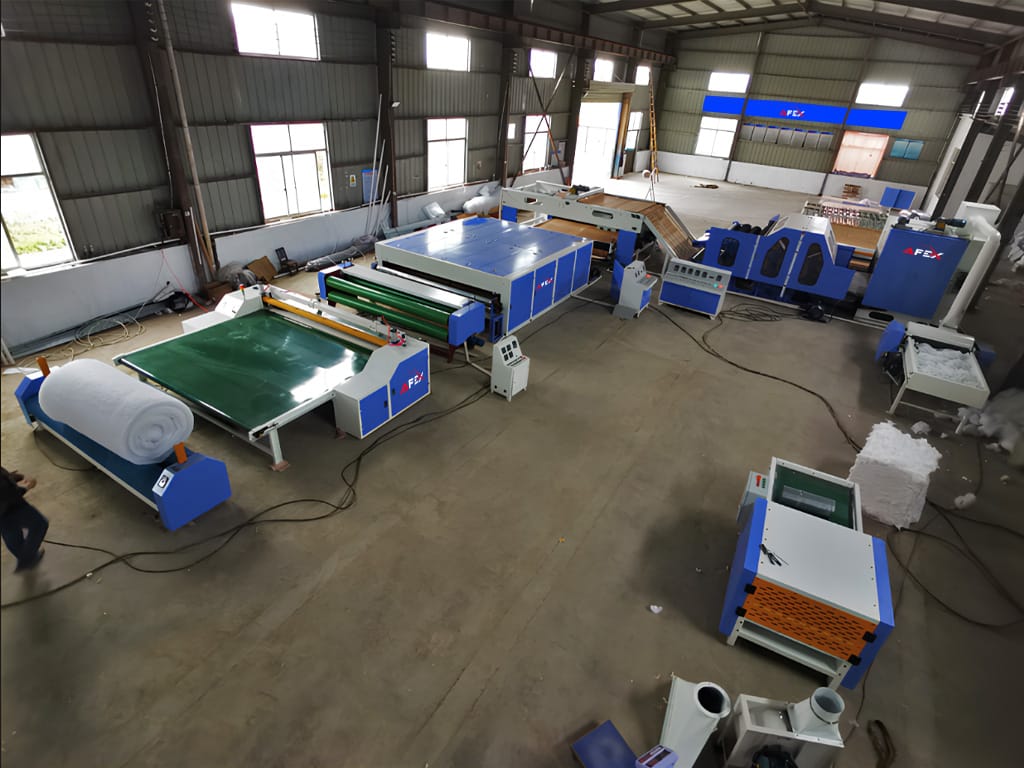

Process overview
Fiber opening → Feeding → Carding → Cross-lapping → Thermal bonding → Cutting and roll winding.
The raw material — polyester fiber — is opened in this machine and made airy and soft. At this stage the fibers are separated from each other and prepared for the next process.
Technical specifications

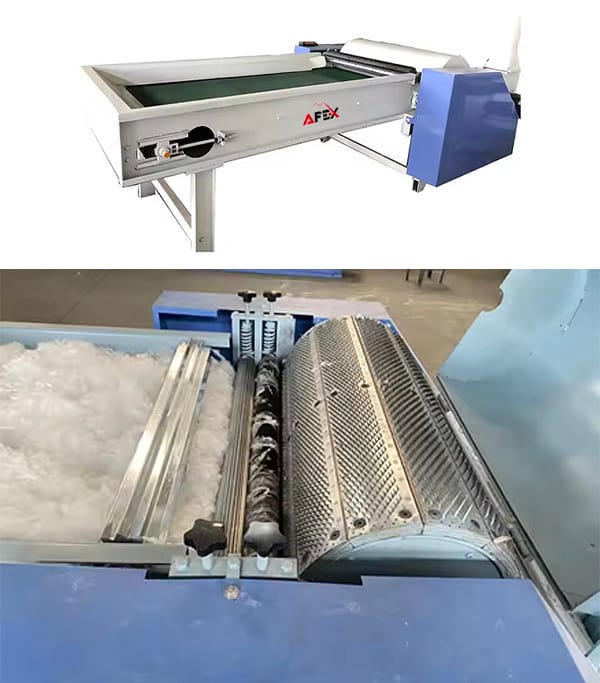

Fiber opening machine
- Voltage
- 380 V, 50 Hz
- Power
- 8.5 kW
- Cylinder diameter
- 400 mm
- Working width
- 960 mm
- Dimensions
- 3800×1650×1050 mm
- Weight
- 900 kg

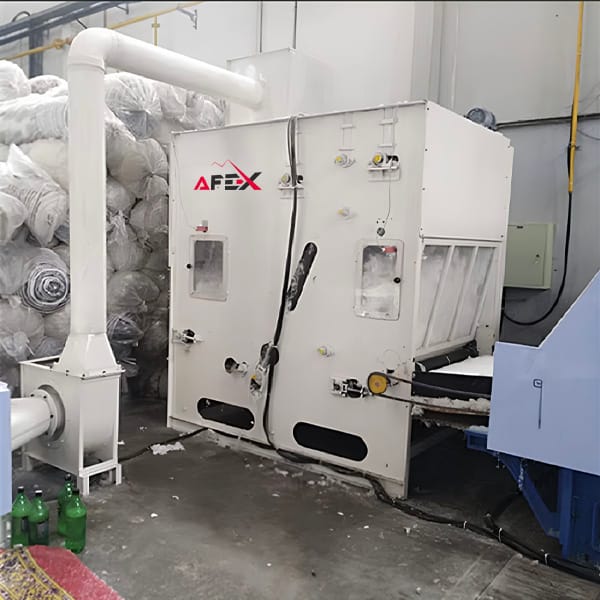

Feeding machine
- Voltage
- 380 V, 50 Hz
- Power
- 2.6 kW
- Working width
- 1360 mm
- Dimensions
- 2700×1950×2950 mm
- Weight
- 1000 kg

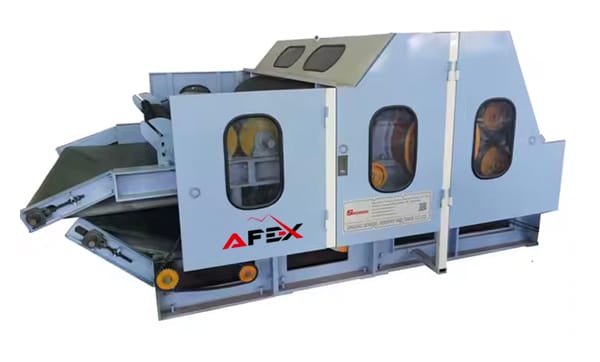

Carding machine
- Voltage
- 380 V, 50 Hz
- Power
- 11.9 kW
- Working width
- 1550 mm
- Cylinder diameter
- 850 mm
- Dimensions
- 3480 × 2250 × 1600 mm
- Weight
- 4500 kg

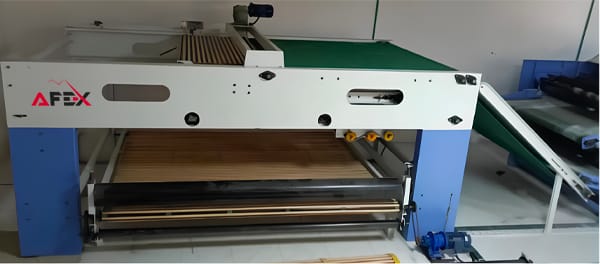

Cross-lapper
- Voltage
- 380 V, 50 Hz
- Power
- 6 kW
- Input width
- 2200 mm
- Output width
- 3200 mm
- Web laying speed
- ≤ 40 m/min
- Dimensions
- 6050 × 2150 × 2100 mm
- Weight
- 1200 kg

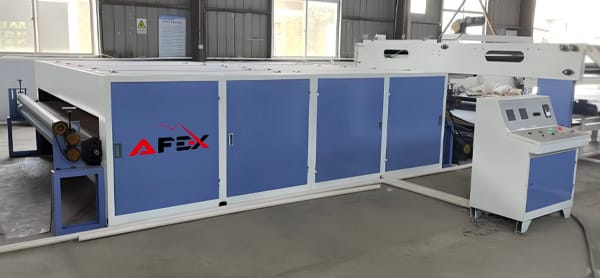

Electric oven
- Voltage
- 380 V, 50 Hz
- Power
- 2.2 × 30 + 2.2 kW
- Dimensions
- 3000×5501×250 mm
- Weight
- 1800 kg

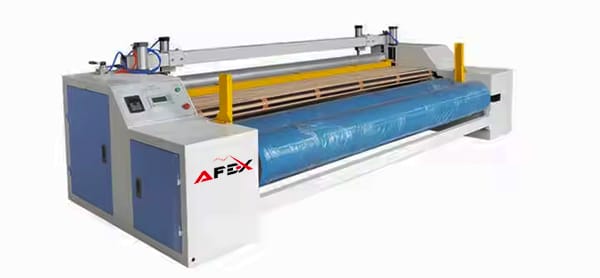

Cutting and roll winding machine
- Voltage
- 380 V, 50 Hz
- Power
- 5 kW
- Dimensions
- 4100×2100×1150 mm
- Weight
- 1800 kg
Finished product
Operation video
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPolyester Fiber Wadding Roll Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Fiber opening machine
6 parameters- Voltage
- 380 V, 50 Hz
- Power
- 8.5 kW
- Cylinder diameter
- 400 mm
- Working width
- 960 mm
- Dimensions
- 3800×1650×1050 mm
- Weight
- 900 kg
Feeding machine
5 parameters- Voltage
- 380 V, 50 Hz
- Power
- 2.6 kW
- Working width
- 1360 mm
- Dimensions
- 2700×1950×2950 mm
- Weight
- 1000 kg
Carding machine
6 parameters- Voltage
- 380 V, 50 Hz
- Power
- 11.9 kW
- Working width
- 1550 mm
- Cylinder diameter
- 850 mm
- Dimensions
- 3480 × 2250 × 1600 mm
- Weight
- 4500 kg
Cross-lapper
7 parameters- Voltage
- 380 V, 50 Hz
- Power
- 6 kW
- Input width
- 2200 mm
- Output width
- 3200 mm
- Web laying speed
- ≤ 40 m/min
- Dimensions
- 6050 × 2150 × 2100 mm
- Weight
- 1200 kg
Electric oven
4 parameters- Voltage
- 380 V, 50 Hz
- Power
- 2.2 × 30 + 2.2 kW
- Dimensions
- 3000×5501×250 mm
- Weight
- 1800 kg
Cutting and roll winding machine
4 parameters- Voltage
- 380 V, 50 Hz
- Power
- 5 kW
- Dimensions
- 4100×2100×1150 mm
- Weight
- 1800 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
- 02
- 03
- 04
- 05
- 06
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
