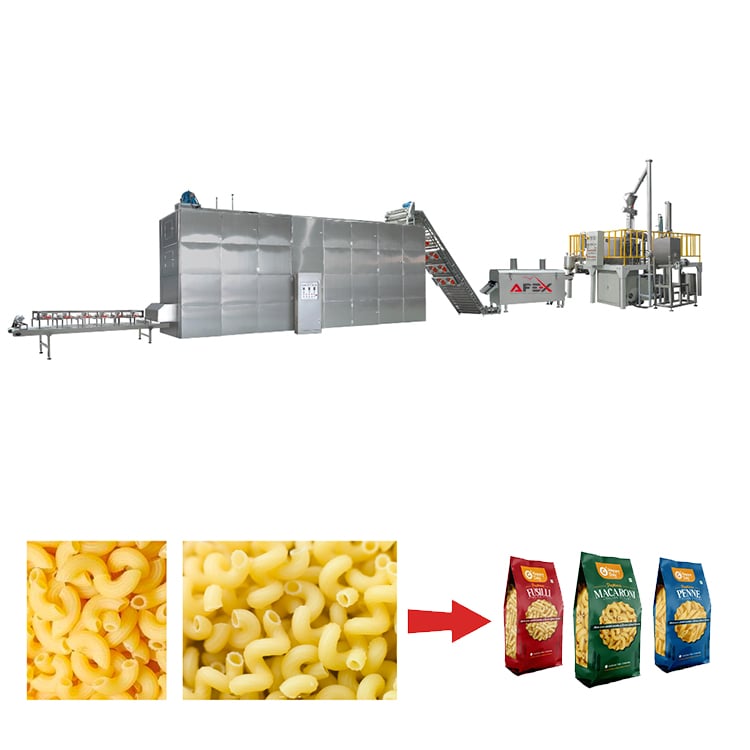

1 / 8Pasta Production Line AF-220
This macaroni and pasta production line is designed to produce pasta and macaroni products of various shapes from high-quality wheat flour.
Individual offer
- Production capacity
- 160–220 kg/h
- Voltage/power
- 380 V
- Power consumption
- ~35–40 kWh per hour
- Equipment weight
- ~2200 kg
- Dimensions
- 20 m × 5 m × 4 m
- Packaging speed
- 90 pcs/min
Price
Overview
Key features
- Dimensions
Approx. 20 m × 5 m × 4 m (total floor space required ~100 m²)
- Sewerage required
Yes (for water mixing and cleaning)
About the equipment
This macaroni and pasta production line is designed to produce pasta and macaroni products of various shapes from high-quality wheat flour. The line includes equipment for raw material mixing, vacuum processing, extrusion, drying, cooling and packaging.
Advantages:
-
High efficiency: production capacity of 160–220 kg/h
-
Automated process – minimal labor required
-
Energy-saving drying system
-
Hygienic, safe and high-quality products
-
Ability to produce pasta in various shapes
Who can purchase it?
-
Food manufacturers
-
Small and medium business owners
-
Large pasta factories
-
Producers supplying supermarkets and food retail chains
01
14 parametersGeneral
- Parameter
- Value
- Equipment name
- Macaroni/pasta production line
- Country of manufacture
- China
- Raw materials
- Wheat flour, water
- Product type
- Macaroni, pasta (various shapes)
- Production capacity
- 160–220 kg/h
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~2200 kg (entire line)
- Dimensions
- Approx. 20 m × 5 m × 4 m (total floor space required ~100 m²)
- Voltage/power
- 380 V / 50 Hz / Total power ≈ 43 kW
- Operators
- 2–3 people
- Power consumption
- ~35–40 kWh per hour
- Gas consumption
- Not required (electric heating)
- Sewerage required
- Yes (for water mixing and cleaning)
Equipment included
02

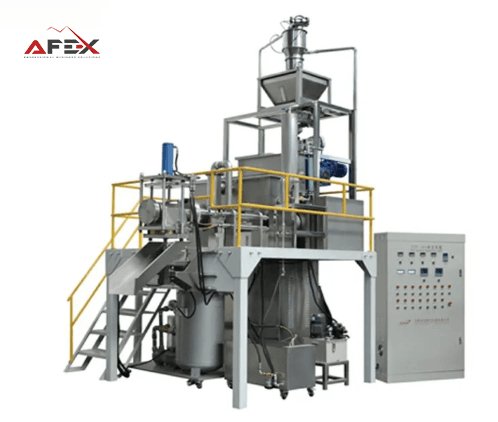

9 parametersDough Mixing and Extruding Unit
- Parameter
- Value
- Equipment name
- High-speed mixer and extrusion unit
- Country of manufacture
- China
- Raw materials
- Wheat flour, water
- Product type
- Macaroni / pasta dough
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~1500 kg
- Dimensions
- 4 × 3.55 × 4 m
- Voltage/power
- 380 V / 50 Hz / 22 kW
03

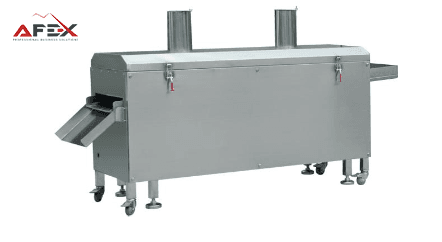

9 parametersScrew Conveyor
- Parameter
- Value
- Equipment name
- Screw conveyor (pasta dryer)
- Country of manufacture
- China
- Raw materials
- Fresh (wet) pasta
- Product type
- Dried pasta
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~600 kg
- Dimensions
- 2.1 × 0.75 × 1.3 m
- Voltage/power
- 380 V / 50 Hz / 6.5 kW
04

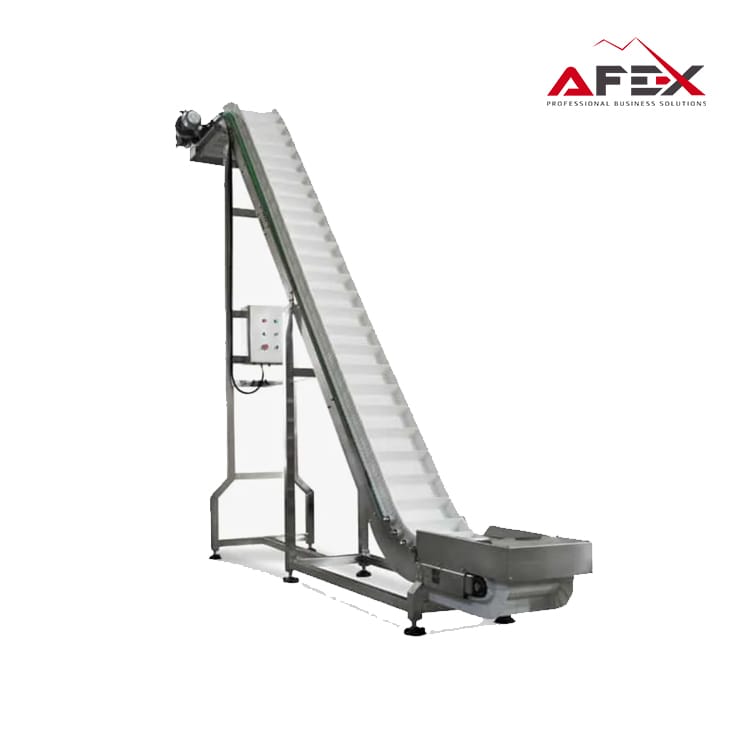

9 parametersBelt Conveyor
- Parameter
- Value
- Equipment name
- Belt conveyor
- Country of manufacture
- China
- Raw materials
- Fresh (wet) pasta
- Product type
- Conveying pasta ready for drying
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~400 kg
- Dimensions
- 3.5 × 1.1 × 3.5 m
- Voltage/power
- 380 V / 50 Hz / 0.75 kW
05

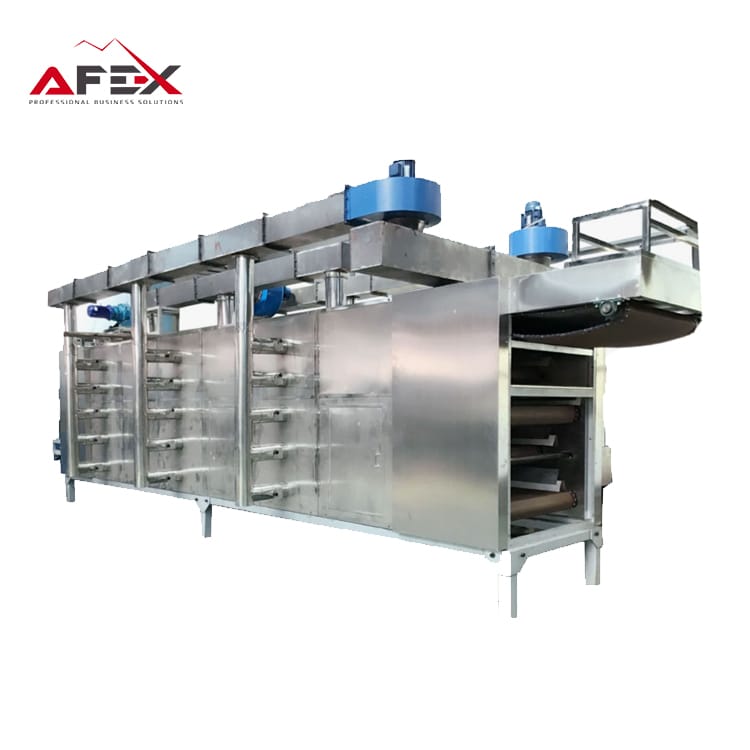

9 parametersDrying Oven
- Parameter
- Value
- Equipment name
- Pasta drying oven
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Pasta drying
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~2500 kg
- Dimensions
- 9.8 × 5 × 3.2 m
- Voltage/power
- 380 V / 50 Hz / 8.38 kW
06

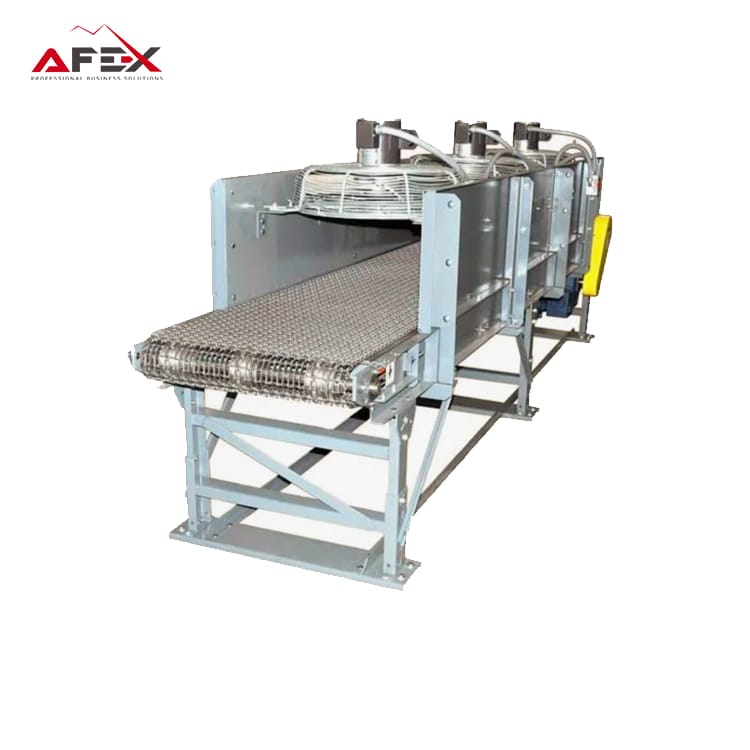

9 parametersCooling Conveyor
- Parameter
- Value
- Equipment name
- Cooling conveyor
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Pasta cooling and conveying
- Material
- Stainless steel (304 SS)
- Equipment weight
- 220 kg
- Dimensions
- 5 × 0.93 × 1.3 m
- Voltage/power
- 380 V / 50 Hz / 2 kW
07

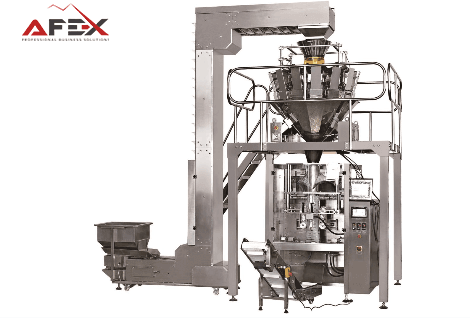

11 parametersPackaging Equipment
- Parameter
- Value
- Equipment name
- Packaging machine
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Automatic pillow bag packaging
- Material
- Stainless steel
- Dimensions
- 1400 × 970 × 1700 mm
- Voltage/power
- 220 V / 50-60 Hz / 3 kW
- Packaging speed
- 15 – 90 pcs/min
- Bag size
- Length: 50–300 mm, width: 60–200 mm
- Air consumption
- 0.4 m³/min, 0.6 MPa
FINISHED PRODUCTS
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPasta Production Line AF-220Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
01
General
14 parameters- Parameter
- Value
- Equipment name
- Macaroni/pasta production line
- Country of manufacture
- China
- Raw materials
- Wheat flour, water
- Product type
- Macaroni, pasta (various shapes)
- Production capacity
- 160–220 kg/h
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~2200 kg (entire line)
- Dimensions
- Approx. 20 m × 5 m × 4 m (total floor space required ~100 m²)
- Voltage/power
- 380 V / 50 Hz / Total power ≈ 43 kW
- Operators
- 2–3 people
- Power consumption
- ~35–40 kWh per hour
- Gas consumption
- Not required (electric heating)
- Sewerage required
- Yes (for water mixing and cleaning)
Dough Mixing and Extruding Unit
9 parameters- Parameter
- Value
- Equipment name
- High-speed mixer and extrusion unit
- Country of manufacture
- China
- Raw materials
- Wheat flour, water
- Product type
- Macaroni / pasta dough
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~1500 kg
- Dimensions
- 4 × 3.55 × 4 m
- Voltage/power
- 380 V / 50 Hz / 22 kW
Screw Conveyor
9 parameters- Parameter
- Value
- Equipment name
- Screw conveyor (pasta dryer)
- Country of manufacture
- China
- Raw materials
- Fresh (wet) pasta
- Product type
- Dried pasta
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~600 kg
- Dimensions
- 2.1 × 0.75 × 1.3 m
- Voltage/power
- 380 V / 50 Hz / 6.5 kW
Belt Conveyor
9 parameters- Parameter
- Value
- Equipment name
- Belt conveyor
- Country of manufacture
- China
- Raw materials
- Fresh (wet) pasta
- Product type
- Conveying pasta ready for drying
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~400 kg
- Dimensions
- 3.5 × 1.1 × 3.5 m
- Voltage/power
- 380 V / 50 Hz / 0.75 kW
Drying Oven
9 parameters- Parameter
- Value
- Equipment name
- Pasta drying oven
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Pasta drying
- Material
- Stainless steel (304 SS)
- Equipment weight
- ~2500 kg
- Dimensions
- 9.8 × 5 × 3.2 m
- Voltage/power
- 380 V / 50 Hz / 8.38 kW
Cooling Conveyor
9 parameters- Parameter
- Value
- Equipment name
- Cooling conveyor
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Pasta cooling and conveying
- Material
- Stainless steel (304 SS)
- Equipment weight
- 220 kg
- Dimensions
- 5 × 0.93 × 1.3 m
- Voltage/power
- 380 V / 50 Hz / 2 kW
Packaging Equipment
11 parameters- Parameter
- Value
- Equipment name
- Packaging machine
- Country of manufacture
- China
- Raw materials
- Pasta
- Product type
- Automatic pillow bag packaging
- Material
- Stainless steel
- Dimensions
- 1400 × 970 × 1700 mm
- Voltage/power
- 220 V / 50-60 Hz / 3 kW
- Packaging speed
- 15 – 90 pcs/min
- Bag size
- Length: 50–300 mm, width: 60–200 mm
- Air consumption
- 0.4 m³/min, 0.6 MPa
