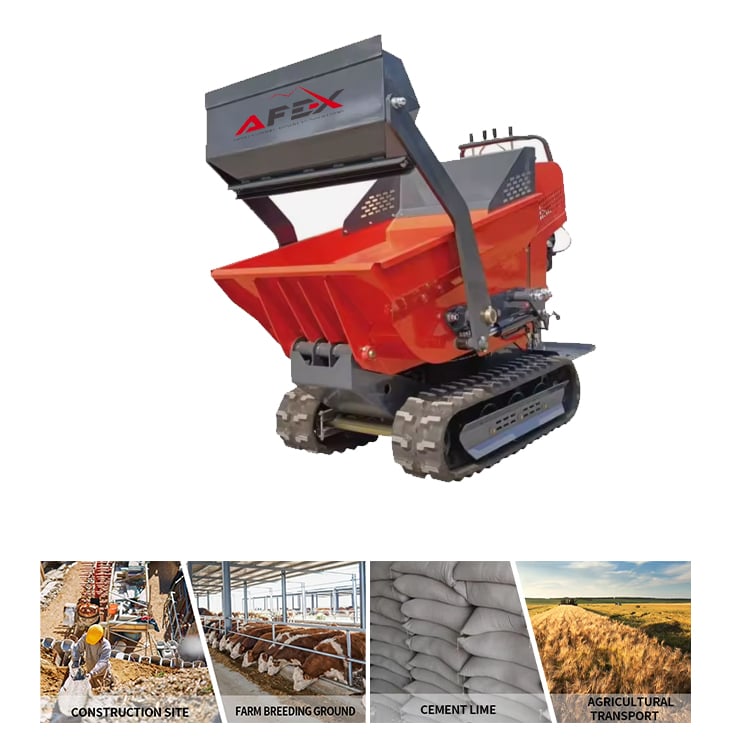

1 / 2Multi-Purpose Mini Cargo Dumper
The GEAR-500 is a multifunctional tracked mini dumper designed for construction sites, farms, gardening and landscaping.
- Engine power
- 6.5 HP
- Fuel tank capacity
- 3.6 L
- Model
- GEAR-500
- Net weight
- 414 kg
- Ground contact length
- 900 mm
- Machine dimensions
- 2050 × 880 × 1300 mm
Overview
Key advantages
- Carries loads of up to 500 kg
- Hydraulic tipping system makes unloading easy
- Tracked chassis moves well on uneven and muddy ground
- Equipped with a powerful Briggs & Stratton engine
- Can operate on slopes of up to 20°
- Compact dimensions allow work in confined spaces
About the equipment
The GEAR-500 is a multifunctional tracked mini dumper designed for construction sites, farms, gardening and landscaping. It is used to transport soil, sand, gravel, construction waste, fertilizer and other loads. Thanks to its tracked undercarriage, the machine moves steadily even on uneven, muddy and difficult terrain. The hydraulic tipping system allows loads to be unloaded quickly and easily, significantly increasing productivity. A 500 kg load capacity and a 200 dm³ body make it an ideal solution for small and medium-sized hauling tasks.
General
- Model
- GEAR-500
- Engine type
- Briggs & Stratton
- Engine power
- 6.5 HP
- Rated power
- 6.5 HP / 3600 rpm
- Fuel tank capacity
- 3.6 L
- Net weight
- 414 kg
- Maximum load
- 500 kg
- Body volume
- 200 dm³
- Chassis width
- 700 mm
- Track width
- 180 mm
- Ground contact length
- 900 mm
- Tipping type
- Hydraulic
- Tipping angle
- 90°
- Climbing ability
- 20°
- Machine dimensions
- 2050 × 880 × 1300 mm
Applications
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentMulti-Purpose Mini Cargo DumperYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
15 parameters- Model
- GEAR-500
- Engine type
- Briggs & Stratton
- Engine power
- 6.5 HP
- Rated power
- 6.5 HP / 3600 rpm
- Fuel tank capacity
- 3.6 L
- Net weight
- 414 kg
- Maximum load
- 500 kg
- Body volume
- 200 dm³
- Chassis width
- 700 mm
- Track width
- 180 mm
- Ground contact length
- 900 mm
- Tipping type
- Hydraulic
- Tipping angle
- 90°
- Climbing ability
- 20°
- Machine dimensions
- 2050 × 880 × 1300 mm
