Marker production line
The automatic marker pen production line is a high-efficiency and fully automated solution that includes molding, assembly, decoration (hot stamping), and testing processes. The line is suitable for manufacturers ranging from small workshops to large factories.
Marker Production Process
-
Raw Material Preparation
-
Plastic granules (ABS or PP): for the marker body, cap, and cover parts.
-
Writing ink: alcohol-based or water-based inks.
-
Filter material: made of polyester, holds the ink.
-
Writing tip (nib): usually acrylic or fiber material.
-
Body Manufacturing (Injection Molding)
-
Plastic granules are heated and injected into molds.
-
Marker body, cap, back cover, and other parts are produced.
-
Each part is separated with cooling and ejection systems.
-
Filter & Nib Preparation
-
Filters (ink reservoirs) are cut and shaped from textile material.
-
Writing tips are cut and shaped into cones.
-
Ink Filling
-
Filters are filled with ink by automatic machines.
-
Filled filters are dried or directly sent to assembly.
-
Marker Assembly
-

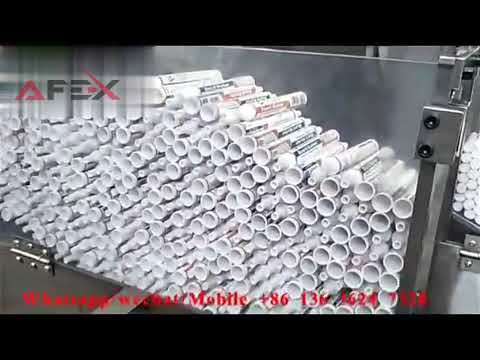

On the automatic assembly line, body, ink-filled filter, nib, back cover, and cap are combined.
-
Defective markers are automatically removed with sensor control.
-
Brand Printing (Hot stamping / Silk printing)
-
Logos or designs are printed on the marker body.
-
Quality Control
-
Visual inspection, ink flow test, and cap tightness test.
-
Packaging
-
Markers are packed in boxes, palletized, and prepared for shipment.
| Parameter Name | Information |
| Model | RD-300 |
| Country | China |
| Raw Materials | Plastic granules (PP, PE), ink, fiber stick, marker tip, transfer film |
| Product Type | Whiteboard markers |
| Capacity | 60–70 pcs/min |
| Material | Steel, stainless components, aluminum, industrial plastic |
| Weight | Assembly machine: 1200 kg, total: ~5–6 tons |
| Dimensions | Assembly: 1.8 × 1.2 × 1.7 m, Injection machine: 4.75 × 1.3 × 1.65 m |
| Voltage/Power | 380V / 3 phase / 50Hz, ≈ 25–30 kW |
| Labor | 1–2 persons |
| Energy Use | 20–25 kW average |
| Gas Use | None |
| Drainage | Not required, but water cooling system available |
Automatic Assembly Machine
| Parameter Name | Information |
| Operation Type | Fully automatic |
| Speed | 60–70 pcs/min |
| Power | 1.5 kW / 380V / 3 phase / 50Hz |
| Air Pressure | 5–6 kgf/cm² |
| Operators | 1 person |
| Dimensions | 1.8 × 1.2 × 1.7 m |
| Weight | 1200 kg |
Hot Stamping Machine
| Parameter Name | Information |
| Stamping Area | 30 × 160 mm |
| Diameter Range | 8–30 mm |
| Roller Size | Inner Ø50 mm, Outer Ø100 mm |
| Heating Power | 2000 W |
| Transfer Time | 0–99 sec |
| Film Collecting Time | 0–99 sec |
| Voltage | 220V, 50Hz (16A) |
| Max Pressure | 100–250 kgf |
| Speed | 60 pcs/min |
| Weight | 500 kg |
| Dimensions | 1200 × 1400 × 1600 mm |
Injection Molding Machine
| Parameter Name | Information |
| Model | RT160 |
| Screw Diameter | 42 / 45 / 48 mm |
| Injection Volume | 265 / 297 / 338 cm³ |
| Shot Weight | 235 / 267 / 308 g |
| Injection Speed | 120 / 135 / 152 g/s |
| Injection Pressure | 200 / 180 / 158 MPa |
| Clamping Force | 1600 KN |
| Opening Stroke | 380 mm |
| Mold Thickness | 200–530 mm |
| Tie-Bar Distance | 460 × 460 mm |
| Motor Power | 15 kW |
| Heating Power | 8.8 kW |
| Dimensions | 4.75 × 1.3 × 1.65 m |
| Weight | 4.5 tons |
Cooling Chiller
| Parameter Name | Information |
| Model | TY-3 ACI |
| Cooling Capacity | 12000 KCal/h |
| Power | 2 kW |
| Pump Power | 0.5 HP |
| Max Water Flow | 80 L/min |
| Water Tank Volume | 80 L |
| Dimensions | 1200 × 600 × 1270 mm |
| Weight | 270 kg |
Automatic Loading Machine
| Parameter Name | Information |
| Model | REF-1.5 |
| Motor Power | 1.1 kW |
| Capacity | 450 kg/h |
| Hopper Volume | 6 L |
| Pipe Size | 1.5 / 1.5 inch |
| Packing Size | 820 × 550 × 525 mm |
| Weight | 50 kg |
Crusher Machine
| Parameter Name | Information |
| Model | RWS300 |
| Power | 5.5 kW |
| Chamber Size | 250 × 300 mm |
| Crushing Capacity | 250–400 kg/h |
| Dimensions | 1240 × 910 × 1310 mm |
| Weight | 390 kg |
Mixer
| Parameter Name | Information |
| Model | FFR-50E |
| Motor Power | 1.5 kW |
| Mixing Capacity | 50 kg / 3 min |
| Weight | 140 kg |
| Dimensions | 790 × 790 × 1115 mm |
