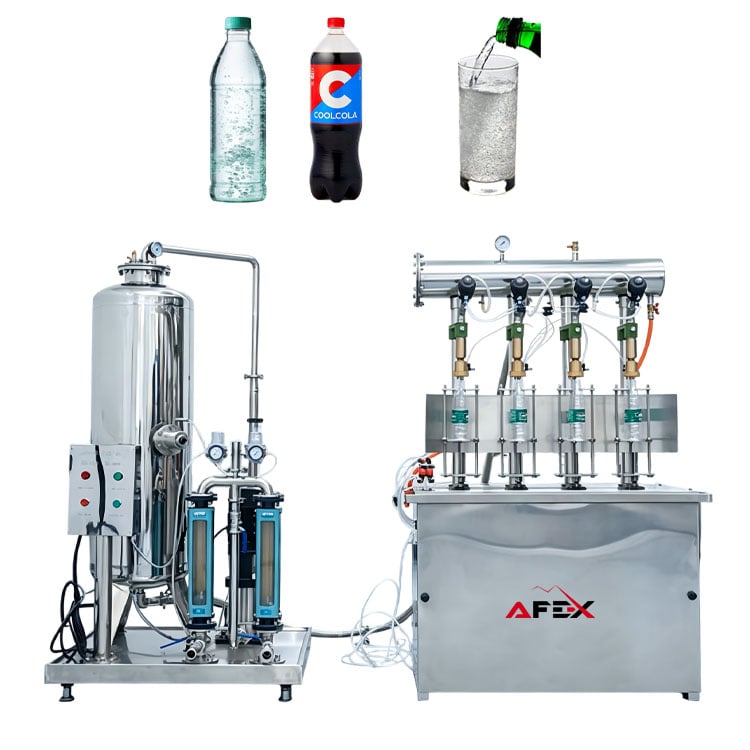

1 / 1Mini Carbonated Drinks Production Equipment
300-500 BPH (bottles per hour) · 1090 × 590 × 1800 mm · 250 kg
Individual offer
- Production capacity
- 300-500 BPH (bottles per hour)
- Overall dimensions
- 1090 × 590 × 1800 mm
- Machine weight
- 250 kg
- Operating temperature
- 4-10°C
- Inlet and outlet diameter
- 32 mm
- Air pressure
- 0.5-0.7 MPa
Price
Overview
Key advantages
- Food-grade stainless steel – all parts in direct contact with the product are made of hygienic, safe material
- Stable and reliable operation – the machine has a well-thought-out design and is well suited to small and medium-sized manufacturers
About the equipment
01
7 parametersGeneral
- Number of filling nozzles
- 4
- Operating temperature
- 4-10°C
- Production capacity
- 300-500 BPH (bottles per hour)
- Inlet and outlet diameter
- 32 mm
- Air pressure
- 0.5-0.7 MPa
- Overall dimensions
- 1090 × 590 × 1800 mm
- Machine weight
- 250 kg
02
13 parametersGeneral
- Production capacity
- 1.5—2 t/h (tons per hour)
- Syrup to water mixing ratio
- 1:2—1:8
- Beverage outlet temperature
- <6°C
- Beverage outlet pressure
- 0.3—0.5 MPa
- Carbon dioxide (gas) content
- 3 G.V
- Production capacity
- 1.5—2 t/h (tons per hour)
- Water inlet pressure
- 0.2 MPa
- Water inlet temperature
- <6°C
- Syrup inlet temperature
- <4°C
- CO2 inlet pressure
- 0.28—0.35 MPa
- CO2 purity
- > 99%
- Machine dimensions
- 950 × 960 × 1920 mm
- Machine weight
- Approx. 200 kg
CO₂ supply:
The equipment requires food-grade CO₂ gas to carbonate water and beverages. CO₂ is not included with the equipment and is purchased separately by the customer in a gas cylinder.
You can also purchase from us the rest of the equipment needed for a complete mini water production line.
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentMini Carbonated Drinks Production EquipmentYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
01
General
7 parameters- Number of filling nozzles
- 4
- Operating temperature
- 4-10°C
- Production capacity
- 300-500 BPH (bottles per hour)
- Inlet and outlet diameter
- 32 mm
- Air pressure
- 0.5-0.7 MPa
- Overall dimensions
- 1090 × 590 × 1800 mm
- Machine weight
- 250 kg
02
General
13 parameters- Production capacity
- 1.5—2 t/h (tons per hour)
- Syrup to water mixing ratio
- 1:2—1:8
- Beverage outlet temperature
- <6°C
- Beverage outlet pressure
- 0.3—0.5 MPa
- Carbon dioxide (gas) content
- 3 G.V
- Production capacity
- 1.5—2 t/h (tons per hour)
- Water inlet pressure
- 0.2 MPa
- Water inlet temperature
- <6°C
- Syrup inlet temperature
- <4°C
- CO2 inlet pressure
- 0.28—0.35 MPa
- CO2 purity
- > 99%
- Machine dimensions
- 950 × 960 × 1920 mm
- Machine weight
- Approx. 200 kg
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
