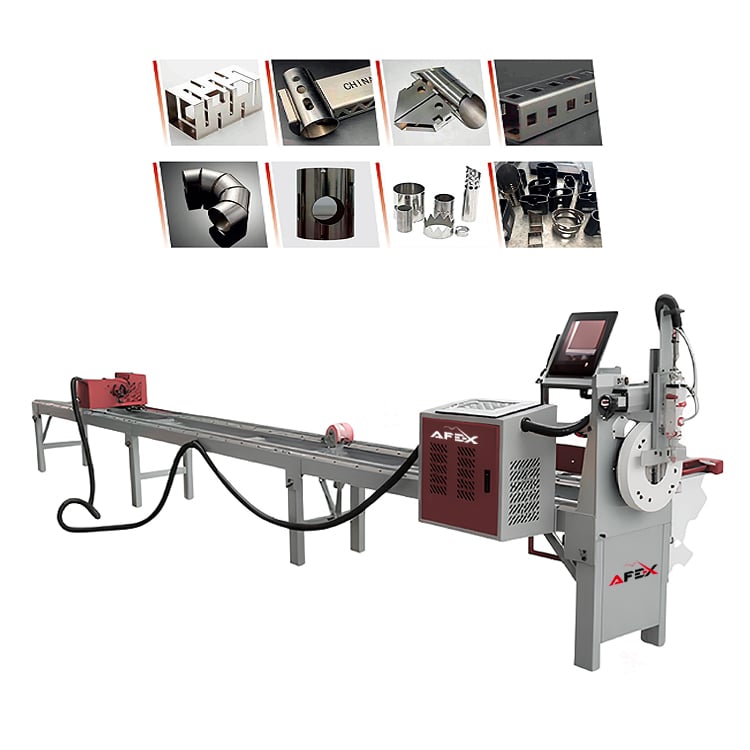

1 / 2Laser Tube Cutting Machine AFL-61T
1500W · 1064 nm · 220V 50Hz
Individual offer
- Laser power
- 1500W
- Laser wavelength
- 1064 nm
- Operating voltage
- 220V 50Hz
- Laser cutting head
- Raytools BT220-3D
- Max. idle travel speed
- 60 rpm
- Working range
- Square tube: 100×100 mm
Price
Overview
Key features
- Working range
Square tube: 100×100 mm, round tube: 120 mm (standard)
- Cutting thickness (1500W)
Carbon steel ≤ 3 mm; Stainless steel ≤ 3 mm
- Cutting thickness (3000W)
Carbon steel ≤ 5 mm; Stainless steel ≤ 5 mm
About the equipment
01
17 parametersGeneral
- Working range
- Square tube: 100×100 mm, round tube: 120 mm (standard)
- Machine length
- 6 meters
- Laser power
- 1500W / 3000W
- Laser generator
- Raycus
- Laser wavelength
- 1064 nm
- Max. idle travel speed
- 60 rpm
- Max. acceleration
- 0.6G
- Cutting thickness (1500W)
- Carbon steel ≤ 3 mm; Stainless steel ≤ 3 mm
- Cutting thickness (3000W)
- Carbon steel ≤ 5 mm; Stainless steel ≤ 5 mm
- Control system
- Fangling 4510H
- Positioning type
- Red dot
- Operating voltage
- 220V 50Hz (1.5 kW); 380V 50Hz (3 kW)
- Assist gas
- Air
- Fiber module service life
- Over 100 000 hours
- Laser cutting head
- Raytools BT220-3D
- Cooling system
- S&A / Hanli industrial water chiller
- Operating environment
- 0–45°C, humidity 45–85%

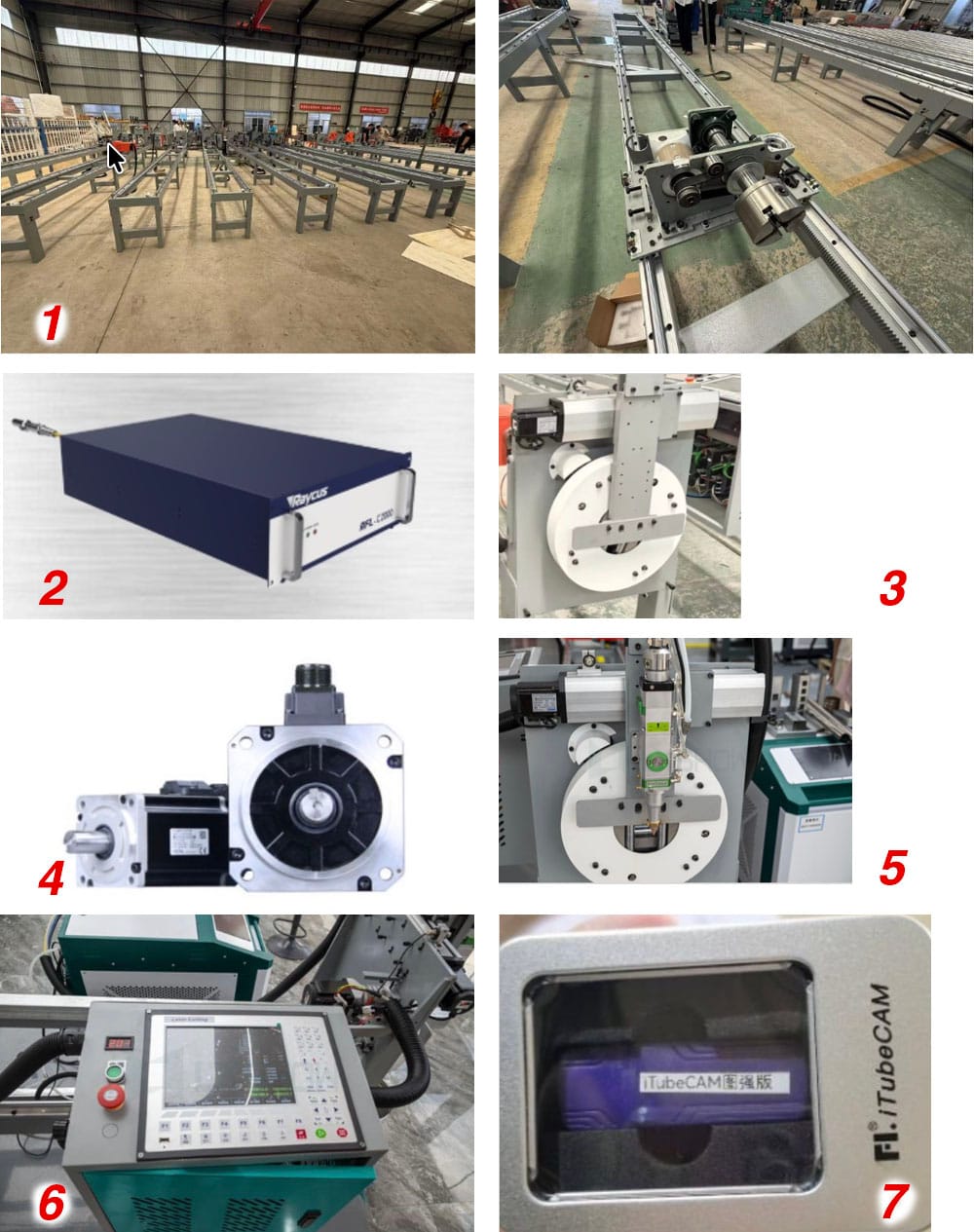

Machine Components
- Machine Frame
- Laser source. Raycus — a world-renowned laser brand High electro-optical conversion efficiency, good beam quality, wide modulation frequency range, high reliability, long service life and maintenance-free operation. Central wavelength 1080 nm ±5.
- Chuck (clamping device that holds the tube). Easy to use, robust and reliable
Large clamping range, secure clamping
Manual front chuck; manual or pneumatic rear chuck; pneumatic operation is supported. - DLX/HCFA Servo Motor
Fast movement, high efficiency and long service life
Internationally renowned brands
Low operating noise and high stability - Raytools Laser Head The renowned Raytools laser cutting head. Manually adjusted, suitable for power of 3000W and below Excellent cutting control capability
- FANGLING Controller The FANGLING controller is a full-featured, open-type control system specially developed for the metalworking industry. Easy to install, convenient to configure, very stable in operation and offers complete solutions.
- Nesting software Allows cutting of tubes of various shapes Channel steel, angle steel: up to 80 mm Supports import of 3D models in STEP format
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLaser Tube Cutting Machine AFL-61TYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
17 parameters- Working range
- Square tube: 100×100 mm, round tube: 120 mm (standard)
- Machine length
- 6 meters
- Laser power
- 1500W / 3000W
- Laser generator
- Raycus
- Laser wavelength
- 1064 nm
- Max. idle travel speed
- 60 rpm
- Max. acceleration
- 0.6G
- Cutting thickness (1500W)
- Carbon steel ≤ 3 mm; Stainless steel ≤ 3 mm
- Cutting thickness (3000W)
- Carbon steel ≤ 5 mm; Stainless steel ≤ 5 mm
- Control system
- Fangling 4510H
- Positioning type
- Red dot
- Operating voltage
- 220V 50Hz (1.5 kW); 380V 50Hz (3 kW)
- Assist gas
- Air
- Fiber module service life
- Over 100 000 hours
- Laser cutting head
- Raytools BT220-3D
- Cooling system
- S&A / Hanli industrial water chiller
- Operating environment
- 0–45°C, humidity 45–85%
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Metalworking equipment

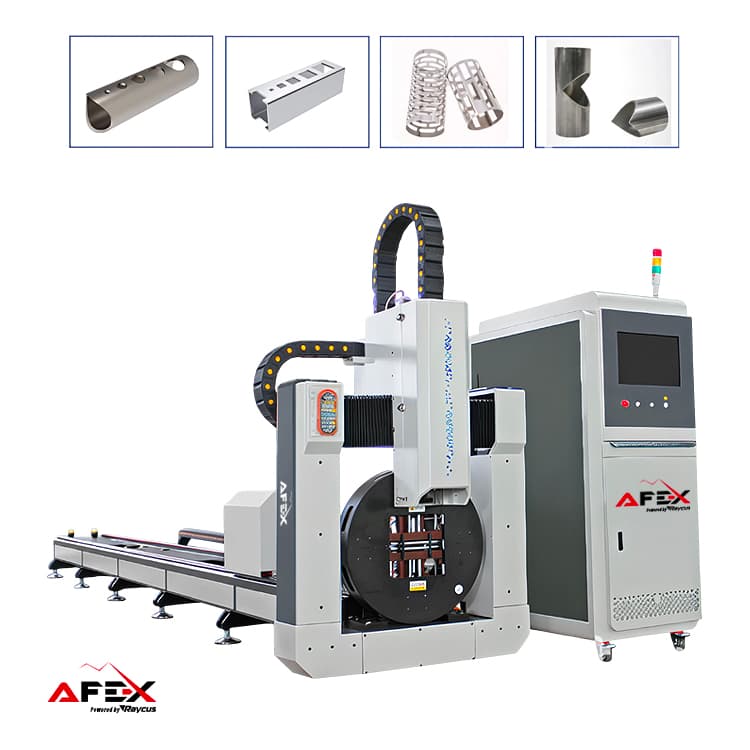

Laser Tube Cutting Machine ALT-6024
