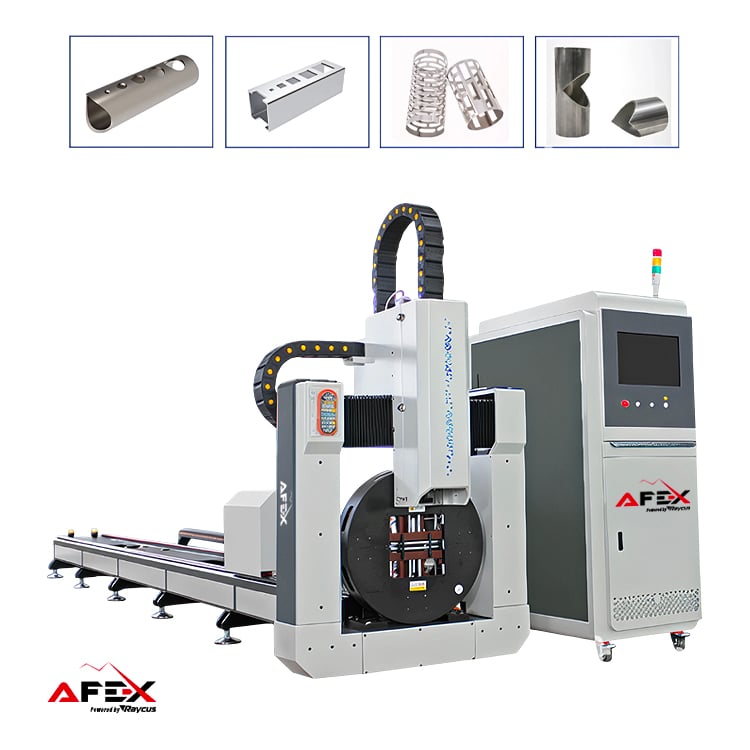

1 / 3Laser Tube Cutting Machine ALT-6024
In addition to metal tubes, this machine can also cut metal profiles.
Individual offer
- Power
- ≤9.3 kW
- Laser Source
- Raycus 1.5 kW
- Voltage
- 380V 50/60 Hz
- Laser Source Service Life
- 100,000 hours
- Laser Head
- RayTools BS03K CAT 3D
- Maximum Head Travel Speed
- 80–110 m/min
Price
Overview
About the equipment
In addition to metal tubes, this machine can also cut metal profiles.
01
22 parametersGeneral
- Voltage
- 380V 50/60 Hz
- Power
- ≤9.3 kW
- Laser Source
- Raycus 1.5 kW / 3 kW
- Laser Source Service Life
- 100,000 hours
- Working Size
- 6000 mm (Φ10–240 mm)
- Cutting Thickness
- 0.5–10 mm (within standard accuracy)
- Positioning Type
- Red dot pointer
- Maximum Acceleration
- 1G
- Repositioning Accuracy
- Within ±0.01 mm
- Control System
- Raytools X4T
- Laser Head
- RayTools BS03K CAT 3D
- Maximum Head Travel Speed
- 80–110 m/min
- Assist Gases for Cutting
- Oxygen, nitrogen, compressed air (compressor)
- Lubrication System
- Electric motor-driven
- Water Chiller
- S&A / Hanli brand
- Motor and Drive
- Delta (Taiwan)
- Gearbox
- SHIMPO (Japan)
- Guide Rails
- HIWIN (Taiwan)
- Gear Rack
- YYC (Taiwan)
- Proportional Valve
- SMC (Japan)
- Machine Dimensions
- 7900 × 1100 × 1400 mm
- Machine Weight
- 2100 kg

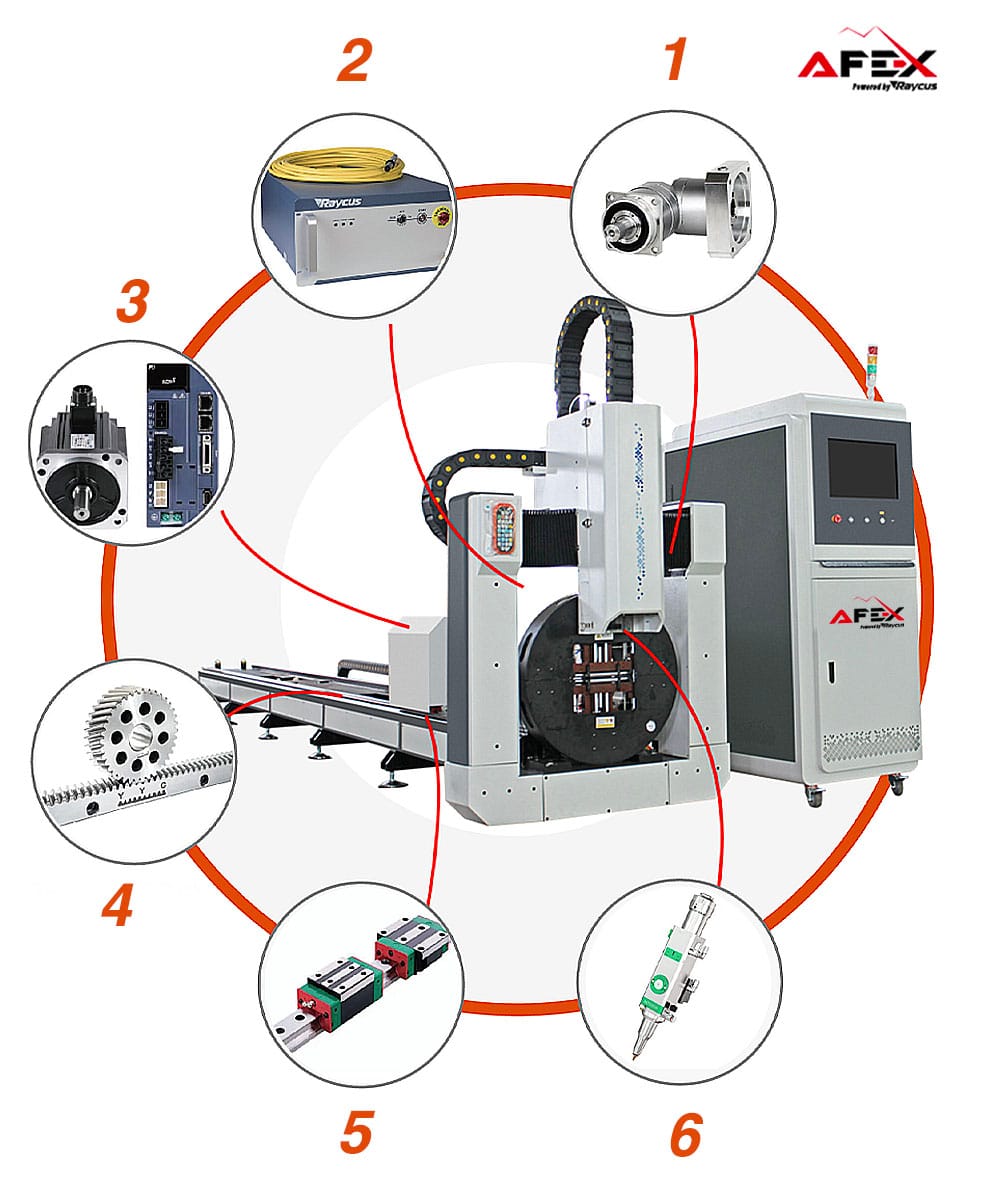

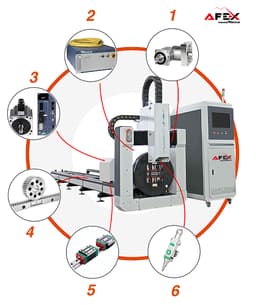

Main Components of the Machine
- Japanese SHIMPO gearbox
- Raycus fiber laser generator
- Delta servo motor driver
- Taiwanese YYC gear rack
- Taiwanese HIWIN linear guide rails
- Raytools BM110 fiber laser head

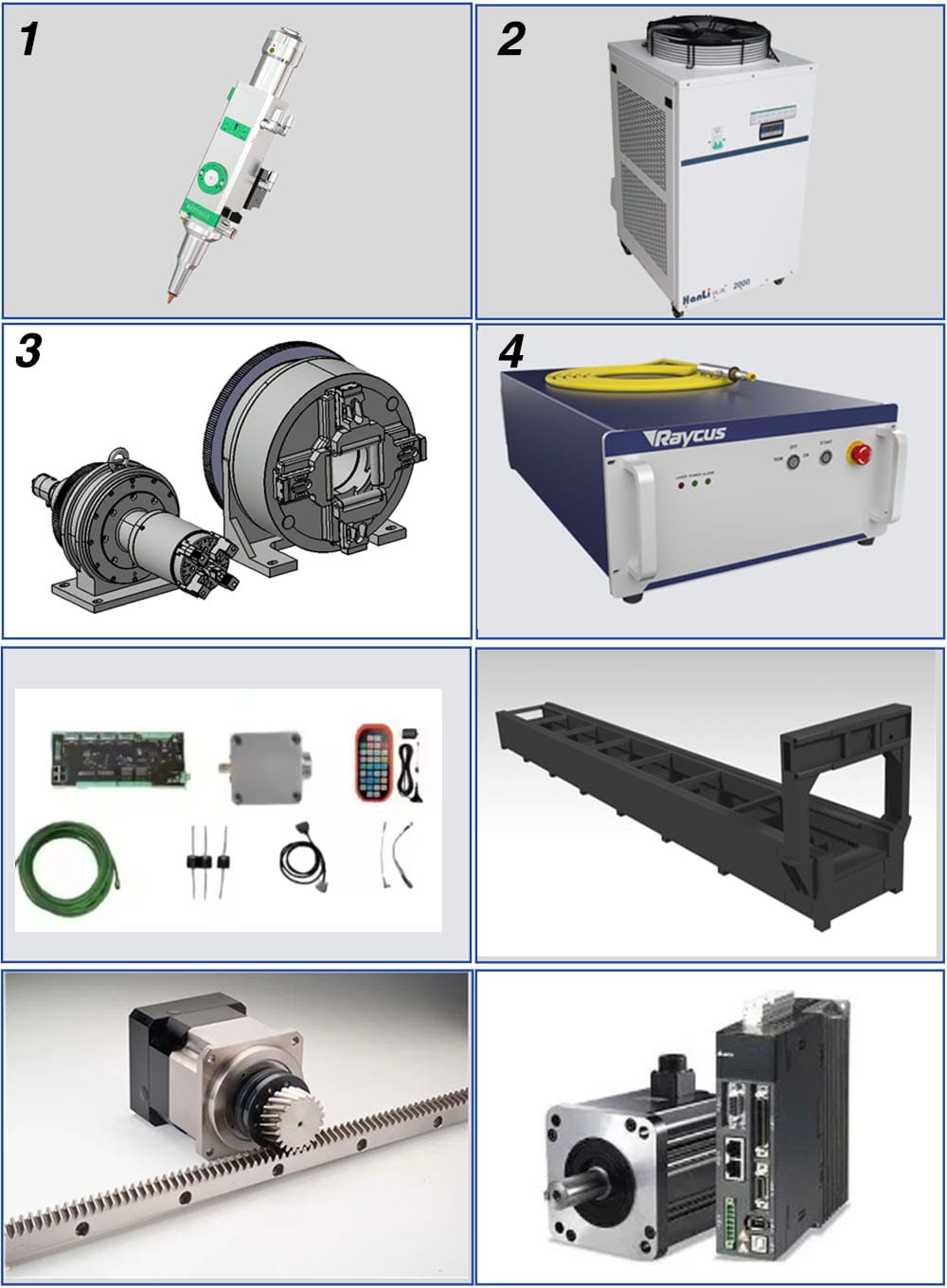

Information on Machine Components
- Raytools Laser Head High stability and good cutting quality, fast piercing and cutting.
- Water Chiller: Hanli or S&A Cools the laser and the cutting head quickly and efficiently, ensuring normal machine operation.
- Chuck The chuck is used for cutting plates and tubes. It uses a pneumatic chuck clamping design on both sides and can center automatically. Diagonal adjustment range: 10–240 mm
- Raycus laser source. High-power, high-quality laser output.
- Control System Raytools X4T cutting software Professional cutting software enables fine cutting with simple operation.
- Frame The integrated mounting frame ensures chuck mobility and stability during high-speed operation. The pneumatic roller support prevents tube sagging and deformation, improves cutting accuracy and extends chuck service life.
- Worktable – Guide Rails and Gear Rack HIWIN linear guide rails and a YYC helical gear rack work together to provide high-precision guidance and smooth motion, significantly improving machine accuracy and stability.
- Delta Motors
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLaser Tube Cutting Machine ALT-6024Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
22 parameters- Voltage
- 380V 50/60 Hz
- Power
- ≤9.3 kW
- Laser Source
- Raycus 1.5 kW / 3 kW
- Laser Source Service Life
- 100,000 hours
- Working Size
- 6000 mm (Φ10–240 mm)
- Cutting Thickness
- 0.5–10 mm (within standard accuracy)
- Positioning Type
- Red dot pointer
- Maximum Acceleration
- 1G
- Repositioning Accuracy
- Within ±0.01 mm
- Control System
- Raytools X4T
- Laser Head
- RayTools BS03K CAT 3D
- Maximum Head Travel Speed
- 80–110 m/min
- Assist Gases for Cutting
- Oxygen, nitrogen, compressed air (compressor)
- Lubrication System
- Electric motor-driven
- Water Chiller
- S&A / Hanli brand
- Motor and Drive
- Delta (Taiwan)
- Gearbox
- SHIMPO (Japan)
- Guide Rails
- HIWIN (Taiwan)
- Gear Rack
- YYC (Taiwan)
- Proportional Valve
- SMC (Japan)
- Machine Dimensions
- 7900 × 1100 × 1400 mm
- Machine Weight
- 2100 kg
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Metalworking equipment

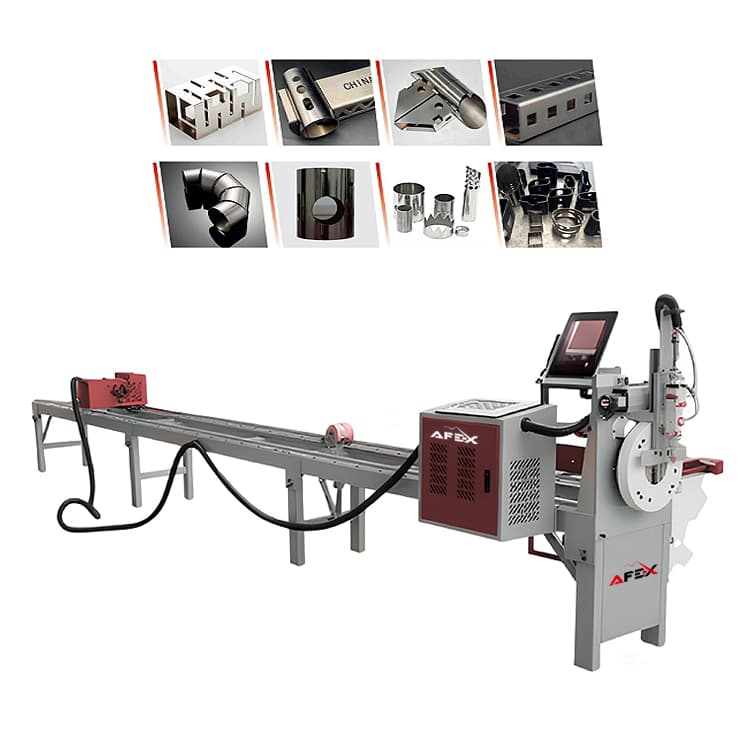

Laser Tube Cutting Machine AFL-61T
