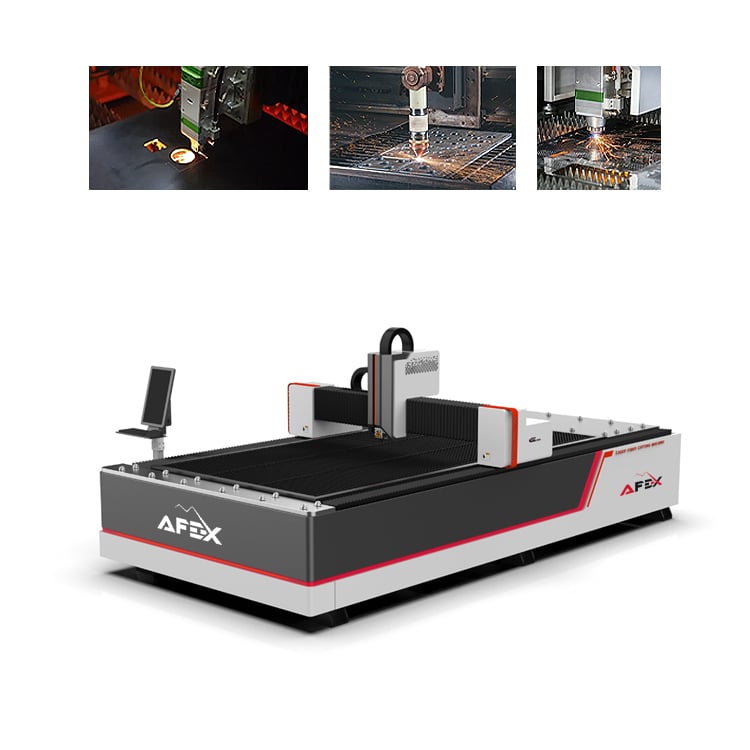

Laser Cutting Machine AF-L3015 1500W

Laser Cutting Machine Components and Additional Equipment

1. Raycus Laser Source
2. Laser head: Raytools BM110
3. Laser control system: Raytools XC3000S
4. HIWIN linear guide (linear guideway)
5. Chiller (water cooler)
6. Automatic lubrication system

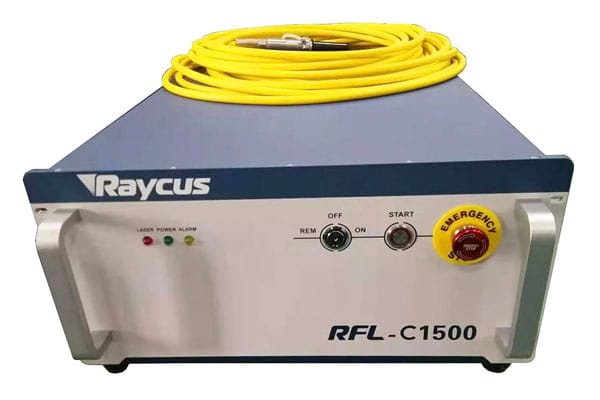

Advantages of the Raycus 1500W Laser Source

1. Energy saving – Consumes up to 30–40% less electricity than conventional CO₂ laser sources. This lowers production costs and delivers economic benefits for the enterprise.

2. High efficiency – The electrical-to-optical conversion efficiency is high (25–30%), which guarantees speed and quality when cutting metal.

3. Excellent cut quality – Cuts steel, stainless steel, aluminum and other metals smoothly and precisely, with no need for additional finishing.

4. Reliability – Stable power output ensures consistent results in production.

5. Easy maintenance – Requires no complex servicing; parts are simple and readily available on the market.

6. Long service life – Laser diodes have an operating life of up to 100 000 hours.

7. Safety systems – Equipped with protection against overheating, voltage fluctuations and other hazardous conditions.

Raytools XC3000S Control System

Overview: Raytools XC3000S is a modern control system designed for laser cutting machines, delivering high precision, speed and stable operation. The system is used for cutting many types of metal materials and is ideal for automated production processes.

Key advantages:

1. Automatic focusing and height control
   – Automatically adjusts the height of the laser head even when the material surface is uneven. This keeps cutting quality consistent.

2. Fast processing
   – Allows even complex shapes to be cut at high speed and with precision.

3. Touchscreen control panel
   – Intuitive interface, convenient menus and easy operation.

4. Stability and safety
   – Features collision protection, automatic gas flow control and high-temperature monitoring.

5. Wide compatibility
   – Can work with laser sources of various power ratings (e.g., Raycus, IPG and others).

6. Energy efficiency
   – Reduces power consumption and optimizes production costs.

7. Easy maintenance
   – Faults in the system can be quickly detected and corrected, so the production process continues without interruption.

Raytools BM110 Laser Head

Overview:
Raytools BM110 is a professional optical head designed for laser cutting of metal. It is intended mainly for use with low- and medium-power (up to 1500W–2000W) fiber laser sources. The BM110 ensures high precision, speed and stability in laser cutting machines.

Key features and advantages:

1. Automatic focusing function
   – Automatically adjusts the laser focus according to the material thickness and surface. This saves production time and improves cut quality.

2. Wide range of applications
   – Used for cutting carbon steel, stainless steel, aluminum, brass and other metal sheets.

3. High precision
   – Delivers the laser beam with minimal loss and produces a very clean cut line.

4. Compact and robust design
   – The BM110 is very lightweight and durable, designed for long-term use.

5. Protection of optical lenses
   – Special protective lenses shield the laser optics from dust, smoke and metal sparks.

6. Gas-assisted cutting
   – Allows various metals to be cut using nitrogen, oxygen or air.

7. Easy maintenance
   – Laser head parts are quick to replace and easy to adjust.

Laser Cutting Machine at Work
