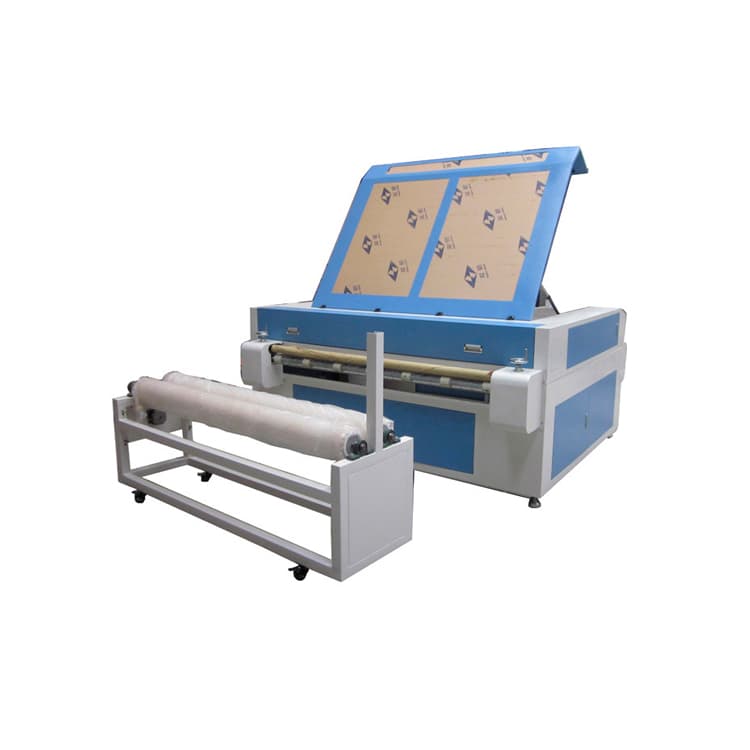

1 / 3Laser equipment for fabric roll AF-LA16*11
AF-LA16*11 is a laser machine with a 1600×1100 mm working area for processing roll fabric.
- Laser tube
- 100W/150W/200W
- Power consumption
- 1,9LKw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- Weight
- 400 Kg
Overview
About the equipment
AF-LA16*11 is a laser machine with a 1600×1100 mm working area for processing roll fabric. It is fitted with a 100, 150 or 200 W RECI laser tube.
The machine cuts parts from roll fabric according to patterns and engraves designs on the fabric surface. Cutting speed is up to 40,000 mm/min and engraving speed up to 60,000 mm/min. Stepper motors drive the motion, control is through RDWorks (Ruida) software, and cutting files are loaded via USB2, USB3 or Wi-Fi.
Power supply is 220 V, 50 Hz, with a consumption of 1.9 kW. The frame is painted ferrous metal; the machine measures 1160×1660×2330 mm and weighs 400 kg. The table can be lowered and removed. The set includes a cooling chiller, an air cooling motor, an exhaust duct, lenses, a USB key, software and cables. It suits cutting rooms in garment and textile workshops and upholstery production.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the fabric type and roll width, and we will recommend a suitable laser power and settings.
General
- Ma+A1:B10nufacturer
- China, Shenzhen
- Work area
- 1600*1100mm
- Power consumption
- 1,9LKw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1160*1660*2330mm
- Laser tube
- 100W/150W/200W (RECI brand)
- Weight
- 400 Kg
- Cooling chillers
- CW5200
- Standard additions
- Cooling air motor, cooling chiller, lenses, air suction pipe, USB key, Operating software, USB cable, Power supply cable
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLaser equipment for fabric roll AF-LA16*11Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
16 parameters- Ma+A1:B10nufacturer
- China, Shenzhen
- Work area
- 1600*1100mm
- Power consumption
- 1,9LKw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1160*1660*2330mm
- Laser tube
- 100W/150W/200W (RECI brand)
- Weight
- 400 Kg
- Cooling chillers
- CW5200
- Standard additions
- Cooling air motor, cooling chiller, lenses, air suction pipe, USB key, Operating software, USB cable, Power supply cable
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
