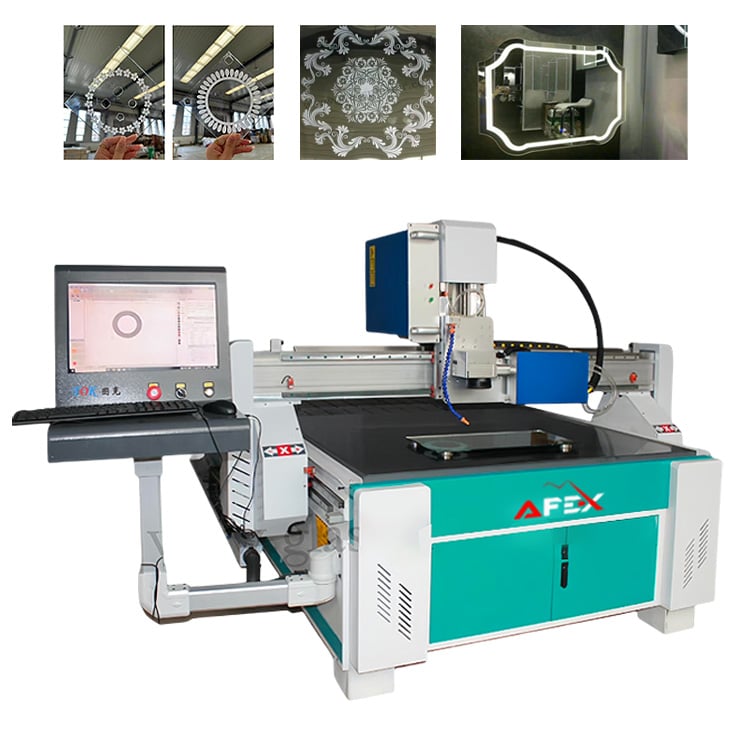

1 / 4Laser Machine for Mirror and Glass Patterning
380V · 120W · ≦±0.002 mm
Individual offer
- Power requirement
- 380V
- Laser power
- 120W
- Laser repeatability
- ≦±0.002 mm
- Model
- T1224
- Laser service life
- 100 000 hours
- Laser wavelength
- 1055–1070 nm
Price
Overview
Key features
- Laser service life
100 000 hours (at 6 hours of use per day, approx. 50 years of service.)
- Motor system
imported laser control system + high-precision servo motor system
- Computer and software
Windows 98, 2000, XP, Win7 64bit, Win10, etc.
About the equipment
Functions (1 machine – 8 functions)
- Smart mirror: backside coating removal, sandblasting, drilling
- Clear glass: sandblasting, drilling, Low-E coating removal
- Stone: engraving
- Metal sheet: engraving
01
16 parametersGeneral
- Model
- T1224
- Processing type
- fiber laser
- Processing size
- from 10x10x1 mm to 1200x2400x50 mm
- Power requirement
- 380V
- Laser power
- 120W
- Laser service life
- 100 000 hours (at 6 hours of use per day, approx. 50 years of service.)
- Laser wavelength
- 1055–1070 nm
- Mechanical repeatability
- ≦±0.25 mm
- Laser repeatability
- ≦±0.002 mm
- Engraving speed
- ≦13000 mm/min
- Motor system
- imported laser control system + high-precision servo motor system
- Computer and software
- Windows 98, 2000, XP, Win7 64bit, Win10, etc.
- Compatible design software
- AutoCAD, CorelDRAW, Type3, Wentai
- Graphic formats
- EPS, DXF, PLT, DR, AI, AC6, etc.
- Machine dimensions
- 3000x2100x900 mm
- Weight
- 1000 kg
02
15 parametersLaser Parameters
- Modulation frequency
- 20Hz–2000Hz
- Spot diameter
- ±7 mm
- Power stability (average power)
- ≦3% RMS
- Power stability (peak power)
- ≦5% RMS
- Beam quality
- M² < 1.35
- Max. drawing speed
- 13000 mm/s
- Character marking speed
- 200 characters/s
- Resolution
- 5 μm
- Repeat marking accuracy
- ±0.0003 mm
- Min. marking line width
- 0.012 mm
- Min. character height
- 0.15 mm
- Working focal distance
- 150±2 mm (75×75 mm)
- Cooling method
- water, 25–28°C
- Maintenance
- not required (maintenance free)
- Roman font
- 1 mm, character height 1 mm
03
9 parametersMechanical Section
- Processing thickness
- 1–50 mm
- Parallel processing accuracy
- ≦±0.25 mm
- Processing speed
- 0–10 m/min
- Scanning/engraving speed
- 0–1300 mm/s
- Laser
- Chuangxin high-precision metal fiber laser generator, operates at full power
- Platform plate
- high-density PVC panel (flatness ≦±0.40 mm/m)
- Frame/guide rail
- square guide rails, helical gearing; well-known domestic brand motors, drivers and guide rails ensure smooth motion, high accuracy and long service life of the machine
- Belt pulley
- Boller brand, made in Germany
- Galvo scanner
- Jinhaichuang, stationary type
Professional Laser Control and Processing Software
High-precision dedicated laser control system made in Taiwan. Runs under the Windows operating system (easy drawing and control). Fully compatible with Wentai engraving, CorelDRAW, AutoCAD and other drawing software. Features automatic laser positioning, graphic scanning and splicing, and automatic correction, ensuring ultra-high scanning accuracy. Features scan path selection for best efficiency, origin complement, and secondary device origin.Applications
Mirror processing
Sandblasting Drilling Backside coating removalMetal sheet processing
Clear glass processing
- Sandblasting
- Drilling
- Low-E coating removal
