1 / 3Laser equipment AF-LA90*60

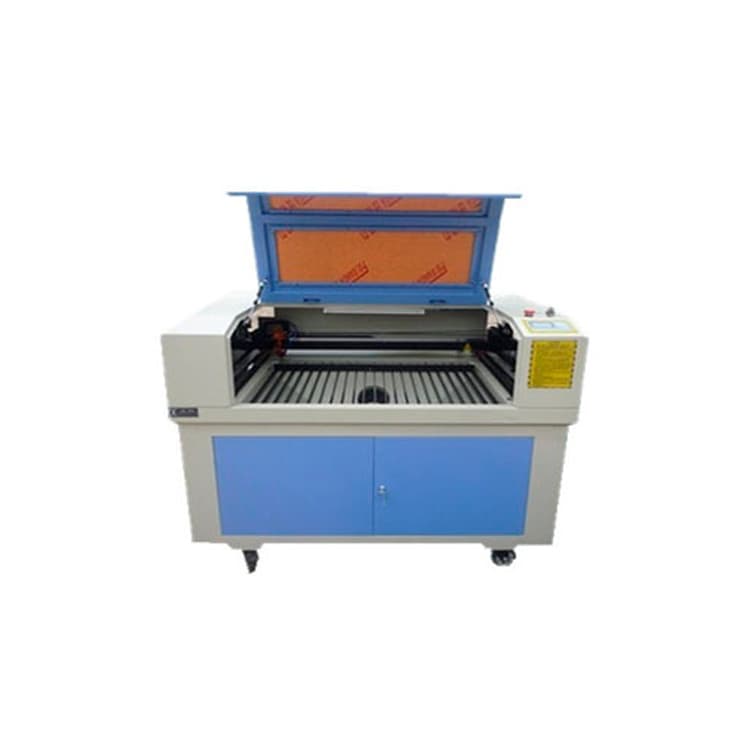

AF-LA90*60 is a laser cutting and engraving machine with an 80 W RECI laser tube.
- Power consumption
- 1.9 Kw/h
- Laser tube
- 80W/100W/150W
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- Weight
- Weight 370 Kg
Overview
About the equipment
AF-LA90*60 is a laser cutting and engraving machine with an 80 W RECI laser tube. It measures 1160×1000×1410 mm and weighs 125 kg.
Cutting speed is up to 40,000 mm/min and engraving speed up to 60,000 mm/min. A CW3000 chiller cools the laser tube, and fumes from the work zone are removed through the exhaust duct. Stepper motors drive the motion, control is through RDWorks (Ruida) software, and files are transferred via USB2, USB3 or Wi-Fi.
The machine runs on 220 V, 50 Hz and consumes 1.9 kW. The frame is painted ferrous metal, and the table height can be lowered. The set also includes an air cooling motor, lenses, a USB key, software, and USB and power cables. Its moderate size and weight make it easy to place in small and medium workshops producing signage, souvenirs and decorative items.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the material type and thickness, and we will tell you whether 80 W is enough for your work.
General
- Manufacturer
- China, Shenzhen
- Power consumption
- 1.9 Kw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1160*1360*1730mm
- Laser tube
- 80W/100W/150W (RECI brand)
- Weight
- Weight 370 Kg
- Cooling chillers
- CW5200
- Standard additions
- Cooling air motor, cooling chiller CW3000, lens, air suction pipe, USB key, Operating software, USB cable, Power supply cable
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLaser equipment AF-LA90*60Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
15 parameters- Manufacturer
- China, Shenzhen
- Power consumption
- 1.9 Kw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1160*1360*1730mm
- Laser tube
- 80W/100W/150W (RECI brand)
- Weight
- Weight 370 Kg
- Cooling chillers
- CW5200
- Standard additions
- Cooling air motor, cooling chiller CW3000, lens, air suction pipe, USB key, Operating software, USB cable, Power supply cable
