1 / 3Laser equipment AF-LA30*40
AF-LA30*40 is a compact laser cutting and engraving machine with a 40 W laser tube.
- Power consumption
- 1,5 Kw/h
- Laser tube
- 40W
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- Weight
- 45 Kg
Overview
About the equipment

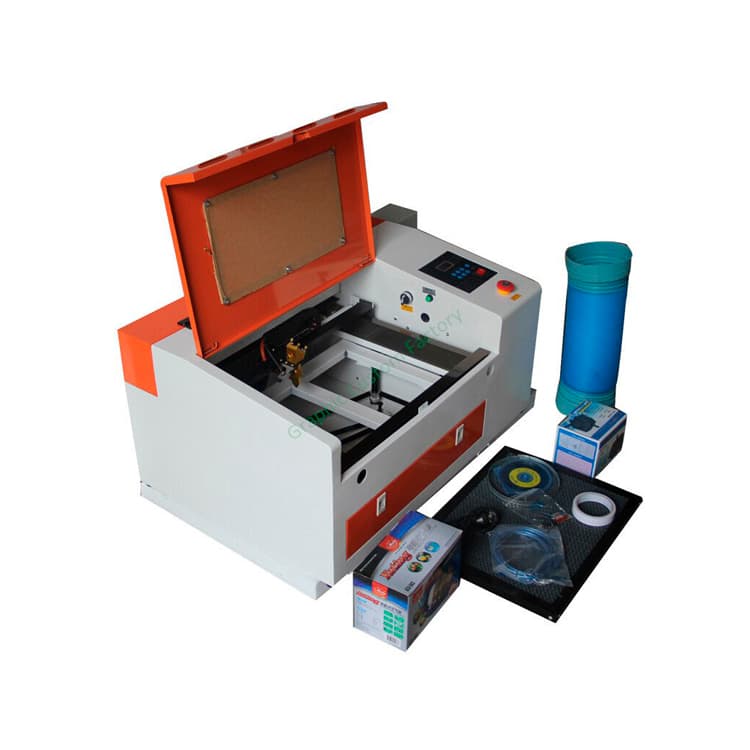

AF-LA30*40 is a compact laser cutting and engraving machine with a 40 W laser tube. It weighs only 45 kg and measures 1000×700×300 mm.
The machine cuts at up to 40,000 mm/min and engraves at up to 60,000 mm/min. Stepper motors drive the motion, control is through RDWorks (Ruida) software, and files are transferred via USB2, USB3 or Wi-Fi. The table height can be lowered.
It runs on 220 V, 50 Hz and consumes 1.5 kW; the frame is painted ferrous metal. The set includes an air cooling motor, a water cooling motor, lenses, an exhaust duct, a USB key, software and cables. Thanks to its small size and low weight, it suits small workshops, training centres and those starting out in souvenir and gift production.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us what items you plan to make, and we will check that the machine suits your tasks.
General
- Manufacturer
- China, Shenzhen
- Power consumption
- 1,5 Kw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1000*700*300mm
- Laser tube
- 40W
- Weight
- 45 Kg
- Standard additions
- Cooling air motor, cooling chiller CW3000, lens, air suction pipe, USB key, Operating software, USB cable, Power supply cable
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLaser equipment AF-LA30*40Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
14 parameters- Manufacturer
- China, Shenzhen
- Power consumption
- 1,5 Kw/h
- Voltage
- 220v 50hz
- operating speed (sharpening)
- 0-60000mm/min
- Operating speed (cutting)
- 0-40000mm/min
- software
- RD works Ruida
- Data transfer
- USB2/USB3/WIFI
- Motor type
- Stepper motor
- Possibility to lower the table
- Available (can be removed)
- Material
- Black metal (painted)
- Size
- 1000*700*300mm
- Laser tube
- 40W
- Weight
- 45 Kg
- Standard additions
- Cooling air motor, cooling chiller CW3000, lens, air suction pipe, USB key, Operating software, USB cable, Power supply cable
