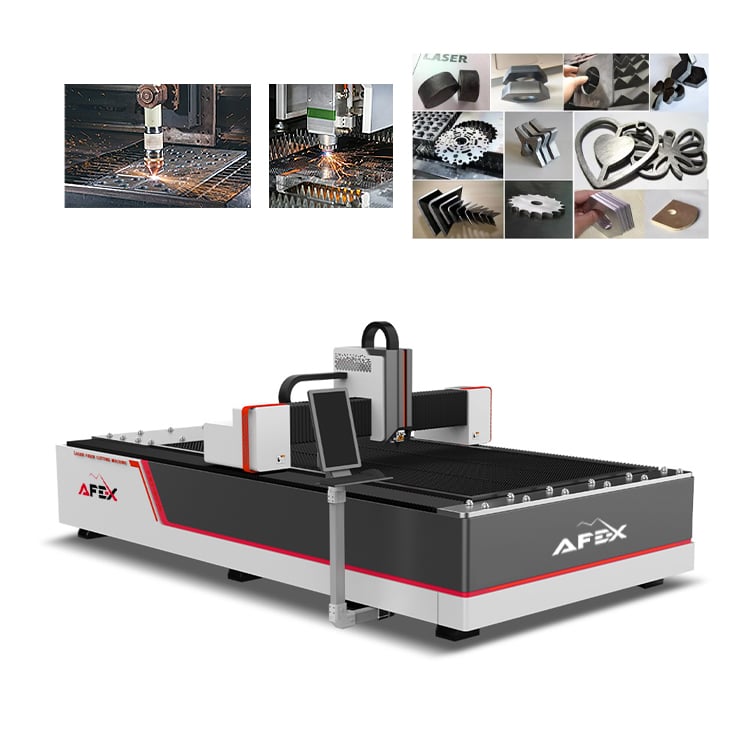

Laser Cutting Machine AF-L3015 3000W

Laser Cutting Machine Components and Additional Equipment

1. Raycus laser source
2. Laser head: Raytools BM110
3. Laser control system: Raytools XC3000S
4. HIWIN linear guide
5. Chiller (water cooler)
6. Automatic lubrication system

Advantages of the Raycus 3000W Laser Source

1. Energy saving – consumes up to 30–40% less electricity than conventional CO₂ laser sources. This lowers production costs and brings economic benefit to the business.

2. High efficiency – the electro-optical conversion efficiency is high (25–30%), which guarantees speed and quality when cutting metal.

3. Excellent cut quality – cuts steel, stainless steel, aluminum and other metals smoothly and precisely, with no need for additional finishing.

4. Reliability – stable power output delivers consistent results in production.

5. Easy maintenance – requires no complex servicing; its parts are simple and readily available on the market.

6. Long service life – the laser diodes have a service life of up to 100,000 hours.

7. Safety systems – equipped with protection against overheating, voltage fluctuations and other hazardous conditions.

Raytools XC3000S Control System

Overview: the Raytools XC3000S is a modern control system designed for laser cutting machines, providing high precision, speed and stable operation. The system is used for cutting many types of metal materials and is ideal for automated production processes.

Key advantages:

1. Automatic focusing and height control
   – Automatically adjusts the laser head height even when the material surface is uneven, keeping cut quality consistent.

2. Fast processing
   – Allows even complex shapes to be cut at high speed and with precision.

3. Touch control panel
   – Intuitive interface, convenient menus and easy operation.

4. Stability and safety
   – Features collision protection, automatic gas flow control and high-temperature monitoring.

5. Wide compatibility
   – Can work with laser sources of various power ratings (e.g. Raycus, IPG and others).

6. Energy efficiency
   – Reduces power consumption and optimizes production costs.

7. Easy maintenance
   – System faults can be quickly diagnosed and fixed, so production runs without interruption.

Raytools BM110 Laser Head

Overview:
The Raytools BM110 is a professional optical head designed for laser cutting of metal. It is mainly intended for use with low- and medium-power (up to 1500W–2000W) fiber laser sources. The BM110 ensures high precision, speed and stability in laser cutting machines.

Key features and advantages:

1. Automatic focusing
   – Automatically adjusts the laser focus according to material thickness and surface, saving time and improving cut quality.

2. Wide range of applications
   – Used for cutting carbon steel, stainless steel, aluminum, brass and other metal sheets.

3. High precision
   – Delivers the laser beam with minimal loss and produces a very clean cut line.

4. Compact and robust design
   – The BM110 is very lightweight and durable, built for long-term use.

5. Optics protection
   – Special protective lenses shield the laser optics from dust, smoke and metal sparks.

6. Gas-assisted cutting
   – Allows various metals to be cut using nitrogen, oxygen or air.

7. Easy maintenance
   – Laser head parts are quick to replace and easy to adjust.

Laser Cutting Samples
