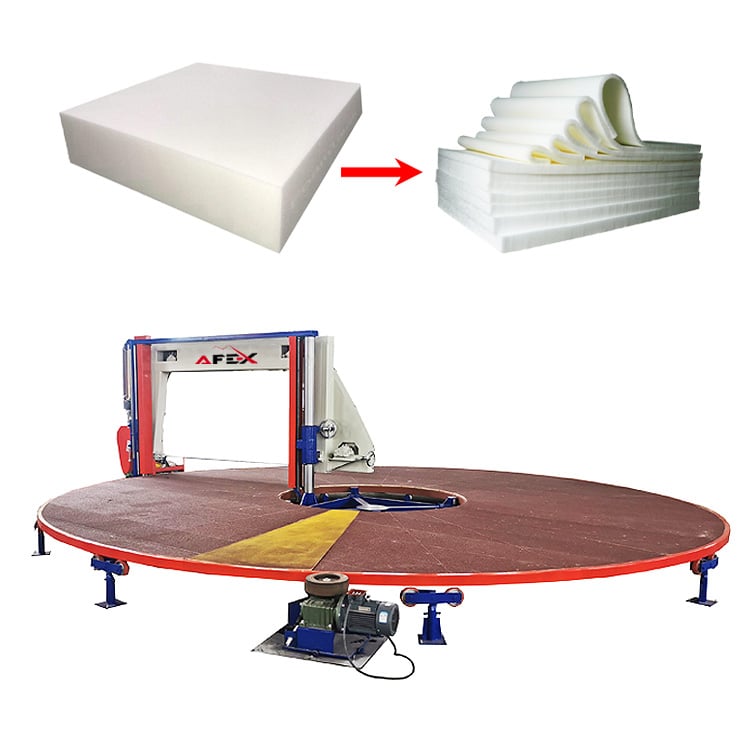

1 / 2Horizontal Foam Cutting Machine with Rotary Round Table
This foam cutting machine slices large foam blocks into horizontal layers on a rotating round table.
- Power
- 8.84 kW
- Voltage
- 380 V 50/60 Hz
- Table rotation speed
- 0-3.2 rpm
- Blade length
- 10000 mm
- Machine dimensions
- 8650×7000×2380 mm
- Weight
- 3200 kg
Overview
About the equipment

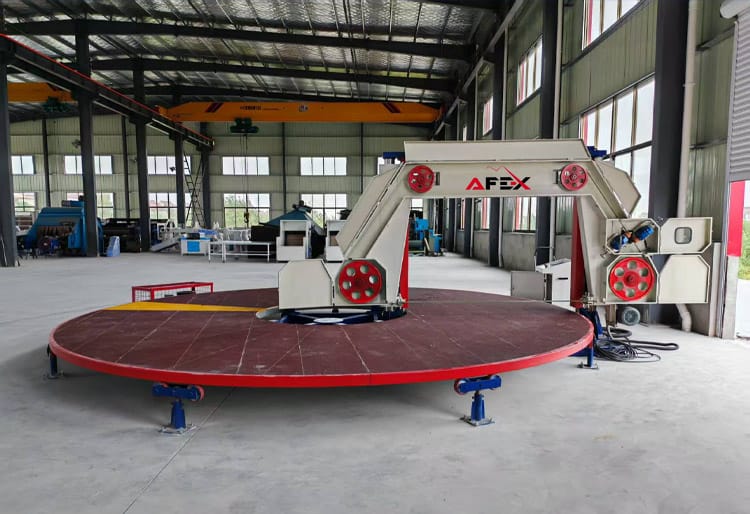

This foam cutting machine slices large foam blocks into horizontal layers on a rotating round table. The table, 7.3 m in diameter, holds 3 blocks measuring 2300×2150×1200 mm.
The blocks are placed on the table, which rotates at 0–3.2 revolutions per minute, while the horizontal blade slices the blocks layer by layer. Cutting thickness is adjustable from 2 mm to 150 mm, the maximum cutting height is 1200 mm and the blade length is 10,000 mm. Processing three blocks at once reduces downtime for reloading.
The machine connects to a 380 V, 50/60 Hz supply and has a power of 8.84 kW. Dimensions 8650×7000×2380 mm, weight 3200 kg, so it requires a spacious workshop area and a solid floor. The machine is designed for companies producing foam sheets for mattresses, upholstered furniture and packaging inserts.
AFEX delivers, installs and commissions the equipment and provides warranty service. Send us the dimensions of your foam blocks and the required sheet thickness, and we will check whether the machine suits your task.
General
- Voltage
- 380 V 50/60 Hz
- Power
- 8.84 kW
- Table diameter
- 7.3 m
- Table rotation speed
- 0-3.2 rpm
- Cutting thickness (min–max)
- 2-150 mm
- Maximum cutting height
- 1200 mm
- Block size for cutting
- 3 pcs 2300×2150×1200 mm
- Blade length
- 10000 mm
- Machine dimensions
- 8650×7000×2380 mm
- Weight
- 3200 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHorizontal Foam Cutting Machine with Rotary Round TableYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Voltage
- 380 V 50/60 Hz
- Power
- 8.84 kW
- Table diameter
- 7.3 m
- Table rotation speed
- 0-3.2 rpm
- Cutting thickness (min–max)
- 2-150 mm
- Maximum cutting height
- 1200 mm
- Block size for cutting
- 3 pcs 2300×2150×1200 mm
- Blade length
- 10000 mm
- Machine dimensions
- 8650×7000×2380 mm
- Weight
- 3200 kg
