Production line for meat patties and semi-finished meat products — Image 1 / 41 / 4
Food equipment

Production line for meat patties and semi-finished meat products

This line is designed for forming, liquid coating, and breading meat patties and other shaped semi-finished products.

Individual offer
Production capacity
150–350 kg/h
Power
4.2 kW
Hopper capacity
60 L
Model
CTM240
Voltage
380 V
Forming speed
15–40 times/min
Price

Overview

Key advantages

  • Automatically forms meat cutlets and other semi-finished products
  • Forming capacity of 150–350 kg/h
  • Capable of producing round, oval, rectangular and other shapes
  • Product shape can be changed by replacing the mold
  • In subsequent stages, the product can be coated with liquid coating and breadcrumbs
  • All main product-contact parts are made of SUS304 stainless steel

About the equipment

This line is designed for forming, liquid coating, and breading meat patties and other shaped semi-finished products. The line consists of three main units: a forming machine, a liquid coating machine, and a breading machine. The forming machine can produce round, rectangular, oval, and other shaped products. The mold is changed to alter the product shape.

01

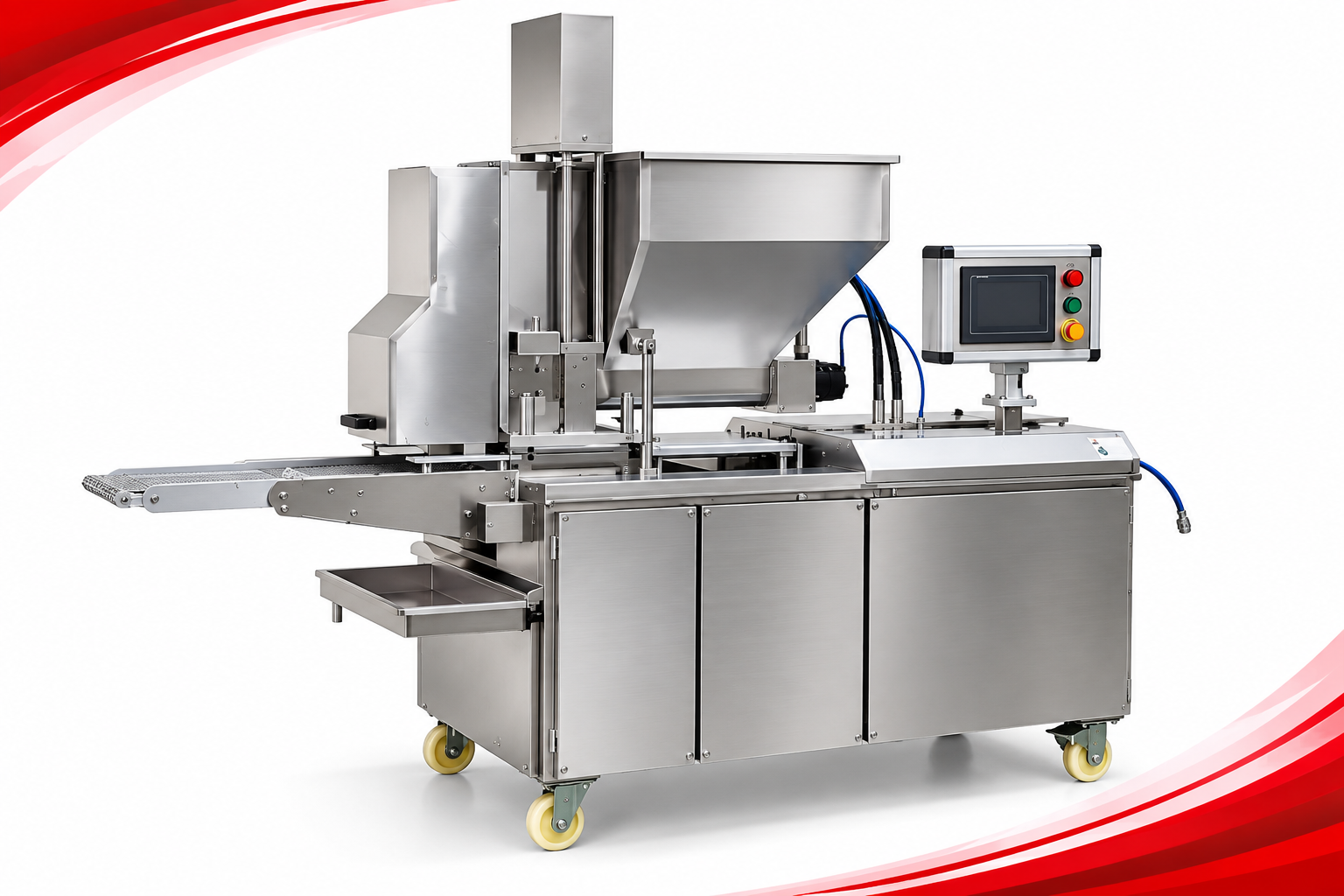

Meat Cutlet Forming Machine

18 parameters
Meat Cutlet Forming Machine
Model
CTM240
Production capacity
150–350 kg/h
Power
4.2 kW
Voltage
380 V, 50 Hz, 3 phase
Hopper capacity
60 L
Product shape
Round, rectangular, oval and others
Shape change
By replacing the mold
Forming area
180 × 140 mm
Forming speed
15–40 times/min
Mold drive
Hydraulic
Conveyor width
300 mm
Compressed air consumption
0.3 m³/min
Required compressor
Approximately 3 kW
Water pressure
≥3 bar
Water consumption
40 kg/h
Material
SUS304
Dimensions
2250 × 750 × 1960 mm
Weight
340 kg
02

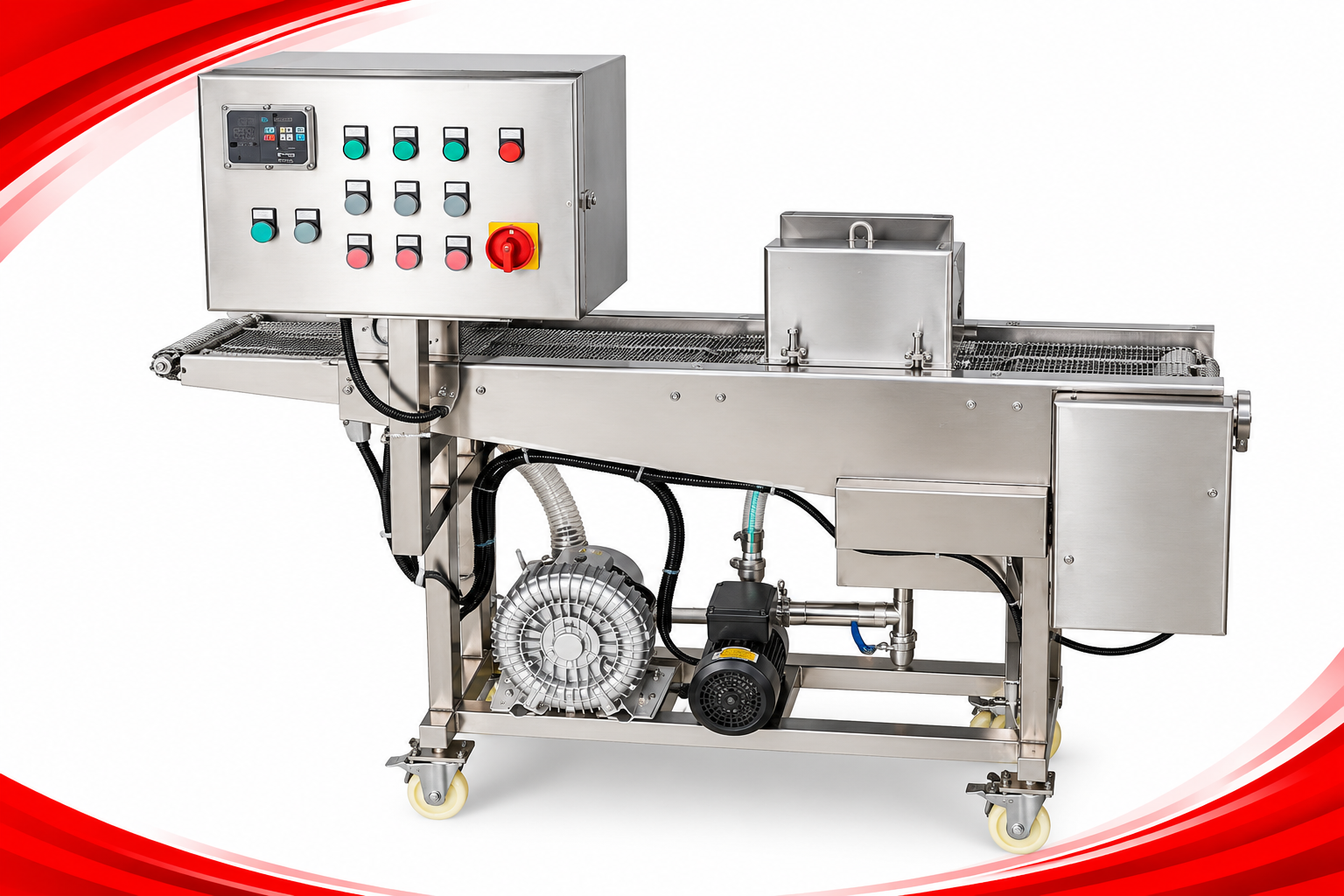

Liquid Coating Machine for Meat Cutlets

7 parameters
Liquid Coating Machine for Meat Cutlets
Model
CTML300
Conveyor width
300 mm
Conveyor speed
3–15 m/min, adjustable
Power
0.45 kW
Voltage
380 V, 50 Hz, 3 phase
Material
SUS304
Dimensions
1900 × 800 × 1250 mm
03

Breadcrumb Coating Machine for Meat Cutlets

7 parameters
Breadcrumb Coating Machine for Meat Cutlets
Model
CTBR300
Conveyor width
300 mm
Conveyor speed
3–15 m/min, adjustable
Power
1.17 kW
Voltage
380 V, 50 Hz, 3 phase
Material
SUS304
Dimensions
2000 × 850 × 1550 mm
AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentProduction line for meat patties and semi-finished meat products

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

Meat Cutlet Forming Machine

18 parameters
Model
CTM240
Production capacity
150–350 kg/h
Power
4.2 kW
Voltage
380 V, 50 Hz, 3 phase
Hopper capacity
60 L
Product shape
Round, rectangular, oval and others
Shape change
By replacing the mold
Forming area
180 × 140 mm
Forming speed
15–40 times/min
Mold drive
Hydraulic
Conveyor width
300 mm
Compressed air consumption
0.3 m³/min
Required compressor
Approximately 3 kW
Water pressure
≥3 bar
Water consumption
40 kg/h
Material
SUS304
Dimensions
2250 × 750 × 1960 mm
Weight
340 kg

Liquid Coating Machine for Meat Cutlets

7 parameters
Model
CTML300
Conveyor width
300 mm
Conveyor speed
3–15 m/min, adjustable
Power
0.45 kW
Voltage
380 V, 50 Hz, 3 phase
Material
SUS304
Dimensions
1900 × 800 × 1250 mm

Breadcrumb Coating Machine for Meat Cutlets

7 parameters
Model
CTBR300
Conveyor width
300 mm
Conveyor speed
3–15 m/min, adjustable
Power
1.17 kW
Voltage
380 V, 50 Hz, 3 phase
Material
SUS304
Dimensions
2000 × 850 × 1550 mm

Included units

Units and accessories included with the equipment. Specifications for each are in the section above.

  • Meat Cutlet Forming Machine01

    Meat Cutlet Forming Machine

    18 parameters

    • Model: CTM240
    • Production capacity: 150–350 kg/h
    Specifications
  • Liquid Coating Machine for Meat Cutlets02

    Liquid Coating Machine for Meat Cutlets

    7 parameters

    • Model: CTML300
    • Conveyor width: 300 mm
    Specifications
  • Breadcrumb Coating Machine for Meat Cutlets03

    Breadcrumb Coating Machine for Meat Cutlets

    7 parameters

    • Model: CTBR300
    • Conveyor width: 300 mm
    Specifications

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.
