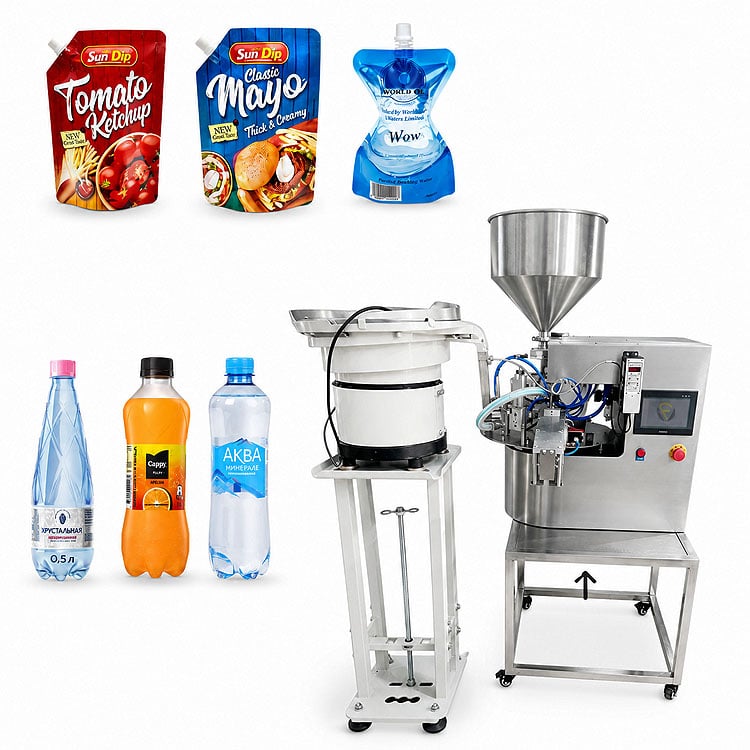

Compact Water and Liquid Packaging Machine

Operating Principle and Design of the Machine

1. Container or pouch placement: manual hanging of the plastic container or pouch
2. Filling method: precise metered filling by a servo-driven magnetic gear pump, self-priming system
3. Capping method: caps are fed automatically by a vibratory bowl, bowl height is adjustable (adapted to the cap size)
4. Product feeding method: self-priming system or via pump/feeder (optional) — containers of different sizes require changing the turntable or the cap chute

Key advantages of the machine:

1. Versatile application: suitable for household chemical and food containers — e.g. water, laundry detergent, shampoo, jelly, juice, oil, milk, seasonings, tomato sauce, etc. Suitable for pouches and plastic containers (bottles).
2. Ease of use: parameter memory function — once set up and saved, next time you only need to change the volume
3. High efficiency: fast filling speed and high stability — each filling volume is individually controlled by brand-name servo motors, resulting in high accuracy
4. Easy cleaning: the gear pump, storage tank and filling head are connected with clamps — parts can be disassembled and cleaned without tools; the control panel has an automatic cleaning button
