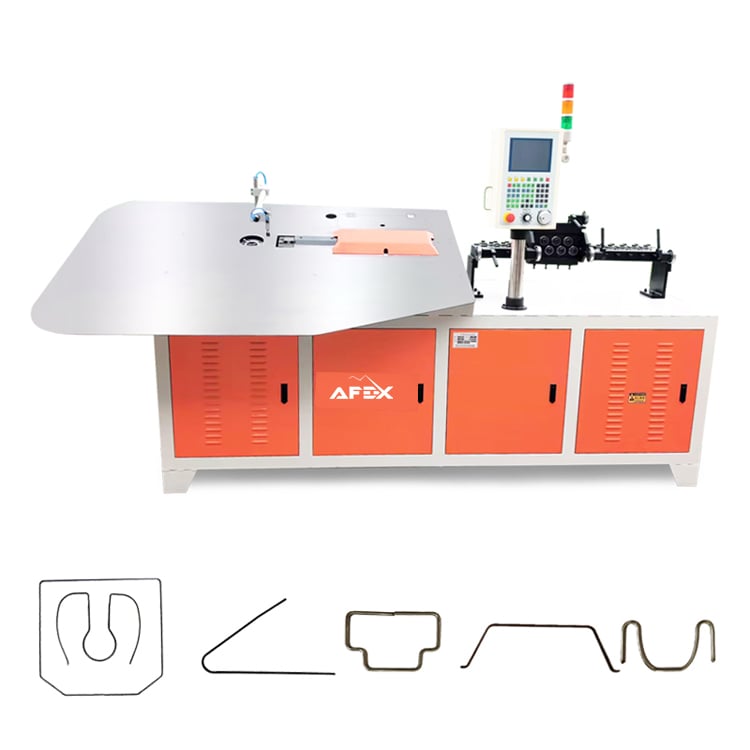

1 / 4Wire Bending (Forming) Machine
This machine is used in the production of high-precision wire products.
Individual offer
- Total Power
- 10.2 kW
- Input Voltage
- 380V
- Maximum Wire Feeding Speed
- 100 m/min
- Wire Feeding Servo Motor
- 2.9 kW
- Bending Servo Motor
- 2.5 kW
- Cutting Servo Motor
- 1.5 kW
Price
Overview
Key features
- Steel Type
Round wire, flat wire, square wire (compatible with any wire grade)
- Wire Diameter Range (mm)
Hard wire Φ3.0 ~ Φ6.0; soft wire Φ3.0 ~ Φ8.5
About the equipment
This machine is used in the production of high-precision wire products. Equipped with a flexible and advanced structure, it works efficiently even with complex parts and in 3D forming processes.
Main Components

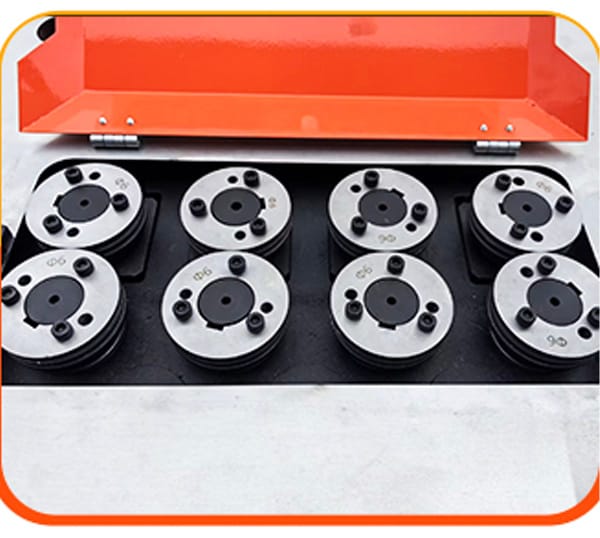

- 4 groups of wire feeding wheels• Straightening unit (with memory or standard)• Equipped with servo motors • High-precision bending and cutting
Advantages
- A cylinder that rotates the inner die by 180° – similar to a 3D wire bending machine.• Flexible and advanced structure.• High-precision operation.

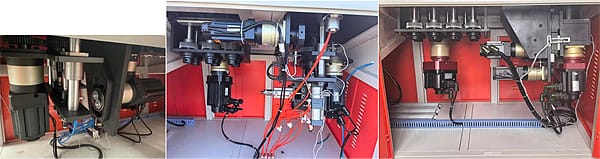

• Equipped with a total of 5 servo motors.

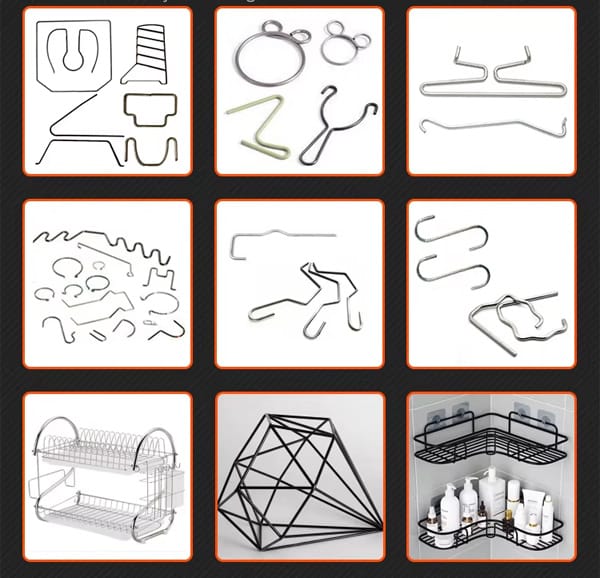

Applications
The machine is used to produce a wide range of products: • Metal goods • Supermarket shelving • Auto parts • Garden tools • Hair accessories • Sports equipment • Toys • Animal cages • Handicrafts
Operating Conditions
- Power supply: 3-phase 380V (±10%)• Air pressure: 0.6 MPa• Ambient temperature: -20℃ ~ +40℃ • Humidity: 60–95% RH
01
20 parametersGeneral
- Number of Servo Axes
- 5 axes
- Wire Feeding Wheels
- 4 groups (8 pcs)
- Steel Type
- Round wire, flat wire, square wire (compatible with any wire grade)
- Wire Diameter Range (mm)
- Hard wire Φ3.0 ~ Φ6.0; soft wire Φ3.0 ~ Φ8.5
- Input Voltage
- 380V, 3-phase, 50/60 Hz
- Maximum Wire Feeding Speed
- 100 m/min
- Wire Feeding Servo Motor
- 2.9 kW
- Bending Servo Motor
- 2.5 kW
- Cutting Servo Motor
- 1.5 kW
- Inner Die Rotation Servo Motor
- 1 kW
- Inner and Outer Die Lifting Servo Motor
- 1 kW
- Total Power
- 10.2 kW
- Movement Direction
- Up-down, positive and negative bending
- Program Capacity
- 10,000 programs
- CNC Control System
- ARCUCHI
- Wire Feeding Accuracy
- 500 mm ±0.1
- Bending Accuracy
- 90° ±0.1 mm
- Maximum Bending Speed
- 300 rpm, angle ±180°
- Weight
- 1100 kg
- Dimensions
- 3100 × 950 × 1500 mm
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentWire Bending (Forming) MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
20 parameters- Number of Servo Axes
- 5 axes
- Wire Feeding Wheels
- 4 groups (8 pcs)
- Steel Type
- Round wire, flat wire, square wire (compatible with any wire grade)
- Wire Diameter Range (mm)
- Hard wire Φ3.0 ~ Φ6.0; soft wire Φ3.0 ~ Φ8.5
- Input Voltage
- 380V, 3-phase, 50/60 Hz
- Maximum Wire Feeding Speed
- 100 m/min
- Wire Feeding Servo Motor
- 2.9 kW
- Bending Servo Motor
- 2.5 kW
- Cutting Servo Motor
- 1.5 kW
- Inner Die Rotation Servo Motor
- 1 kW
- Inner and Outer Die Lifting Servo Motor
- 1 kW
- Total Power
- 10.2 kW
- Movement Direction
- Up-down, positive and negative bending
- Program Capacity
- 10,000 programs
- CNC Control System
- ARCUCHI
- Wire Feeding Accuracy
- 500 mm ±0.1
- Bending Accuracy
- 90° ±0.1 mm
- Maximum Bending Speed
- 300 rpm, angle ±180°
- Weight
- 1100 kg
- Dimensions
- 3100 × 950 × 1500 mm
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
