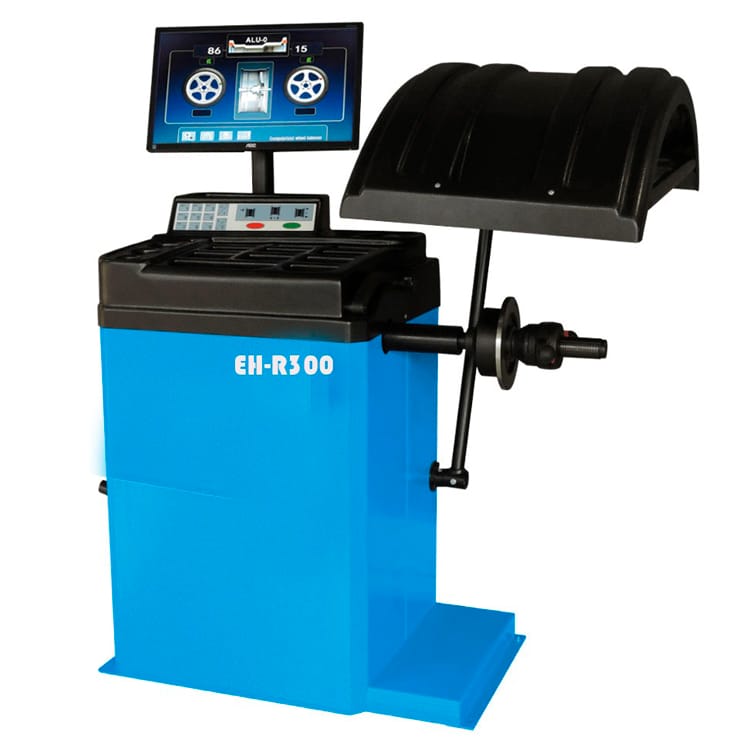

1 / 1Tire balancing equipment AF-EH-R300
AF-EH-R300 is a wheel balancer for tires weighing up to 70 kg.
- Model
- EH-R300
- Voltage
- 220/380 v
- Maximum tire weight
- 70kg%
- Balancing speed
- 220 rpm
- Disc size
- 256-615mm
- Disk width
- 40mm- 510mm
Overview
About the equipment
AF-EH-R300 is a wheel balancer for tires weighing up to 70 kg. Balancing accuracy is ±1 g, and one measurement takes 8 seconds.
The balancer is operated from a microcomputer control panel with an LED screen. Balancing speed is 220 rpm, so each wheel spends little time on the machine when there is a queue at the tire shop. It handles rims of 10–24 inches in diameter (256–615 mm) and 1.5–20 inches in width (40–510 mm).
The machine runs on 220/380 V, has a noise level of 70 dB and is made in China. It suits tire shops and car service centres working with passenger cars, helping them balance wheels quickly during seasonal tire changes. This equipment is in stock at the AFEX warehouse.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us how many wheels your shop balances per day, and we will recommend a suitable model.
General
- Produced
- China
- Model
- EH-R300
- Management
- Microcomputer panel. LCD monitor
- Maximum tire weight
- 70kg%
- Voltage
- 220/380 v
- Balancing accuracy
- +1g
- Balancing speed
- 220 rpm
- Disc size
- 10-24 (256-615mm)
- Disk width
- 1,5-20 ( 40mm- 510mm)
- Time to measure
- 8sek/10s
- Noise level
- <70 dB
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentTire balancing equipment AF-EH-R300Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
11 parameters- Produced
- China
- Model
- EH-R300
- Management
- Microcomputer panel. LCD monitor
- Maximum tire weight
- 70kg%
- Voltage
- 220/380 v
- Balancing accuracy
- +1g
- Balancing speed
- 220 rpm
- Disc size
- 10-24 (256-615mm)
- Disk width
- 1,5-20 ( 40mm- 510mm)
- Time to measure
- 8sek/10s
- Noise level
- <70 dB
