1 / 1Tyre changer AF-M117

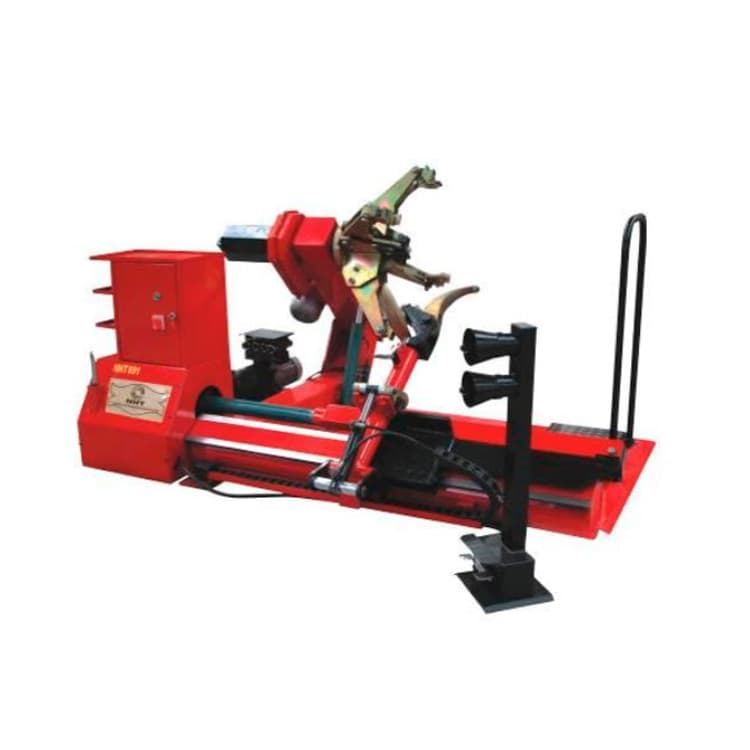

AF-M117 is a fully automatic tire changer for removing and fitting truck tires.
- Motor power
- 2,2kw
- Voltage
- 220/380v
- Weight
- 590kg
- Outer dimension for operation
- 14-26inch
- Internal dimension for operation
- 16-28 inch
- Operating pressure
- 8-10 bar
Overview
About the equipment
AF-M117 is a fully automatic tire changer for removing and fitting truck tires. It handles tires up to 1600 mm in diameter and 800 mm wide.
Rims are clamped from the outside in the 14–26 inch range and from the inside in the 16–28 inch range. The machine has 4 cylinders, a pneumatic switch and a pressure gauge, with a working pressure of 8–10 bar. The motor is rated at 2.2 kW, and the supply voltage is 220/380 V.
The machine weighs 590 kg, measures 2260×1795×1020 mm and has a noise level of 70 dB. It is made in Dalian, China. Removing large, heavy truck wheels by hand takes a lot of effort and time; this tire changer makes the job easier in truck tire shops, fleets and transport companies.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the vehicles you service and their wheel sizes, and we will check that the machine fits.
General
- Produced
- China
- City
- Dalian
- Outer dimension for operation
- 14-26inch
- Internal dimension for operation
- 16-28 inch
- Operating pressure
- 8-10 bar
- Max tire diameter
- 1600 mm
- Tire width
- 800mm
- Weight
- 590kg
- Breaker
- pneumatic
- Number of cylinders
- 4
- Noise level
- 70db
- Monometer
- there is
- The size
- 2260*1795*1020mm
- Motor power
- 2,2kw
- Voltage
- 220/380v
