1 / 1Tire balancing equipment AF-AR-E600
AF-AR-E600 is a wheel balancer for wheels weighing up to 100 kg.
- Model
- AR-E600
- Voltage
- 220/380v
- Maximum tire weight
- 100 kg %
- Balancing speed
- 220 rpm
- Disk width
- 40mm -510mm
- Laser indexing
- Available
Overview
About the equipment

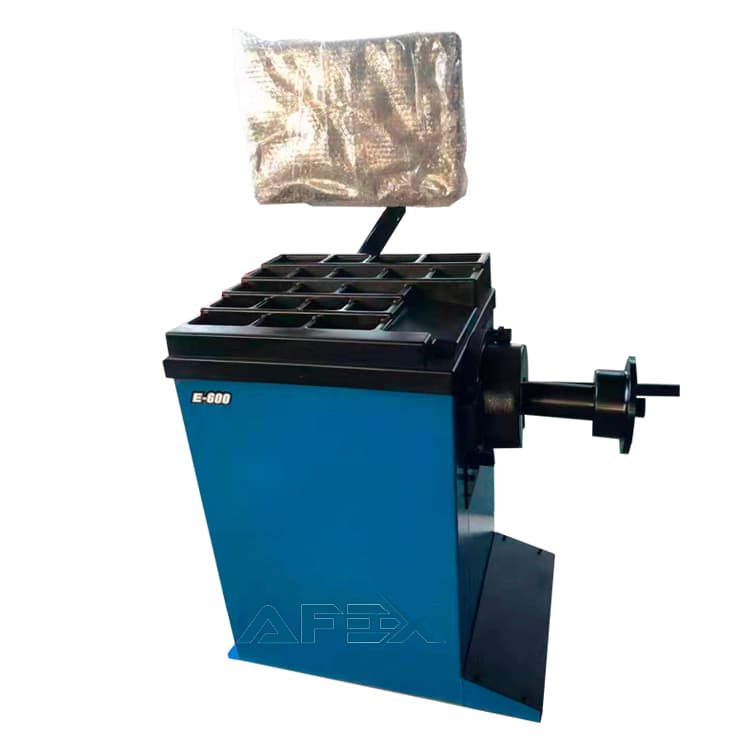

AF-AR-E600 is a wheel balancer for wheels weighing up to 100 kg. Balancing accuracy is ±1 g, and it takes 10–24 inch rims.
The balancer has a microcomputer control panel and an LED monitor. It comes with a standard electronic measuring system and laser indexing, where the laser shows where to place the balancing weight. The wheel spins at 220 rpm, and a measurement takes 8 seconds.
Rim diameter range is 10–24 inches (256–615 mm), and rim width 1.5–20 inches (40–510 mm). The machine runs on 220/380 V, has a noise level of 70 dB and is made in China. Handling tires up to 100 kg makes it practical for tire shops and car service centres that work with both passenger cars and heavier wheels.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the wheel sizes and weights your shop handles, and we will recommend a suitable balancer.
General
- Model
- AR-E600
- Management
- Microcomputer panel, LSD monitor
- Maximum tire weight
- 100 kg %
- Voltage
- 220/380v
- Balancing accuracy
- +1g
- Balancing speed
- 220 rpm
- Disc size
- 10-24 ( 256-615)
- Disk width
- 1,5 - (40mm -510mm)
- Standard electronic measuring system
- Available
- Laser indexing
- Available
- Time to measure
- 8 sek/10s
- Noise level
- < 70 dB
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentTire balancing equipment AF-AR-E600Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
12 parameters- Model
- AR-E600
- Management
- Microcomputer panel, LSD monitor
- Maximum tire weight
- 100 kg %
- Voltage
- 220/380v
- Balancing accuracy
- +1g
- Balancing speed
- 220 rpm
- Disc size
- 10-24 ( 256-615)
- Disk width
- 1,5 - (40mm -510mm)
- Standard electronic measuring system
- Available
- Laser indexing
- Available
- Time to measure
- 8 sek/10s
- Noise level
- < 70 dB
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
