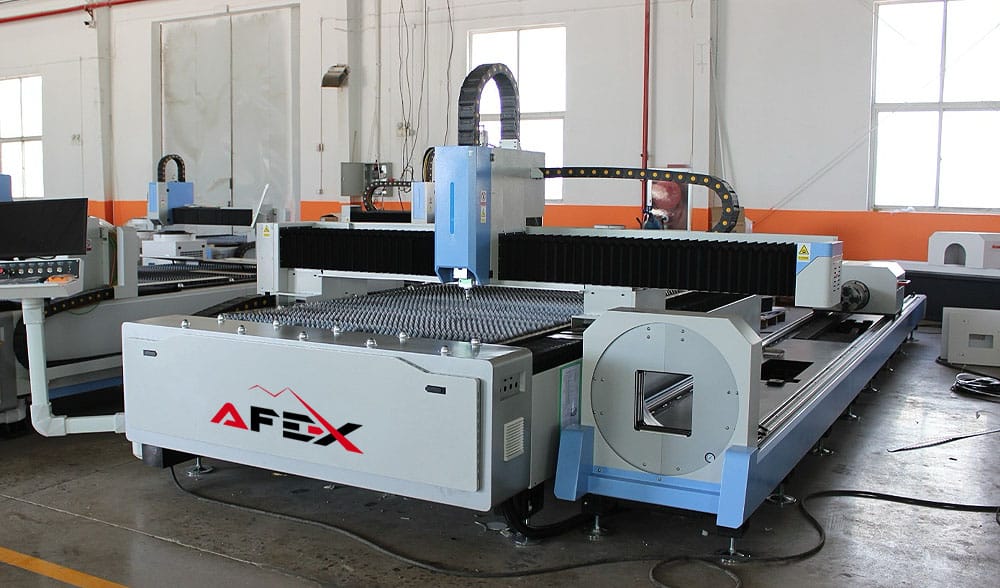

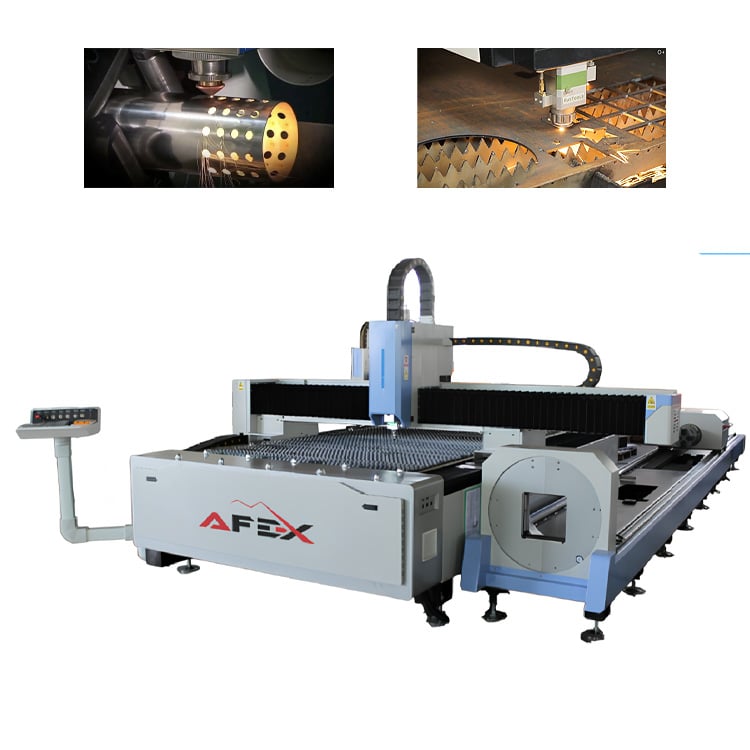

1 / 5Sheet and Tube Laser Cutting Machine 6 kW AFLT-1560
Raycus 6 kW · BM06K-3D · 1500×6000 mm
Individual offer
- Laser Source
- Raycus 6 kW
- Raytools Laser Head
- BM06K-3D
- Sheet Cutting Size
- 1500×6000 mm
- Tube Cutting
- 6 m long
- Servo Motor
- Fuji (Japan)
- Water Chiller
- S&A chiller 6000
Price
Overview
Key advantages
- Tube length can be selected as 3 m or 6 m
- The fully automatic double-sided chuck mounted on the machine works powerfully and reliably
- Imported transmission components ensure high precision

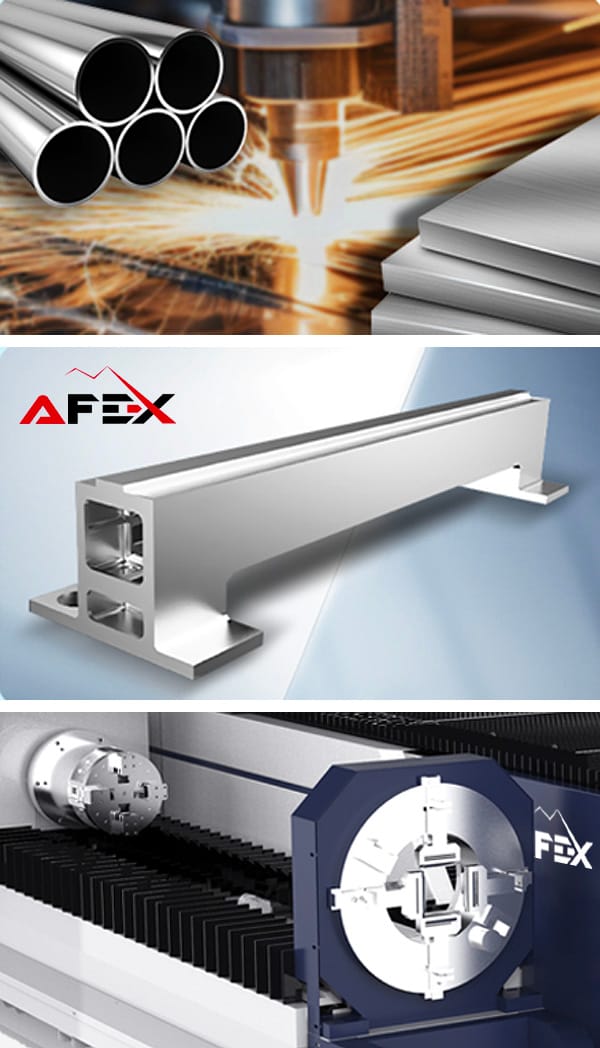

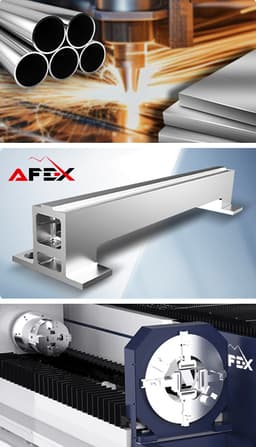

- Heavy cast-iron bed – guarantees 20 years of deformation-free operation
- Aviation-grade aluminum crossbeam – ensures stable and precise operation
About the equipment
01
12 parametersMain Technical Configuration
- Manufacturer
- China
- Sheet Cutting Size
- 1500×6000 mm
- Tube Cutting
- 6 m long, up to 220 mm in diameter
- Control System
- Raytools
- Laser Source
- Raycus 6 kW
- Raytools Laser Head
- BM06K-3D
- Servo Motor
- Fuji (Japan)
- Gearbox
- SHIMPO (Japan)
- Linear Guide Rails
- HIWIN
- Transmission System
- YYC (Taiwan)
- Water Chiller
- S&A chiller 6000
- Proportional Valve
- SMC

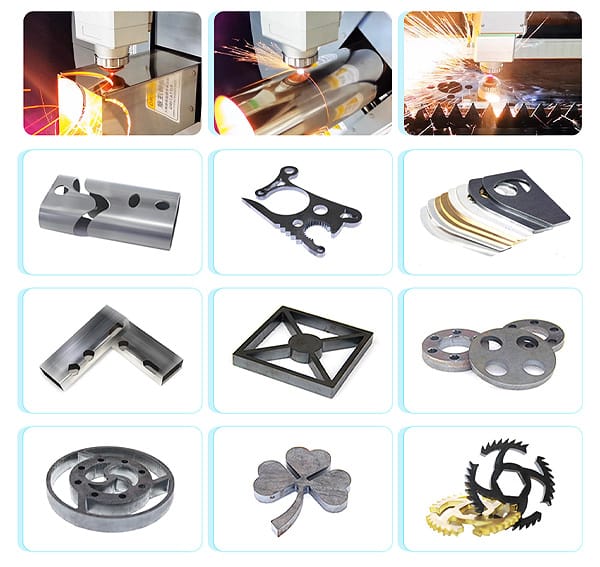

Applicable Materials
- Carbon Steel
- Stainless Steel
- Aluminum
- Brass
- Copper
- Titanium
- Galvanized Sheet
- Silicon Steel
- Galvanized Steel Sheet
- Other Metal Alloys

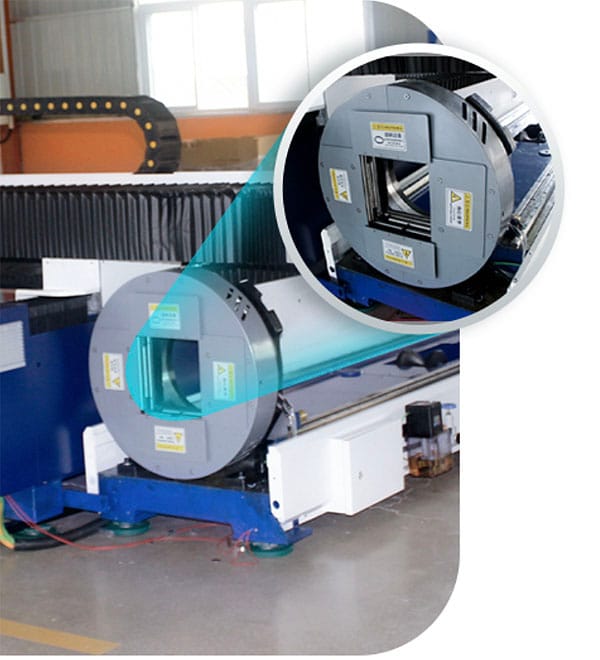

Fully Automatic Pneumatic Double-Sided Chuck for Tube Cutting
- The chuck opens with a single button press and centers automatically, reducing loading and unloading time.
- The pneumatic clamp provides strong and stable clamping force. Even heavy tubes do not loosen or slip. This ensures precise cutting.
- A special support system keeps the tube from sagging and prevents deformation, thereby improving cutting accuracy and extending the service life of the chuck.
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentSheet and Tube Laser Cutting Machine 6 kW AFLT-1560Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Main Technical Configuration
12 parameters- Manufacturer
- China
- Sheet Cutting Size
- 1500×6000 mm
- Tube Cutting
- 6 m long, up to 220 mm in diameter
- Control System
- Raytools
- Laser Source
- Raycus 6 kW
- Raytools Laser Head
- BM06K-3D
- Servo Motor
- Fuji (Japan)
- Gearbox
- SHIMPO (Japan)
- Linear Guide Rails
- HIWIN
- Transmission System
- YYC (Taiwan)
- Water Chiller
- S&A chiller 6000
- Proportional Valve
- SMC
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
