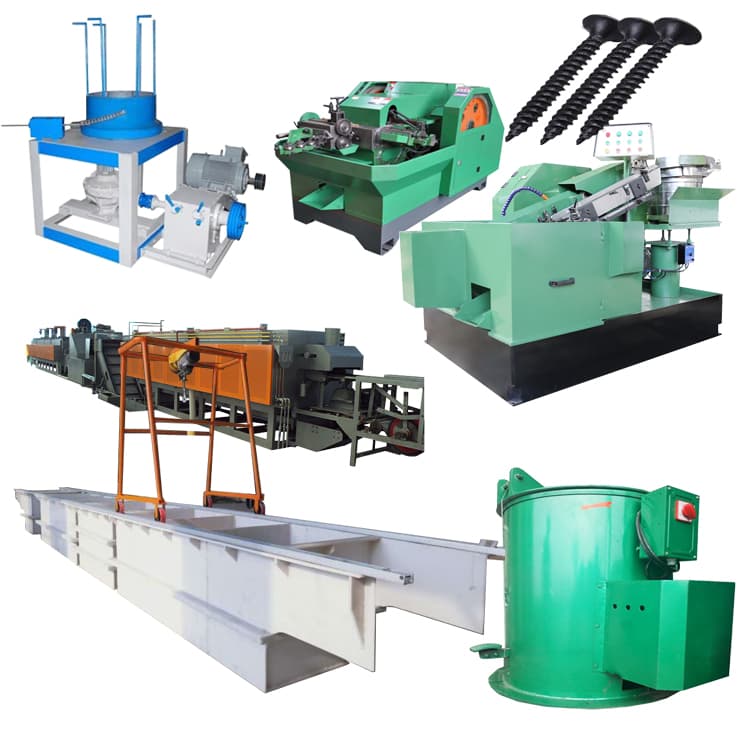

Self-tapping screw production line AF-008

Availability:

Out of stock


Among the building materials, one of the most widely used products is samorez. Buyers appreciate the wide range of applications and long service life. Many entrepreneurs ask the question whether it is better to produce samorez, or whether ordinary nails are used a lot by our people. Both products have their own conveniences and their own niches. For example, you can’t use nails to make wooden furniture, but it’s difficult to use a screwdriver for asbestos slates. We recommend a complete line for those who want to start the production of the most commonly used vernacular called “black Samorez”. “AFEX-GROUP” LLC company decided to recommend a line perfected as a result of long-term research. Some of the Samorez products produced by our current local manufacturers object to the fact that the head part breaks quickly or rusts after a short period of time. And many people think that it is from the raw material, it depends a lot on the right raw material, but since the product quality of two different manufacturers using the same type of C1022 wire is different, then the error is in the production equipment or depends on the process in it.

$129,500

Out of stock

Wire stretching equipment

First of all, it is necessary to stretch the special carbon wire (brand C1022) to the required size. Of course, those who wish may not get this equipment, but according to our Chinese partners, in the process of importing a wire of a fixed size, a small amount of dust particles may be added to it, or its width may change imperceptibly as a result of deformation, and this will have a negative effect on the quality of the wire. They think it will show.

Wire stretching equipment
Country of manufacture China
Voltage 380v50hz
Power consumption 7.5kw/h
Weight 380 kg
Size 1500*1200*1700 mm
Speed of operation 15m/min



Wire cap opening equipment

This tool cuts the wire to the desired size and exposes the head. The resulting product looks like a regular nail. You will be able to change the diameter of the tool by changing the die.

Equipment for Samorez head
Produced China
Voltage 180v50hz
Power consumption 5.5kw/h
Weight 1700 kg
Size 1700*1400*1450mm
Speed of operation 140-180 pieces/min
Wire diameter 2.0-3.5mm
Product length 2.0-50mm
Product output capacity 25 kg/hour



Samorezka screw track opening equipment

The product made into a cap is placed in a special container of this equipment. The equipment traces a twist on them in sequence. This process is similar to a lathe as many people think. the product is made by pressing it through a special trace mold, not by drawing, so there is no waste in the product.

Samorezka screw track opening equipment
Produced China
Voltage 180v50hz
Power consumption 3 kw/h
Weight 900 kg
Size 1900*1400*1450 mm
Speed of operation 180-200 pieces/min
Wire diameter 2.0-3.5mm(before processing)
Product length 2.0-50mm
Product output capacity 30 kg/hour
Finished product diameter 2,7mm-4,2mm



A special conveyor oven for thermal treatment of Samorez

This stage is considered one of the most necessary stages that determine the quality of your product. We recommend a heat treatment furnace that is sufficient for your business’s initial production capacity. With this conveyor oven, you will also find special pipes for spraying Methanol and Kerosene, which you need for the processing process, which will prevent you from spending too much labor in the process. The required space for the thermal furnace should not be less than 20 meters in length. We hope that this will not be a problem since the conveyor oven also includes the cooling steps. OCr21Al6Nb special material skins were used in order to avoid problems in the equipment.

Five-stage heating zone
An inverter motor is used for the conveyor
Special circulation fans of 1.1 kw/h

Heat treatment conveyor furnace for Samorez
Produced China
Voltage 350v50hz
Power consumption 55 kw/h
Weight 6500 kg
Size 1800*1650*1840 mm
Speed of operation 0-500 mm/min
Internal temperature(max) 1050C
Length of incoming product 2,0-80mm
Product output capacity 60-120kg/h



Galvanizing equipment

Any entrepreneur wants to serve the customer for a long time before producing a product. If you also want your saws to serve customers for a long time, we recommend that your saws undergo a special chemical treatment process. This process allows you to rustproof the surface of your product, and if you like, you can also change the color of your product. In order for this equipment to serve you for a long time, we are making it on a special order from PP (polypropylene).

Special PP bath for galvanizing
Country of manufacture China
Voltage 380v50hz
Power consumption 5.5kw/h
Weight 1300 kg
Size 9000*1650*1200mm
The length of the incoming product 2.0-80mm
Product output capacity 60-120kg/hour
Number of private baths 8 pcs
Special lifting device 1 pc



Centrifugal drying equipment

This equipment is designed for drying Samorez products that have gone through the galvanization process, which is the last stage of the process. Your samorez are ready and now you can easily offer them to customers.
