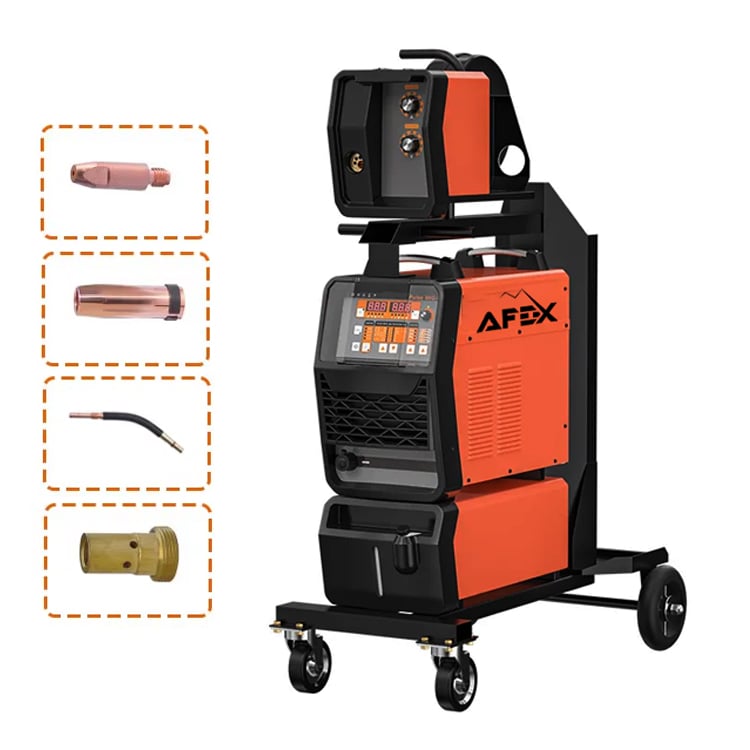

1 / 5Pulse Welding Machine MIG-500AF
15 kg · MIG-500AF · 25 (MMA) / 24.3 (MIG)
Individual offer
- Wire spool capacity
- 15 kg
- Model
- MIG-500AF
- Input power (kW)
- 25 (MMA) / 24.3 (MIG)
- Output current range (A)
- 25-500
- No-load voltage
- 107 ±5 V
- Power factor
- 0.93
Price
Overview
About the equipment
Features

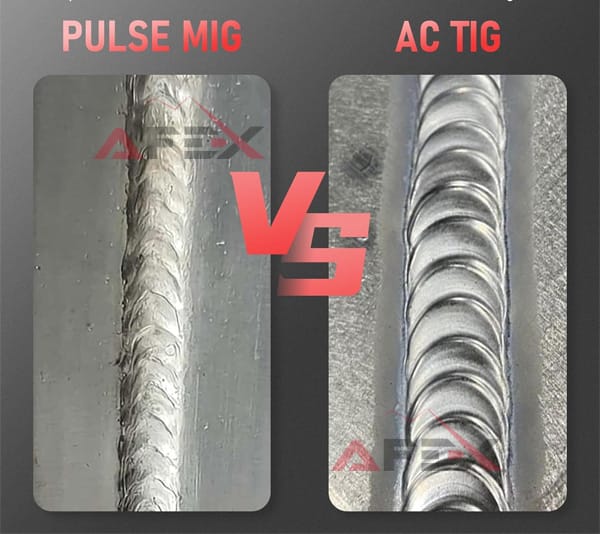

Multi-process inverter welding machine Advanced IGBT inverter technology Multiple welding processes: Double Pulse MIG / Single Pulse MIG / MIG / MMA / Lift TIG DSP control system with the ability to save and recall 100 user-defined parameters Selection/adjustment of welding mode, material, shielding gas and wire diameter Overcurrent and overheating protectionDifference between MIG and TIG welding
Applications
Welding metal parts such as boilers, cranes and beamsStructural steel welding / Heavy industrial equipment manufacturing
Shipbuilding / Construction work / Railway car manufacturing
Aluminum and its alloys, copper and its alloys, stainless steel, carbon steel, etc.

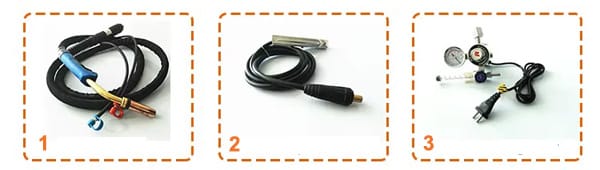

Accessories
- 501D MIG torch
- Ground cable 3m
- Gas regulator
01

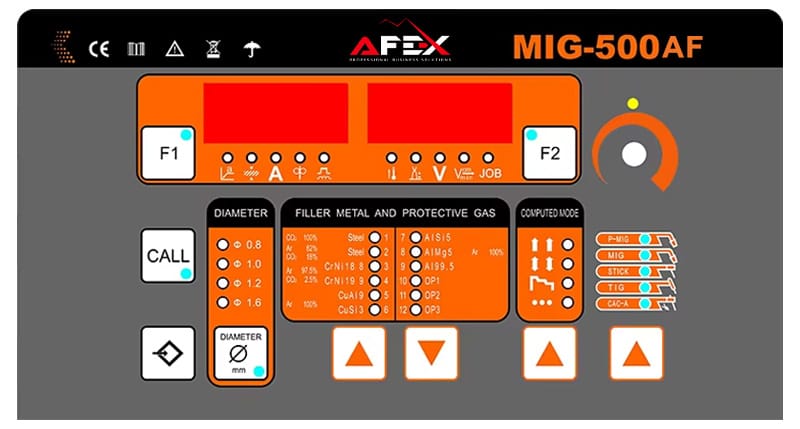

20 parametersControl Panel
- Model
- MIG-500AF
- Input voltage (V)
- 3P-AC380
- Frequency (Hz)
- 50/60
- Function
- MMA / MIG
- Input power (kW)
- 25 (MMA) / 24.3 (MIG)
- Rated input current (A)
- 38 (MMA) / 37 (MIG)
- Output current range (A)
- 25-500
- Duty cycle (%)
- 60% 500A/40V; 100% 387A/35.5V (MMA) 60% 500A/39V; 100% 387A/33.4V (MIG)
- Wire diameter
- 0.8 / 1.0 / 1.2 / 1.6 mm
- Wire spool capacity
- 15 kg
- No-load voltage
- 23 (VRD) / 107 ±5 V
- Efficiency
- 85 %
- Power factor
- 0.93
- Protection class
- IP21
- Insulation class
- F
- Cooling
- Fan / Water
- Net weight
- 66.8 kg
- Gross weight
- 80.4 kg
- Machine dimensions
- 725 × 335 × 810 mm
- Package dimensions
- 780 × 440 × 1030 mm
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPulse Welding Machine MIG-500AFYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Control Panel
20 parameters- Model
- MIG-500AF
- Input voltage (V)
- 3P-AC380
- Frequency (Hz)
- 50/60
- Function
- MMA / MIG
- Input power (kW)
- 25 (MMA) / 24.3 (MIG)
- Rated input current (A)
- 38 (MMA) / 37 (MIG)
- Output current range (A)
- 25-500
- Duty cycle (%)
- 60% 500A/40V; 100% 387A/35.5V (MMA) 60% 500A/39V; 100% 387A/33.4V (MIG)
- Wire diameter
- 0.8 / 1.0 / 1.2 / 1.6 mm
- Wire spool capacity
- 15 kg
- No-load voltage
- 23 (VRD) / 107 ±5 V
- Efficiency
- 85 %
- Power factor
- 0.93
- Protection class
- IP21
- Insulation class
- F
- Cooling
- Fan / Water
- Net weight
- 66.8 kg
- Gross weight
- 80.4 kg
- Machine dimensions
- 725 × 335 × 810 mm
- Package dimensions
- 780 × 440 × 1030 mm
