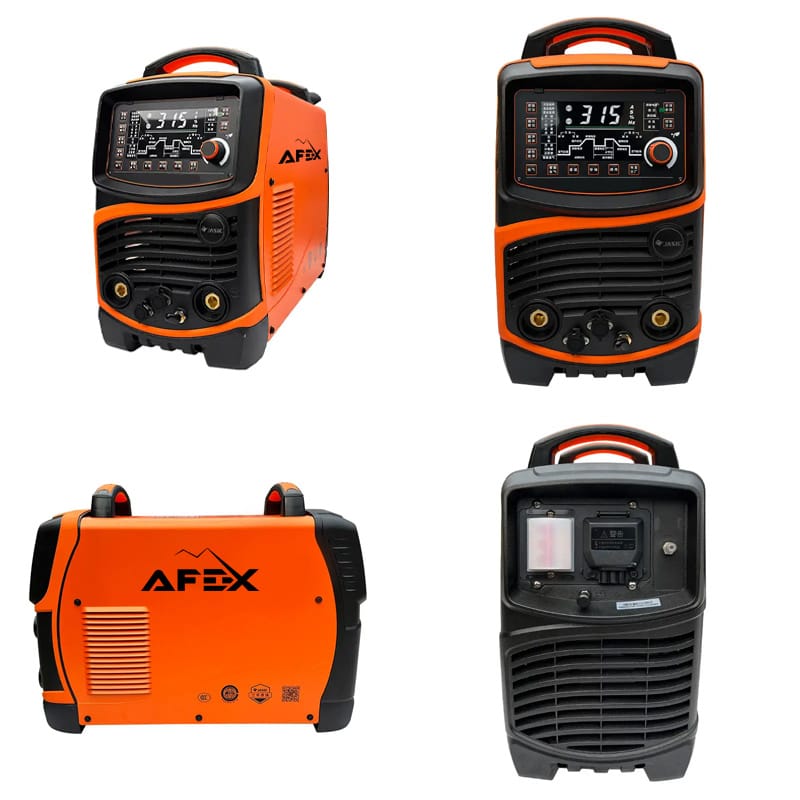

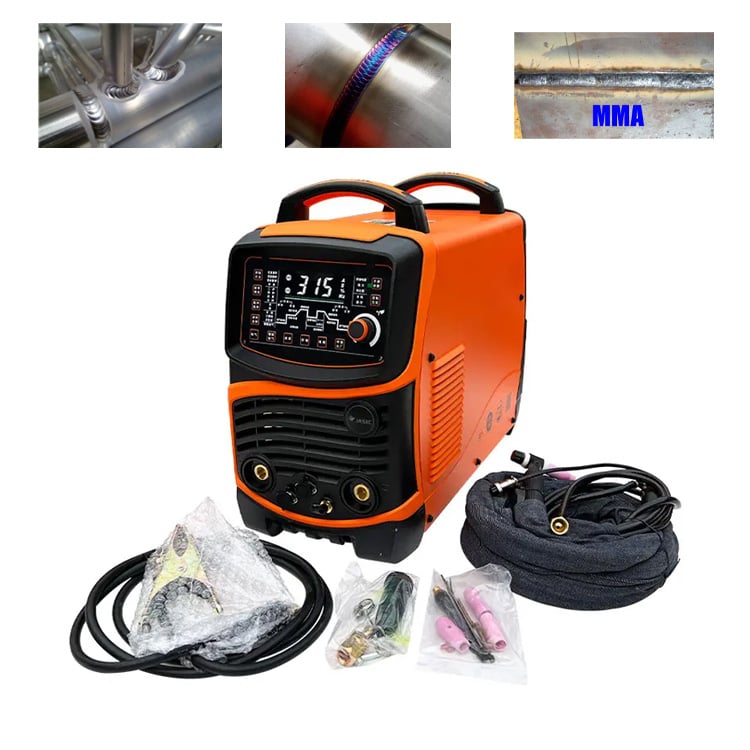

1 / 3Argon TIG Welding Machine (TIG–315 AC/DC)
3-phase AC380V ±15% · 10 kVA · 0.85
Individual offer
- Power supply
- 3-phase AC380V ±15%
- Power
- 10 kVA
- Power factor
- 0.85
- No-load voltage
- 65V
- Dimensions
- 610×268×452 mm
- Weight
- 23.5 kg
Price
Overview
About the equipment
Product Description
- Dash-ARC patented arc ignition technology with millisecond spot welding response.
- World-leading patented inverter technology makes the entire unit more efficient.
- Electronic arc stabilization technology ensures a stable AC welding process.
- Sine wave output, soft arc sound, 20% lower noise.
- Triangle wave output, suitable for thin sheet materials.
- Hybrid output mode increases weld pool depth and reduces tungsten electrode loss.
- Welding process management function with storage for 50 welding parameter sets.
- Can be equipped with a foot pedal, which makes welding easier.
- Smart gas saving: an automatic gas consumption control system reduces costs by 10–20%.
- Smart fan saves energy, reduces noise, limits dust ingress and extends the fan's service life.
Main Functions
AC/DC pulse TIG welding Standard AC/DC TIG welding AC and DC hybrid mode Sine, square and triangle waves Manual welding (with stick electrode) Automatic gas saving Smart fanTechnical Specifications
01
3 parametersInput
- Power supply
- 3-phase AC380V ±15%
- Power
- 10 kVA
- Power factor
- 0.85
02
5 parametersOutput
- No-load voltage
- 65V
- Working current
- 10–315A
- Frequency
- 50–200 Hz
- Cleaning ratio
- 20–60%
- Base current
- 10–90%
03
6 parametersTIG Welding
- DC pulse frequency
- 0.5–200 Hz
- AC pulse frequency
- 0.5–20 Hz
- Gas pre-flow / post-flow time
- 0–5 s / 0–15 s
- Current up-slope and down-slope
- 0–10 s
- Remote control
- available
- Arc ignition
- high-frequency
04
3 parametersManual Welding (MMA)
- Working current
- 10–270A
- Arc force current
- 0–100A
- Hot start current
- 0–80A
05
6 parametersAdditional Information
- Duty cycle at 40°C
- 35%
- Efficiency
- 80%
- Protection class
- IP21S
- Insulation class
- H
- Dimensions
- 610×268×452 mm
- Weight
- 23.5 kg
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentArgon TIG Welding Machine (TIG–315 AC/DC)Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Input
3 parameters- Power supply
- 3-phase AC380V ±15%
- Power
- 10 kVA
- Power factor
- 0.85
02
Output
5 parameters- No-load voltage
- 65V
- Working current
- 10–315A
- Frequency
- 50–200 Hz
- Cleaning ratio
- 20–60%
- Base current
- 10–90%
03
TIG Welding
6 parameters- DC pulse frequency
- 0.5–200 Hz
- AC pulse frequency
- 0.5–20 Hz
- Gas pre-flow / post-flow time
- 0–5 s / 0–15 s
- Current up-slope and down-slope
- 0–10 s
- Remote control
- available
- Arc ignition
- high-frequency
04
Manual Welding (MMA)
3 parameters- Working current
- 10–270A
- Arc force current
- 0–100A
- Hot start current
- 0–80A
Additional Information
6 parameters- Duty cycle at 40°C
- 35%
- Efficiency
- 80%
- Protection class
- IP21S
- Insulation class
- H
- Dimensions
- 610×268×452 mm
- Weight
- 23.5 kg
