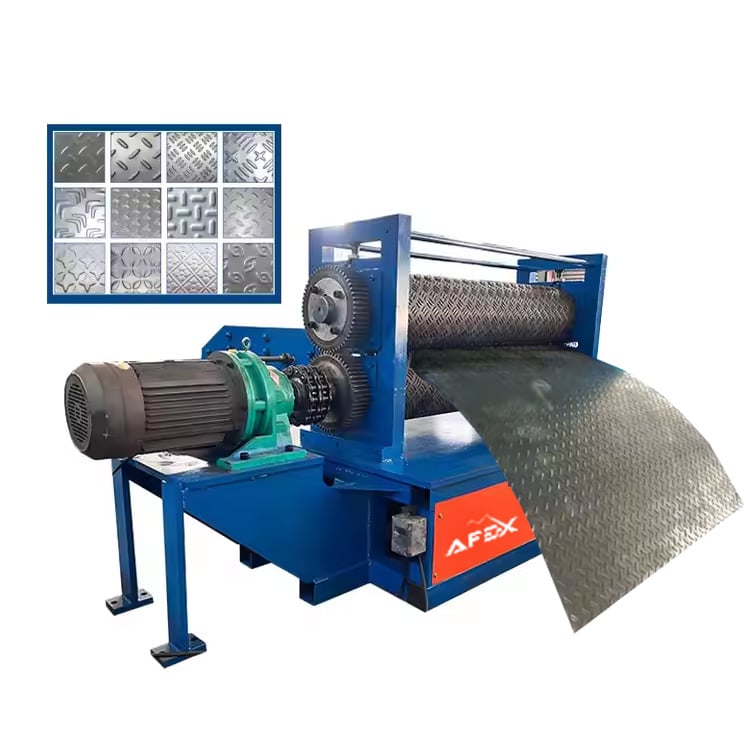

1 / 3Metal Sheet Embossing Machine
A metal embossing machine is used in various industries to create raised or recessed patterns, ornaments or lettering on a metal surface.
- Electrical power
- 11 kW
- Production speed
- 10–15 m/min
- Machine dimensions
- 3600×1200×1700 mm
- Embossing material thickness
- 1-4 mm
- Embossing material width
- 1200 mm
- Roll shaft
- 400 mm solid shaft
Overview
About the equipment
A metal embossing machine is used in various industries to create raised or recessed patterns, ornaments or lettering on a metal surface. Embossing is carried out by deforming a metal sheet or plate under pressure, producing a three-dimensional (3D) relief on its surface. Such patterned metal can be used for decoration, branding, labeling or functional purposes.
The metal sheet is first placed on the feeding table, then fed into the embossing machine, where an anti-slip pattern is pressed onto it. After embossing, the sheet passes through a leveler to ensure flatness and finally reaches the runout table, where it is collected or sent for further processing.
The working process is as follows
- Embossing material
- Aluminum
- Embossing material thickness
- 1-4 mm
- Embossing material width
- 1200 mm
- Roll shaft
- 400 mm solid shaft
- Roll pattern
- According to drawing
- Middle plate
- Archway 80 mm
- Roll material
- 45 carbon steel, fine grinding, heat treatment and hardening, fine engraving
- Roll hardness
- HRC52–58°
- Embossing method
- Upper and lower roll pressure
- Electrical power
- 11 kW
- Embossing pressure adjustment
- Screw pressure
- Transmission
- Gear drive
- Production speed
- 10–15 m/min
- Machine dimensions
- 3600×1200×1700 mm

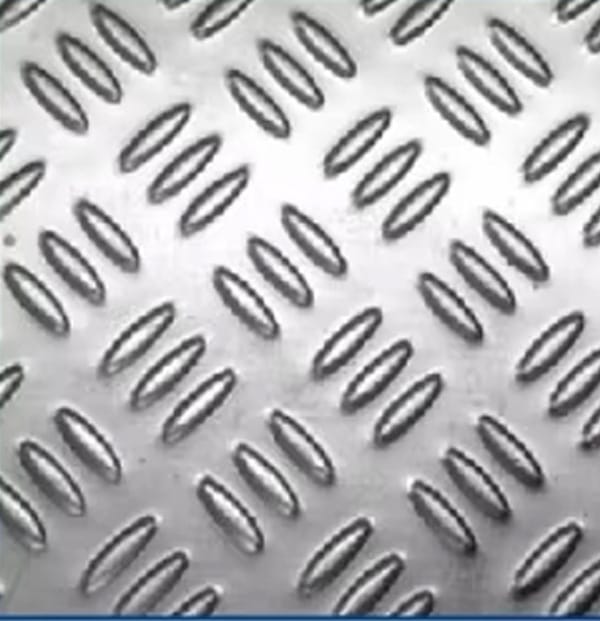

Proposed pattern

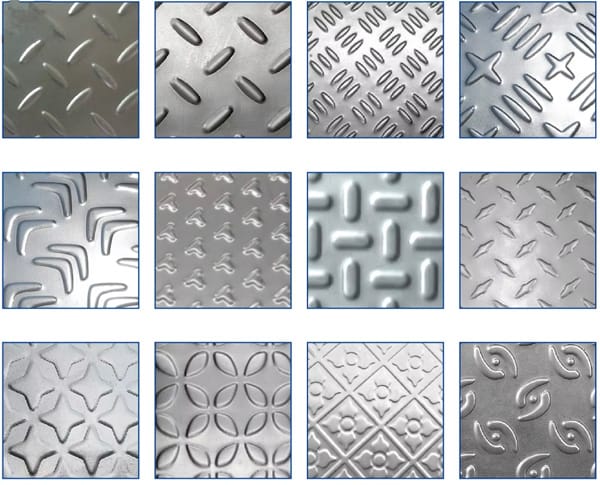

Pattern types
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentMetal Sheet Embossing MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
The working process is as follows
14 parameters- Embossing material
- Aluminum
- Embossing material thickness
- 1-4 mm
- Embossing material width
- 1200 mm
- Roll shaft
- 400 mm solid shaft
- Roll pattern
- According to drawing
- Middle plate
- Archway 80 mm
- Roll material
- 45 carbon steel, fine grinding, heat treatment and hardening, fine engraving
- Roll hardness
- HRC52–58°
- Embossing method
- Upper and lower roll pressure
- Electrical power
- 11 kW
- Embossing pressure adjustment
- Screw pressure
- Transmission
- Gear drive
- Production speed
- 10–15 m/min
- Machine dimensions
- 3600×1200×1700 mm
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
Main components of the metal sheet embossing machine
4 items
- 1Feeding table
- 2Embossing machine
- 3Leveling device
- 4Runout table
