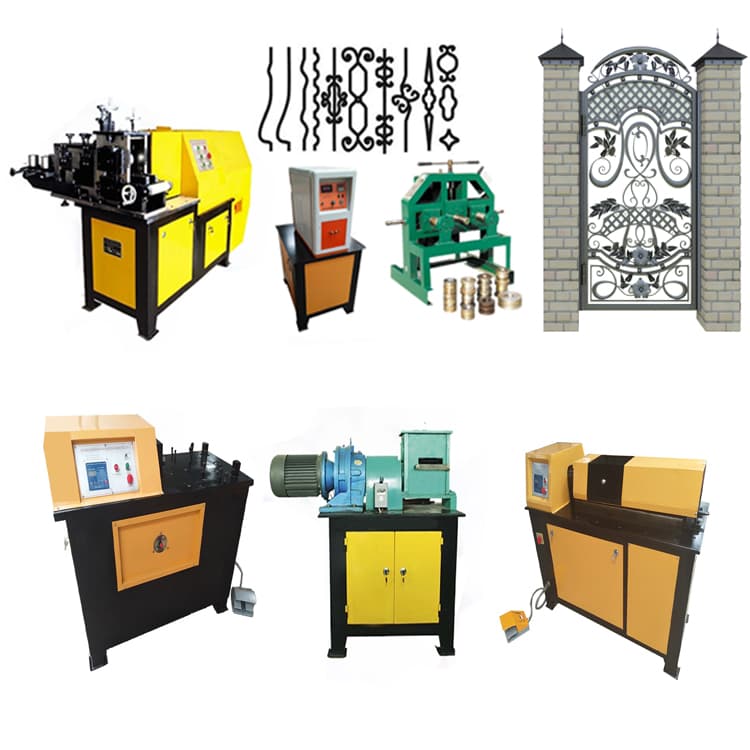

Metal engraving equipment AF-L025
Out of stock
The art of processing metal with various designs is one of the fields that has been developing for several centuries. It is worth noting that, with the help of the equipment recommended by our AFEX-GROUP company, we believe that you will ease your work and provide unique products to your customers. Metalwork is mainly used in fences, gates and many other items needed for the yard. It is worth noting that we have tried to recommend the most used basic equipment to you, we can bring other types of equipment according to your order.
31,750$
Out of stock
PROFILE AND FLAT SURFACE METAL PRINTING EQUIPMENT (AX-M1)
The marks created with this equipment look like cast patterns, that is, they stand out from the detail and attract people.
| Profile and flat surface metal stamping equipment (AX-M1) | |
| Voltage | 380v |
| Motor power | 5.5kw |
| Speed of operation | 380 meters/hour |
| Recommended profile | 60x60mm |
| Pipe diameter size | 60mm |
| Weight | 1050 kg |
| Size | 1980x710x1500mm |
You will need to modify the roller mold in it to change the appearance of the product. Our company will provide you with 15 types of molds and equipment free of charge. With the help of this equipment, you can work with many products to make them look good. Especially in the production of luxurious gates, the benefits of this equipment are very beneficial.
FURNACE FOR HEATING METAL RODS (AX-M2)
This equipment is quite convenient and differs from its predecessors in its speed and the use of electricity instead of natural gas. Heat forming requires additional equipment, but the most important thing is that you can produce high-quality products very quickly with this equipment. Control the heating temperature during operation. you can control the equipment with a pedal.
| Furnace for metal induction heating (AX-M2) | |
| Voltage | 380v50hz |
| Power consumption | 5-20kw |
| Speed of operation | 5-7 seconds per product |
| Recommended prut | up to 35mm |
| Round rod | <F16mm |
| Flat iron | <10x50mm |
| Weight | 230 kg |
| Size | 1250x620X1100mm |
HYDRAULIC HORIZONTAL PRESS WORKING EQUIPMENT FOR METAL (AX-M3)
| Furnace for metal induction heating (AX-M2) | |
| Voltage | 380v50hz |
| Power consumption | 5-20kw |
| Speed of operation | 5-7 seconds per product |
| Recommended prut | up to 35mm |
| Round rod | <F16mm |
| Flat iron | <10x50mm |
| Weight | 230 kg |
| Size | 1250x620X1100mm |
METAL BENDING CIRCLE WORKING EQUIPMENT (AX-M4)
This equipment is mainly useful for making decorative products. It is appropriate that you use the decorations made in it mainly for the stairs and the fences used to wrap some parts, and it depends more on your imagination. Molds designed for 4 different types of products are provided for the equipment. With these molds, it is possible to produce beautiful decorations using both circular and rectangular products.
DECORATIVE METAL BENDING EQUIPMENT (AX-M5)
Decorative bending equipment is also one of the main equipment. The reason is that you can use the horizontal hydraulic bending machine to join the middle parts of the products, that is, the products made on this equipment. In addition, you can create wonderful ornaments by combining the parts produced in this equipment and with different bending angles. 4 different molds are added to the equipment for free so that you can make bends of different diameters.
| Decorative Metal Bending Machine(AX-M5) | |
| Voltage | 380v50hz |
| Power consumption | 2,2kw |
| Speed of operation | 5-9 seconds per product |
| Recommended prut | up to 35mm |
| Round rod | <F16mm |
| Flat iron | <8x50mm |
| Weight | 550 kg |
| Size | 1000*700*1200mm |
HEATED METAL HEAD PRESS PRINTING EQUIPMENT (AX-M6)
You will need this equipment to make a mark on hot metal that resembles the fish tail look that is most popular today. The equipment is tracked by means of two solid shafts moving towards each other by means of centrifugal force with the help of a solid reducer built into it. You will learn more by watching the operation video.
| Hot Metal Head Stamping Machine (AX-M6) | |
| Voltage | 380v50hz |
| Power consumption | 2,2kw |
| Speed of operation | 5-7 seconds per product |
| Recommended prut | up to 35mm |
| Round rod | <F16mm |
| Flat iron | <8x50mm |
| Weight | 380 kg |
| Size | 1250*620*1100m |
PROFILE AND METAL PIPE BENDING EQUIPMENT (AX-M7)
Nowadays, various arch forms are needed for various complex decorations. We recommend the following compact equipment for creating arched shapes. 9 types of molds are added to this equipment with semi-automatic mode of operation. This equipment can be used for pipes and profiles.
| Profile and metal pipe arch bending equipment (AX-M7) | |
| Voltage | 380v50hz |
| Power consumption | 1,1 kw |
| Speed of operation | 10-18 seconds per product |
| Recommended prut | 15mm to 70mm |
| Round rod | <76mm |
| Size | 400 kg |
| Size | 1000*700*1200mm |
DECORATIVE DECORATIVE PRODUCT PRODUCTION EQUIPMENT BY PRESS STAMPING (AX-M8)
Stamping equipment is used to make different types of flowers and leaves from metal. In stamp pressing, a separate mold is made for each detail. Mold prices can range from $400 to $1,500 depending on its complexity.
| Equipment for the production of decorative decorative products by press stamping (AX-M8) | |
| Voltage | 380v50hz |
| Power consumption | 3 kw |
| Speed of operation | 3-5 seconds per product |
| Pressing power | 25t |
| Sheet thickness | <2mm |
| Weight | 950 kg |
| Size | 1100*750*2050 mm |
You can easily start your own business with the help of the equipment that we have recommended to you above. We have tried to recommend the equipment to you as fully as possible. If you need equipment for other additional products, you can contact us.
| Prices+A3:B9 | |
| Profile and flat surface metal stamping equipment (AX-M1) | 9300$ |
| Furnace for heating metal rods (AX-M2) | 3300$ |
| Metal processing equipment using a hydraulic horizontal press (AX-M3) | 3700$ |
| Metal bending machine (AX-M4) | 3700$ |
| Decorative Metal Bending Machine(AX-M5) | 2900$ |
| Hot Metal Head Stamping Machine (AX-M6) | 1700$ |
| Equipment for bending profiles and metal pipes and arches (AX-M7) | 1450$ |
| Equipment for producing decorative decorative products by press stamping 25T(AX-M8) | 5700$ |
| Total price (VAT not included in the price, delivered to Tashkent) | 31750$ |
