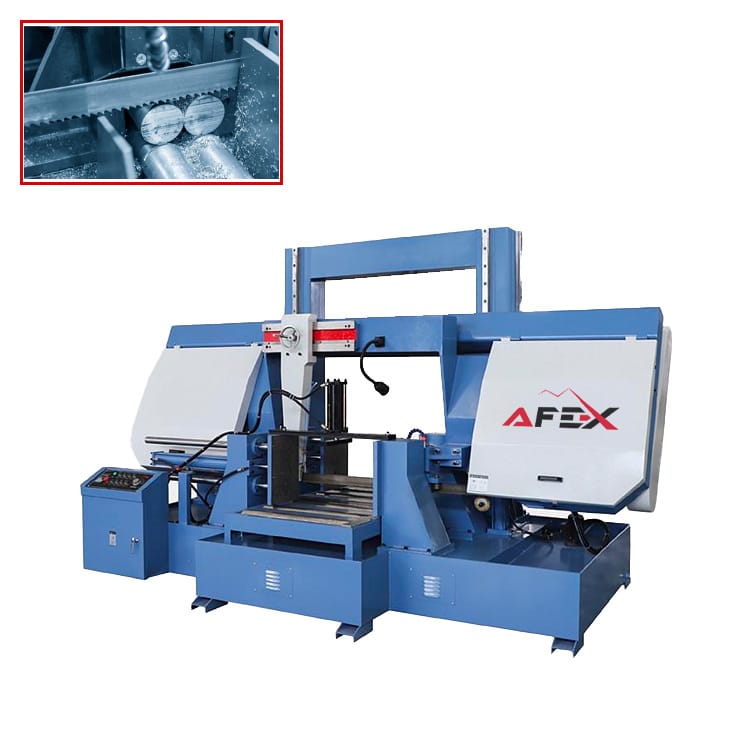

1 / 1Horizontal Band Saw for Metal Cutting AF-GB4280 / AF-GB42100
800W×800H · ●1000 · 0.125 · 0.125 · 7.5 · 11
Individual offer
- Maximum Cutting Capacity (mm)
- 800W×800H · ●1000
- Coolant Pump Motor Power (kW)
- 0.125 · 0.125
- Main Motor (kW)
- 7.5 · 11
- Hydraulic Motor (kW)
- 1.5 · 2.2
- Dimensions (mm)
- 3900×2000×2650 · 4680×3100×3150
- Weight (kg)
- 5200 · 8000
Price
Overview
Key features
- Band Saw Linear Speed (m/min)
20-80 (variable speed) · 20-80 (variable speed)
- Transmission Structure
Hydraulic worm gearbox · Hydraulic worm gearbox
- Clamping Mode
Hydraulic vises · Hydraulic vises
- Cleaning Method
Wire brush and coolant · Wire brush and coolant
About the equipment
01
13 parametersGeneral
- Parameters
- AF-GB4280 · AF-GB42100
- Maximum Cutting Capacity (mm)
- ●800, 800W×800H · ●1000, 1000W×1000H
- Band Saw Linear Speed (m/min)
- 20-80 (variable speed) · 20-80 (variable speed)
- Blade Size (mm)
- 54×1.6×8377 · 67×1.6×10222
- Main Motor (kW)
- 7.5 · 11
- Hydraulic Motor (kW)
- 1.5 · 2.2
- Coolant Pump Motor Power (kW)
- 0.125 · 0.125
- Transmission Structure
- Hydraulic worm gearbox · Hydraulic worm gearbox
- Clamping Mode
- Hydraulic vises · Hydraulic vises
- Blade Tensioning Method
- Hydraulic tensioning · Hydraulic tensioning
- Cleaning Method
- Wire brush and coolant · Wire brush and coolant
- Dimensions (mm)
- 3900×2000×2650 · 4680×3100×3150
- Weight (kg)
- 5200 · 8000
Features
Clamping: 2 hydraulic vises are used to hold the workpieces.
Cutting speed: Thanks to hydraulic control, the blade cuts steadily and precisely. To increase productivity, a special safety valve is installed in front of the speed control valve.
Blade speed: A special technology is used to change the blade speed smoothly. This allows a wide variety of materials to be cut correctly.
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHorizontal Band Saw for Metal Cutting AF-GB4280 / AF-GB42100Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
13 parameters- Parameters
- AF-GB4280 · AF-GB42100
- Maximum Cutting Capacity (mm)
- ●800, 800W×800H · ●1000, 1000W×1000H
- Band Saw Linear Speed (m/min)
- 20-80 (variable speed) · 20-80 (variable speed)
- Blade Size (mm)
- 54×1.6×8377 · 67×1.6×10222
- Main Motor (kW)
- 7.5 · 11
- Hydraulic Motor (kW)
- 1.5 · 2.2
- Coolant Pump Motor Power (kW)
- 0.125 · 0.125
- Transmission Structure
- Hydraulic worm gearbox · Hydraulic worm gearbox
- Clamping Mode
- Hydraulic vises · Hydraulic vises
- Blade Tensioning Method
- Hydraulic tensioning · Hydraulic tensioning
- Cleaning Method
- Wire brush and coolant · Wire brush and coolant
- Dimensions (mm)
- 3900×2000×2650 · 4680×3100×3150
- Weight (kg)
- 5200 · 8000
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
