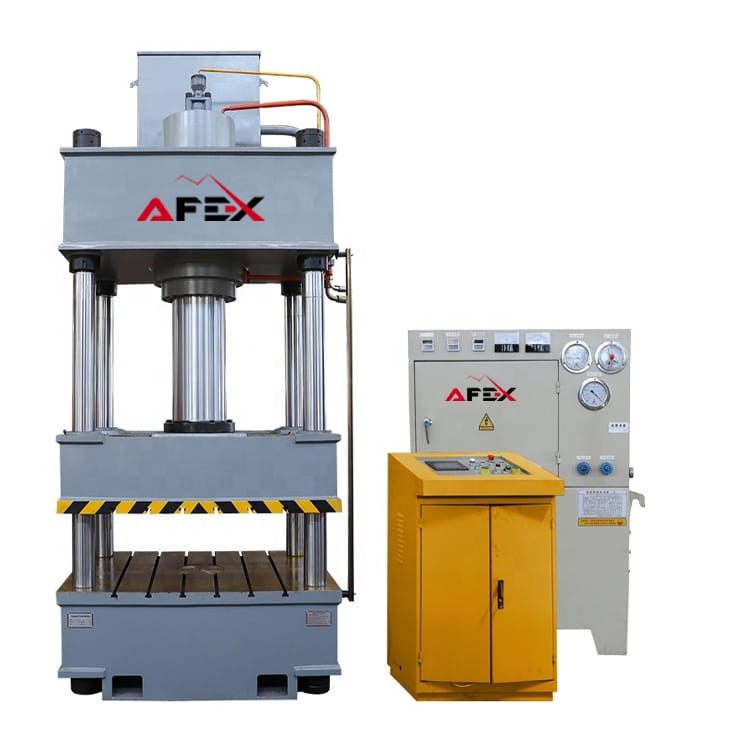

1 / 1Four-Column Hydraulic Press AFP-200T
The four-column hydraulic press is a powerful and reliable hydraulic press designed for industrial needs, performing pressing, forming and…
- Model
- AFP-200T
- Motor Power
- 7.5 kW
- Voltage
- 380V 50/60 Hz
- Descending Speed
- 110 mm/s
- Working Speed
- 6-12 mm/s
- Return Speed
- 100 mm/s
Overview
About the equipment
The four-column hydraulic press is a powerful and reliable hydraulic press designed for industrial needs, performing pressing, forming and joining operations with a main force of up to 100 tons. Its four columns ensure structural stability and precise movement, delivering excellent results even under heavy loads.
General
- Model
- AFP-200T
- Voltage
- 380V 50/60 Hz
- Motor Power
- 7.5 kW
- Pressing Force
- 200 tons
- Ejection Force
- 50 tons
- Ejector Stroke
- 250 mm
- Slide Stroke
- 500 mm
- Maximum Open Height
- 900 mm
- Worktable Size L-R (between columns)
- 800 mm
- Worktable Size F-B (front to back)
- 800 mm
- Descending Speed
- 110 mm/s
- Working Speed
- 6-12 mm/s
- Return Speed
- 100 mm/s
- Machine Weight
- 4200 kg
- Machine Dimensions
- 4100 × 1200 × 1100 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentFour-Column Hydraulic Press AFP-200TYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
15 parameters- Model
- AFP-200T
- Voltage
- 380V 50/60 Hz
- Motor Power
- 7.5 kW
- Pressing Force
- 200 tons
- Ejection Force
- 50 tons
- Ejector Stroke
- 250 mm
- Slide Stroke
- 500 mm
- Maximum Open Height
- 900 mm
- Worktable Size L-R (between columns)
- 800 mm
- Worktable Size F-B (front to back)
- 800 mm
- Descending Speed
- 110 mm/s
- Working Speed
- 6-12 mm/s
- Return Speed
- 100 mm/s
- Machine Weight
- 4200 kg
- Machine Dimensions
- 4100 × 1200 × 1100 mm
