1 / 1Four-Column Hydraulic Press AFP-100T
The four-column hydraulic press is a powerful, reliable hydraulic press designed for industrial use, performing pressing, forming and…
- Model
- AFP-100T
- Motor power
- 7.5 kW
- Voltage
- 380 V 50/60 Hz
- Descending speed
- 100 mm/s
- Working speed
- 16-24 mm/s
- Return speed
- 150 mm/s
Overview
About the equipment

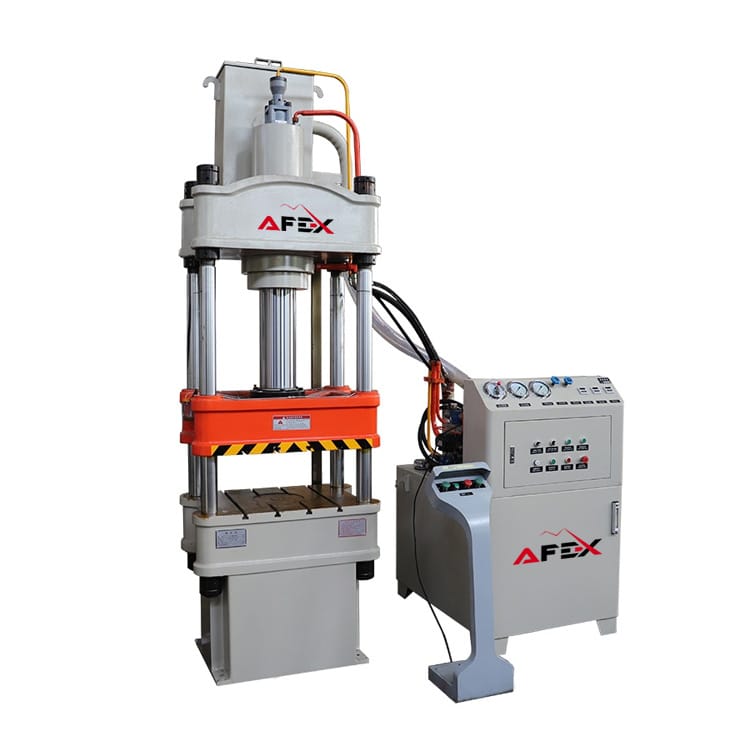

The four-column hydraulic press is a powerful, reliable hydraulic press designed for industrial use, performing pressing, forming and joining operations on materials with a main force of up to 100 tons. Its four columns ensure structural stability and precise movement, delivering excellent results even under heavy loads.
General
- Model
- AFP-100T
- Voltage
- 380 V 50/60 Hz
- Motor power
- 7.5 kW
- Pressing force
- 100 tons
- Ejector force
- 20 tons
- Ejector stroke
- 200 mm
- Slide stroke
- 500 mm
- Max. opening height
- 800 mm
- Table size L-R (between columns)
- 720 mm
- Table size F-B (front to back)
- 580 mm
- Descending speed
- 100 mm/s
- Working speed
- 16-24 mm/s
- Return speed
- 150 mm/s
- Machine weight
- 2400 kg
- Machine dimensions
- 3800x1200x900 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentFour-Column Hydraulic Press AFP-100TYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
15 parameters- Model
- AFP-100T
- Voltage
- 380 V 50/60 Hz
- Motor power
- 7.5 kW
- Pressing force
- 100 tons
- Ejector force
- 20 tons
- Ejector stroke
- 200 mm
- Slide stroke
- 500 mm
- Max. opening height
- 800 mm
- Table size L-R (between columns)
- 720 mm
- Table size F-B (front to back)
- 580 mm
- Descending speed
- 100 mm/s
- Working speed
- 16-24 mm/s
- Return speed
- 150 mm/s
- Machine weight
- 2400 kg
- Machine dimensions
- 3800x1200x900 mm
