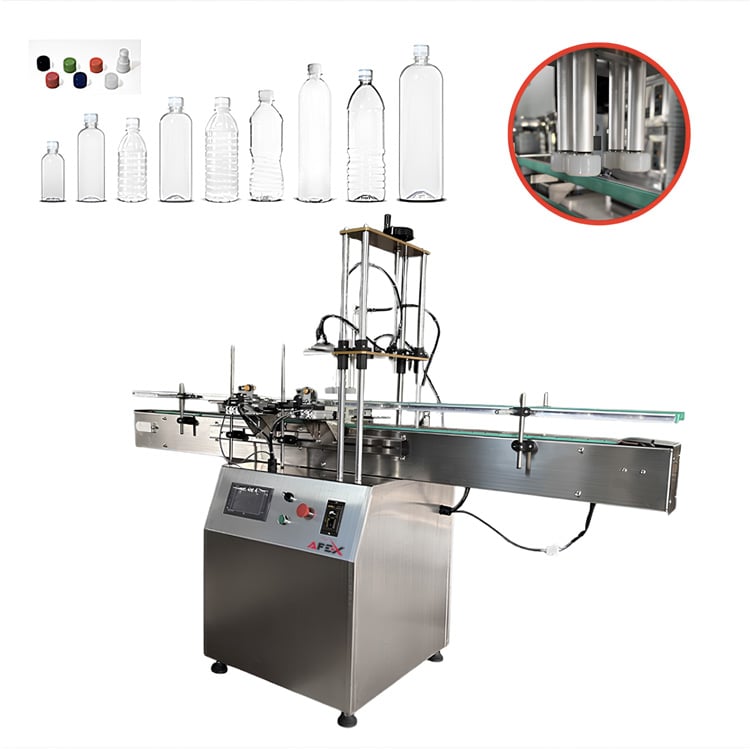

1 / 2Conveyor Capping Machine
500 W · AC 220 V · 1700×850×1400 mm
Individual offer
- Power
- 500 W
- Operating voltage
- AC 220 V
- Machine dimensions
- 1700×850×1400 mm
- Weight
- 90 kg
- Bottle height
- 50–200 mm
- Cap diameter
- 20–60 mm
Price
Overview
About the equipment
01
8 parametersGeneral
- Bottle height
- 50–200 mm
- Cap diameter
- 20–60 mm
- Operating speed
- 20–60 bottles per minute (depending on bottle and cap type)
- Operating voltage
- AC 220 V / 110 V, 50–60 Hz
- Power
- 500 W
- Working pressure
- 0.4–0.6 MPa
- Machine dimensions
- 1700×850×1400 mm
- Weight
- 90 kg

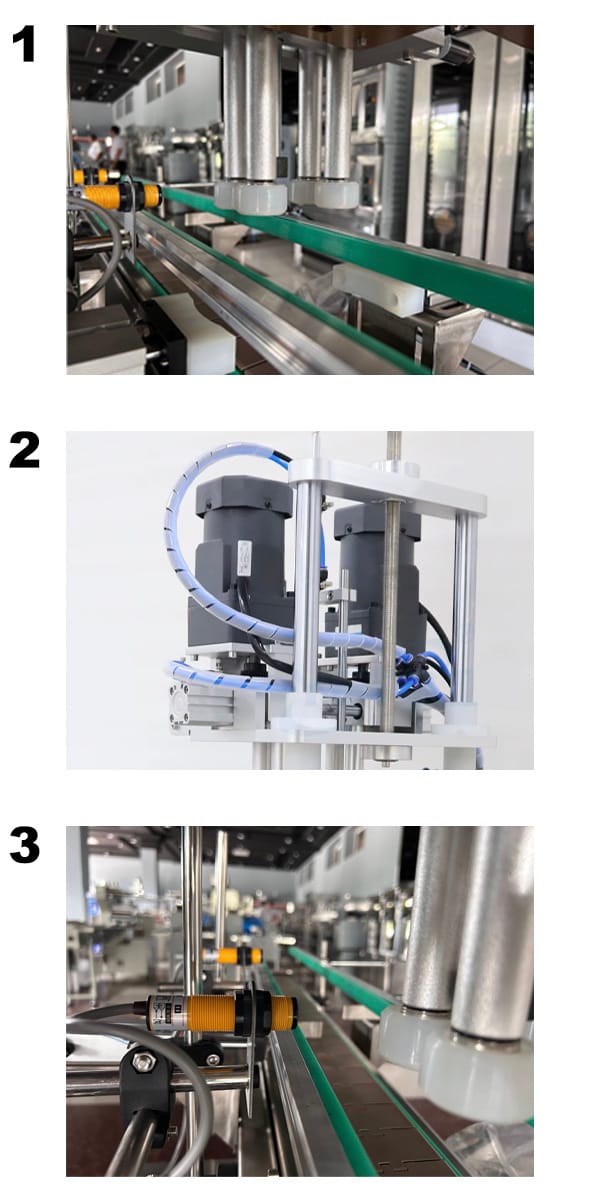

Machine parts
- The four-wheel capping head is suitable for various bottles, such as spray bottles, pump bottles, dropper bottles, trigger sprayer bottles and others.
- The twin-motor cap screwing system is mainly used to screw caps on. The rotation speed is adjustable, and the tightening force is controlled by a cylinder.
- Sensors: 2 sensors are installed on the machine. They automate operation: when each container reaches the nozzle, the sensor extends the stopper parts, giving the container time to be capped.
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentConveyor Capping MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
8 parameters- Bottle height
- 50–200 mm
- Cap diameter
- 20–60 mm
- Operating speed
- 20–60 bottles per minute (depending on bottle and cap type)
- Operating voltage
- AC 220 V / 110 V, 50–60 Hz
- Power
- 500 W
- Working pressure
- 0.4–0.6 MPa
- Machine dimensions
- 1700×850×1400 mm
- Weight
- 90 kg
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Packaging equipment

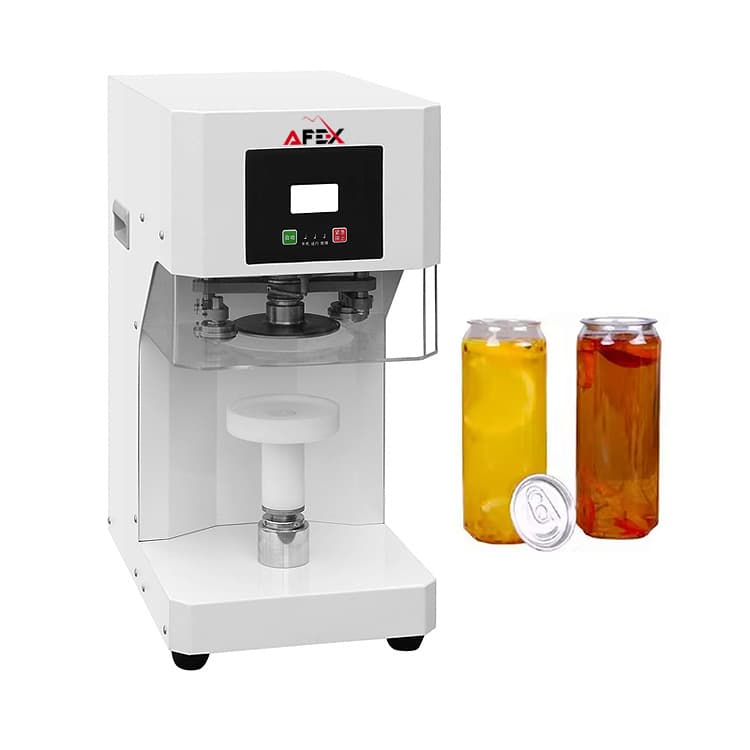

Aluminum Lid Sealing Machine for Containers (Semi-Automatic)
Details →
Packaging equipment

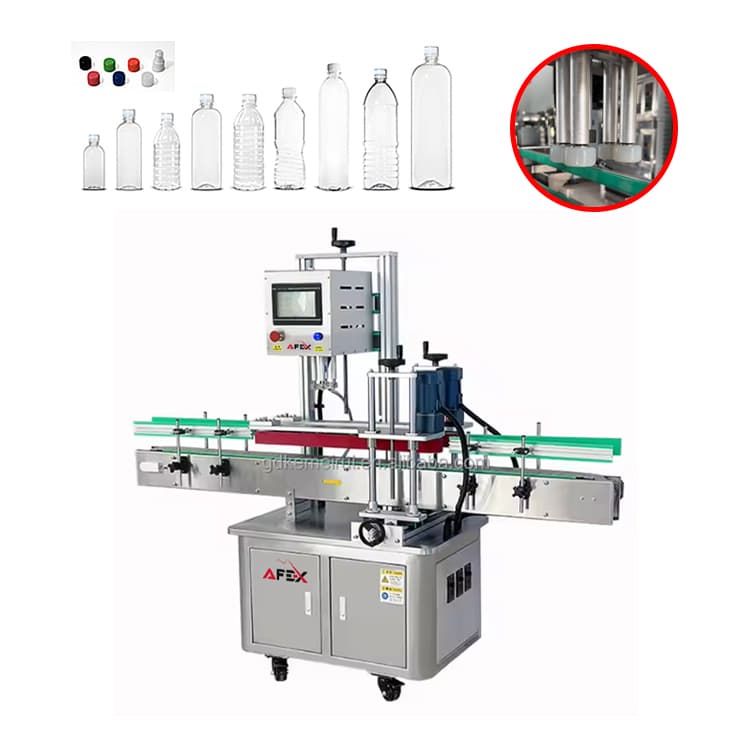

PLC-Controlled Capping Machine
Details →
Packaging equipment

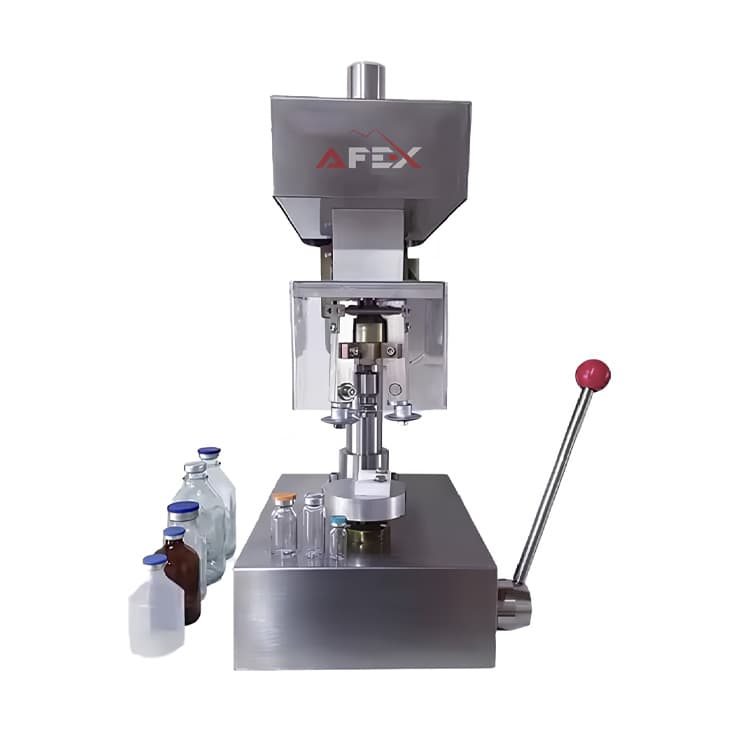

Medical Vial Capping Machine
Details →
Packaging equipment

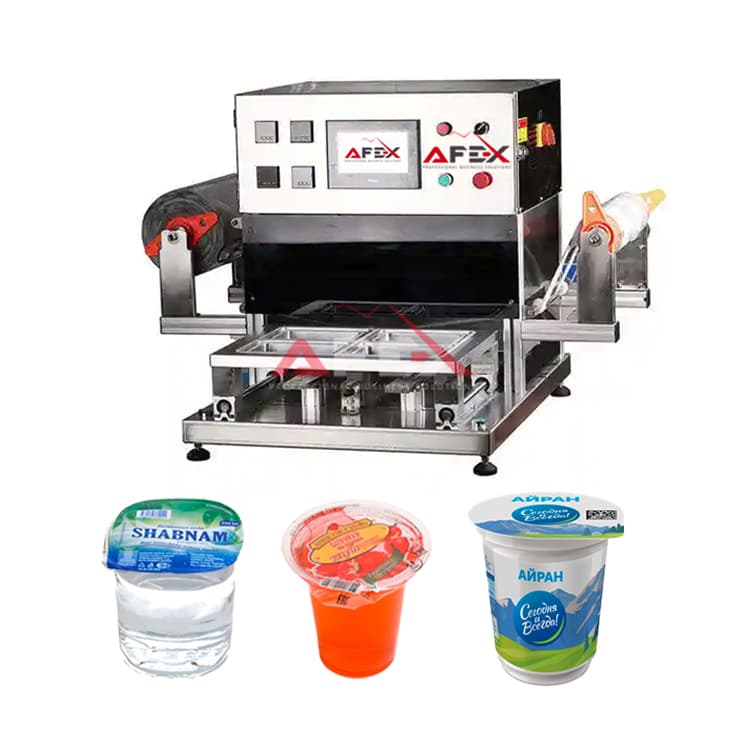

Film sealing machine for plastic containers, 4 molds
