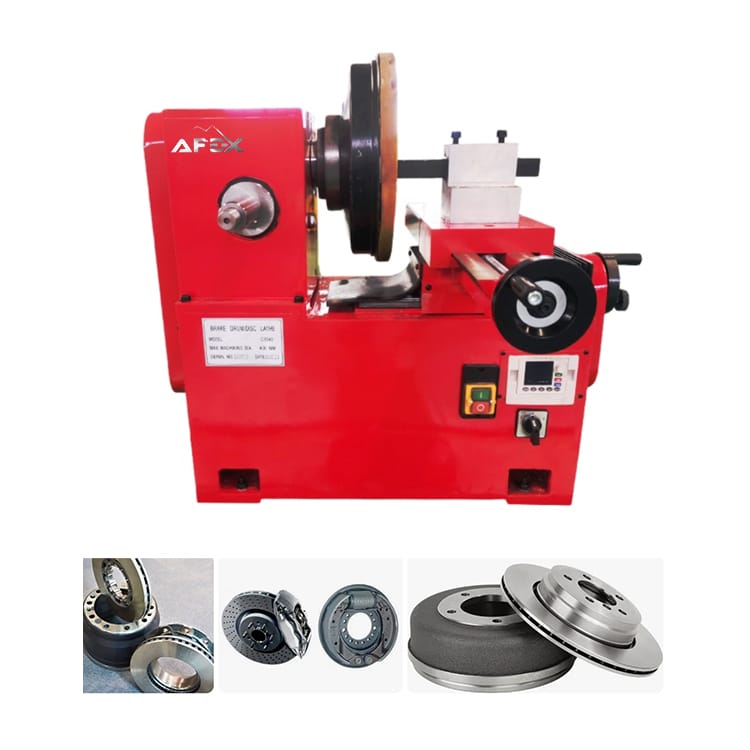

1 / 1Brake Disc and Drum Lathe
Description The FRT340 is a professional lathe designed for resurfacing and truing automotive brake discs and brake drums.
- Motor Power
- 0.75 kW
- Model
- FRT340
- Workpiece Rotation Speed
- 0–150 rpm
- Weight
- 190 kg
- Brake Drum Machining Diameter
- 180–380 mm
- Brake Disc Machining Diameter
- 180–450 mm
Overview
Key advantages
- High-precision machining of brake discs and drums
- Restores brake system efficiency
- A rotation speed of 0–150 rpm provides various machining modes
- Robust and stable metal construction
- Easy to use and operate
- High machining accuracy produces a smooth surface
About the equipment
Description The FRT340 is a professional lathe designed for resurfacing and truing automotive brake discs and brake drums. It machines worn or deformed braking surfaces with high precision, restoring their performance. The machine is widely used in car service centers, maintenance stations and auto repair workshops. A smooth rotation system and a precise feed mechanism ensure high-quality machining. The robust design and reliable electric motor allow long-term continuous operation.
General
- Model
- FRT340
- Brake Drum Machining Diameter
- 180–380 mm
- Brake Disc Machining Diameter
- 180–450 mm
- Workpiece Rotation Speed
- 0–150 rpm
- Maximum Tool Travel
- 100 mm
- Feed Rate
- 0.08 mm/rev
- Motor Power
- 0.75 kW
- Weight
- 190 kg
- Application
- Turning automotive brake discs and drums
- Operation Type
- Electric lathe
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentBrake Disc and Drum LatheYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Model
- FRT340
- Brake Drum Machining Diameter
- 180–380 mm
- Brake Disc Machining Diameter
- 180–450 mm
- Workpiece Rotation Speed
- 0–150 rpm
- Maximum Tool Travel
- 100 mm
- Feed Rate
- 0.08 mm/rev
- Motor Power
- 0.75 kW
- Weight
- 190 kg
- Application
- Turning automotive brake discs and drums
- Operation Type
- Electric lathe
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
