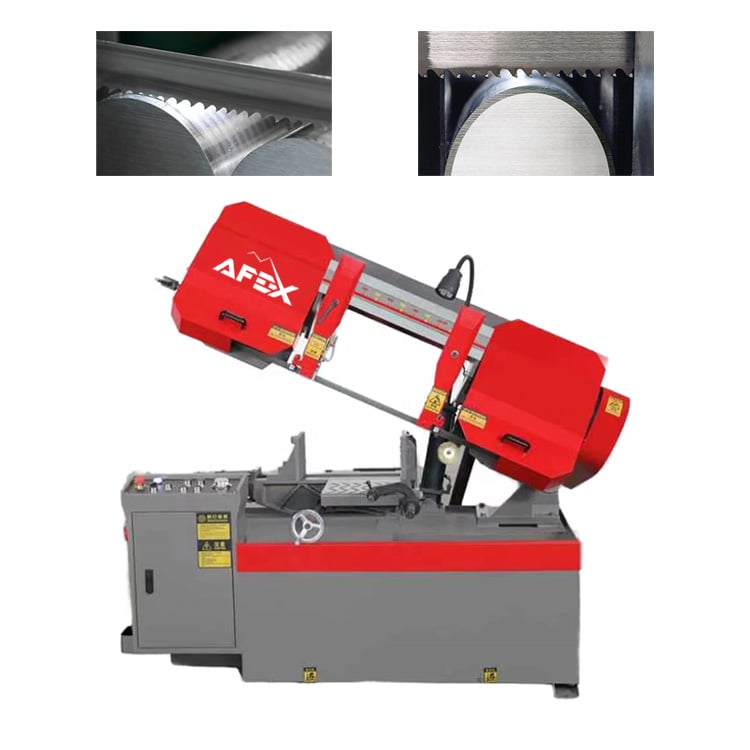

1 / 2Band Saw Machine AGZ-4028
280 mm · 250 × 390 mm · 2.2 kW
Individual offer
- Max. cutting capacity (round)
- 280 mm
- Max. cutting capacity (rectangular)
- 250 × 390 mm
- Main motor power
- 2.2 kW
- Hydraulic motor power
- 0.55 kW
- Coolant pump motor power
- 0.04 kW
- Blade speed
- 68 m/min
Price
Overview
About the equipment
Features
- High sawing efficiency: different sawing speeds can be selected — 26 m/min, 49 m/min and 68 m/min. The speed is set according to the type and thickness of the metal, which improves sawing efficiency.
- Long blade life: roller bearings and hard-alloy (carbide) blade guides are used to reduce friction between the saw blade and the guides, effectively extending blade life.
- High sawing accuracy: the machine is equipped with high-precision saw blade guides that prevent the blade from drifting and vibrating during sawing and ensure cutting accuracy.
- Easy operation: the hydraulic semi-automatic control system makes operation even easier and more convenient. The machine also features clear control buttons and displays, allowing operators to perform various settings and operations with ease.
- Compact design: the horizontal layout and floor-standing construction make the machine more compact, so it takes up little space and is convenient to install and use.
01
11 parametersGeneral
- Max. cutting capacity (round)
- 280 mm
- Max. cutting capacity (rectangular)
- 250 × 390 mm
- Blade size
- 3505 × 27 × 0.9 mm
- Blade speed
- 26 / 49 / 68 m/min
- Voltage
- 380 V, 50 Hz, 3-phase
- Main motor power
- 2.2 kW
- Hydraulic motor power
- 0.55 kW
- Coolant pump motor power
- 0.04 kW
- Worktable height
- 710 mm
- Vise (jaw) height
- 163 mm
- Weight
- 800 kg
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentBand Saw Machine AGZ-4028Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
11 parameters- Max. cutting capacity (round)
- 280 mm
- Max. cutting capacity (rectangular)
- 250 × 390 mm
- Blade size
- 3505 × 27 × 0.9 mm
- Blade speed
- 26 / 49 / 68 m/min
- Voltage
- 380 V, 50 Hz, 3-phase
- Main motor power
- 2.2 kW
- Hydraulic motor power
- 0.55 kW
- Coolant pump motor power
- 0.04 kW
- Worktable height
- 710 mm
- Vise (jaw) height
- 163 mm
- Weight
- 800 kg
