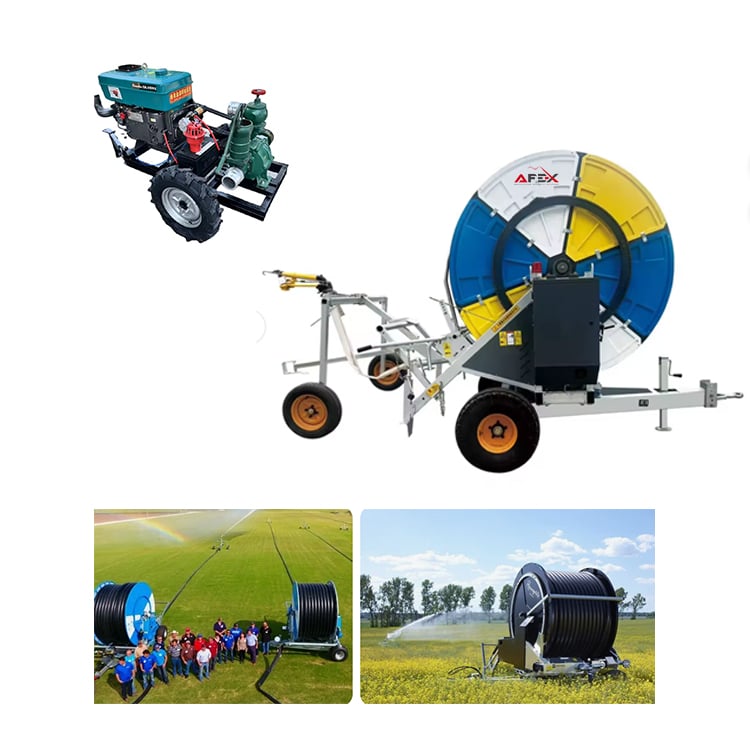

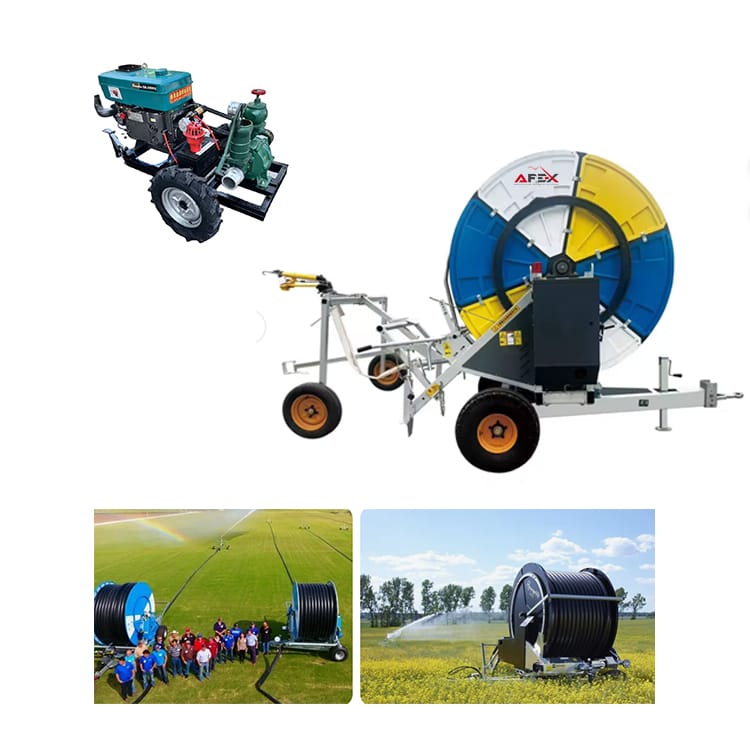

Automatic Irrigation and Water Spraying Machine

Designed for automatic irrigation and water spraying systems, the 75RT-500 diesel-engine water pump delivers high efficiency and wide coverage. This equipment is a reliable solution for irrigating large areas and supplying water for industrial and agricultural needs. Thanks to its powerful diesel engine, it works efficiently even in areas without a power supply. The ability to spray water over long distances and generate high pressure makes this model especially convenient for farms and irrigation systems. Stable operation, robust construction and high productivity are among the main advantages of this equipment.

Benefits for the customer: effective irrigation over long distances, high pressure and strong flow, operation anywhere thanks to independence from the power grid, coverage of large areas in a short time, a robust and durable design, easy operation and convenient maintenance.

01

General

16 parameters

Model

75RT-500

Pump type

Diesel-engine water pump

Power

30 HP

Matched power

22.5 kW

Rotation speed

2900 rpm

Flow rate

25 m³/h

Max. flow range

16–36 m³/h

Head

80 m

Lift

70–84 m

Inlet pressure

0.25–0.5 MPa

Spray distance

28–43 m

Effective irrigation length

≥ 500 m

Hose size (PE pipe)

75 mm × 500 m

Nozzle diameter

14–26 mm

Machine dimensions

5190×2300×3400 mm

Weight

2100 kg
