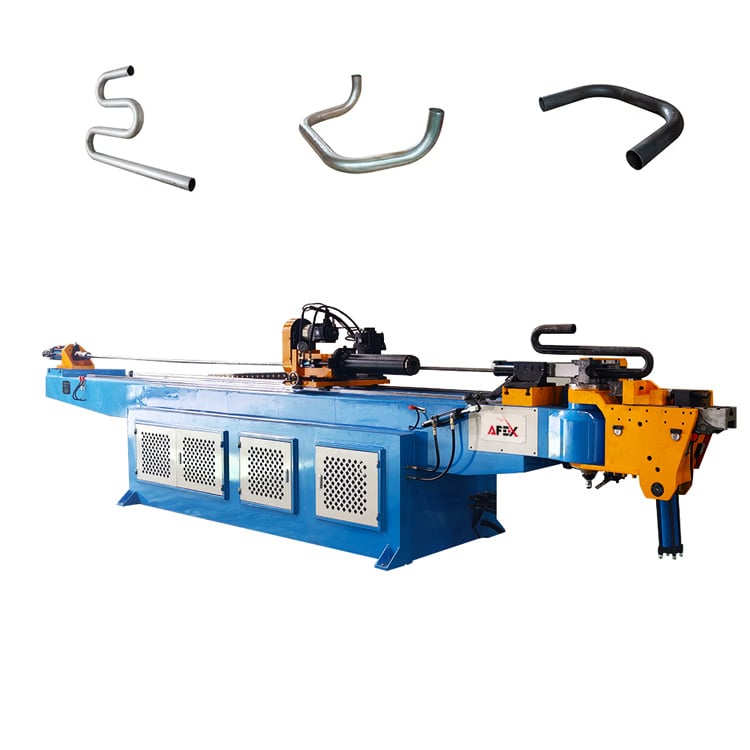

Automatic CNC Pipe and Profile Bending Machine

Modern CNC pipe bending machine – a convenient and reliable solution Our CNC pipe bending machines automate the production process. Fast and precise operation saves both time and costs. Working with the program is very simple – the operator just loads the pipe and selects the required program. The machine does the rest. The ideal choice for efficient, high-quality fulfilment of both small and large orders. Capable of processing materials such as low-carbon steel, stainless steel and aluminum. Widely used in the manufacture of vehicles, furniture, cooling, heating and insulation systems. Simplify and speed up your production with our company.

01

General

21 parameters

Maximum bending capacity, standard bending (with 4 mm wall thickness and bending radius greater than 2.5D)

Φ63 mm (carbon steel); Φ50 mm (stainless steel); 42 mm × 42 mm (carbon steel); 30 mm × 30 mm (stainless steel); 50 mm × 30 mm (carbon steel); 40 mm × 20 mm (stainless steel); 30 mm (steel bar)

Maximum bending radius

R300 mm

Minimum bending radius

Depending on pipe diameter

Maximum bending angle

190°

Maximum feeding length

2700 mm

Pipe feeding method

Direct feeding / clamp feeding

Bending speed

Max. 80°/s

Rotation speed

Max. 160°/s

Feeding speed

Max. 1000 mm/s

Bending accuracy

±0.1°

Rotation accuracy

±0.1°

Feeding accuracy

±0.1 mm

Data input method

Working values (Y, B, C)

Coordinate input

X, Y, Z coordinate input

Bending method

Hydraulic bending (2A)

Pipe rotation servo motor power

1 kW

Feeding servo motor power

2 kW

Hydraulic motor power

7.5 kW

Maximum oil pressure

14 MPa

Weight

3500 kg

Dimensions

4500 × 1100 × 1750 mm

Equipment Component Information

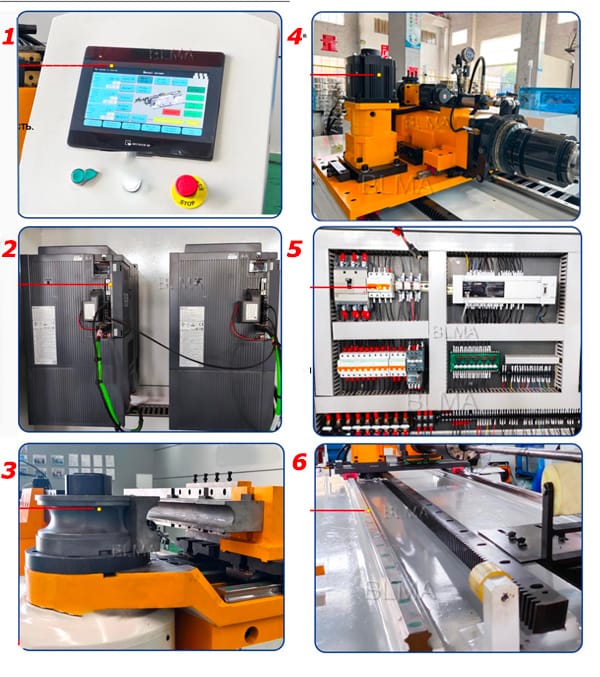

1. CNC PLC Controller The controller with modern software precisely sets the bending parameters and ensures high accuracy and repeatability. The user-friendly interface speeds up setup. The built-in memory can store many programs, which is very convenient for series production. 2. Mitsubishi (Japan) servo drives Our pipe bending machines use servo drives made by Mitsubishi. They precisely control the servo motors, ensuring high accuracy and stability. These technologies meet the requirements of modern production and increase the productivity of the machine. 3. Tooling and dies Tooling for the pipe bending machine (dies, straightening tools, rollers) helps preserve the shape of the pipe, prevents defects and suits various diameters and bending radii. This increases production efficiency. 4. Pipe and profile feeding carriage The pipe feeding unit ensures precise feeding and rotation of the material, reduces manual work, increases production capacity and lowers the risk of errors and defects. 5. Electrical system Equipped with reliable Schneider components made in France, the machine has a long service life and is protected against overloads and short circuits. The modular system is easily adapted to production needs. 6. Linear guides and gear transmissions The linear guide made by Hiwin (Taiwan) ensures precise and stable movement of the bending carriage. Thanks to its high strength and special coating, it is wear-resistant, has a long service life and reduces friction. 7. Main motor

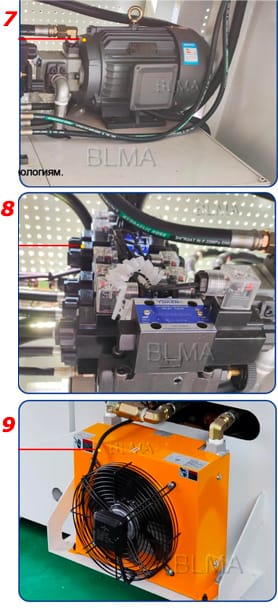

The main motor from SIEMENS or Yuanbang (Taiwan) provides pipe bending machines with stable operation, high productivity and cost efficiency. It withstands heavy loads and has a long service life thanks to modern technology and high-quality materials.

8. Valve system
The valve system precisely controls flow and pressure, providing high wear resistance, load capacity and stability, which guarantees the quality of pipe bending.

9. Oil cooler
The oil cooler prevents the oil from overheating, ensuring stable operation and a long service life of the machine. It maintains the required temperature, reduces the risk of breakdowns and increases productivity.

Standard components

02

General

13 parameters

Component

Brand / Country

PLC

Mitsubishi / Easycat, Japan / Taiwan

Touch screen

Winview / Easycat, Taiwan

Servo motor

Yaskawa / Mitsubishi / Easycat, Japan / Taiwan

Servo drive

Yaskawa / Mitsubishi / Easycat, Japan / Taiwan

Gear reducer

RV / Xingxing, Taiwan

Main electrical components

Schneider / Omron, France / Japan

Hydraulic motor

Yuanbang / Siemens, Germany / Taiwan

Valves

Seven Ocean / Yuken, Taiwan / Japan

Vane pump

Kaida / Sunny, Taiwan / USA

Sealing element (seal)

NOK, Japan

Gear rack

YYC, Taiwan

Linear guide rail

HIWIN, Taiwan

03

General

6 parameters

Additional information

Value / Description

Operating temperature range

-15°C to +45°C

Operating environment humidity

10% – 95%

Main structure

Welded from steel plate, sandblasted, high-temperature treated

Post-treatment

Anti-deformation treatment

Manufacturing standards

ISO 9001
