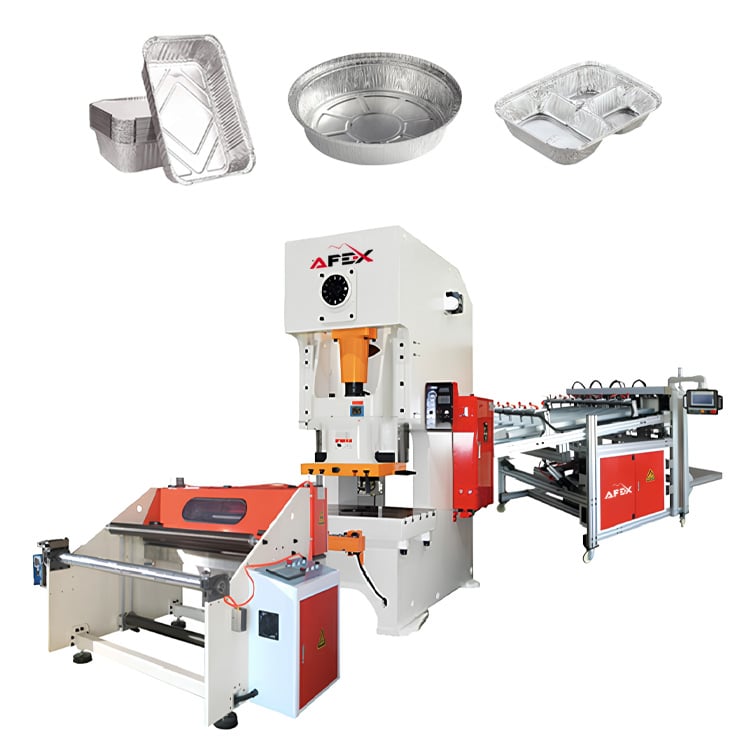

1 / 5Aluminum Foil Container Making Machine
The aluminum foil food container making machine is automated equipment that produces disposable aluminum containers in a mold with high…
- Total power
- 1.5 kW
- Material feeding speed
- 20 m/min
- Forming speed
- 50–70 pcs/min
- Material feeding length
- 0.1 to 9999 mm
- Weight
- 580 kg
- Power
- 5.5 kW
Overview
About the equipment
The aluminum foil food container making machine is automated equipment that produces disposable aluminum containers in a mold with high precision and speed. It is widely used in the food industry and is an ideal solution for making containers for baked goods, semi-finished products and ready meals. Key advantages: Hygienic and safe production — works with materials suitable for direct food contact. Automatic operation Flexibility — molds of various sizes and shapes can be installed. Stands out for its energy efficiency and low maintenance costs. This machine is well suited to small and medium-sized manufacturers and ensures high productivity.
Production line workflow (process)
-
Automatic material feeding and lubrication:
The process begins with loading the foil roll into the machine. The automatic feeder continuously guides the foil towards the mold at a set speed. At this stage, the foil is coated with a special oil, which is necessary for smooth forming and a long mold service life. -
Forming in the mold:
The foil is fed under the press, where the mold gives it a precise shape. At this stage, the size, depth and edges of the container are formed. Pressing is carried out with high precision and speed (50–70 pcs/min). -
Finished product collection:
The formed containers are neatly stacked by an automatic stacking device. This reduces labor costs and prepares the products for the next stage — packaging.

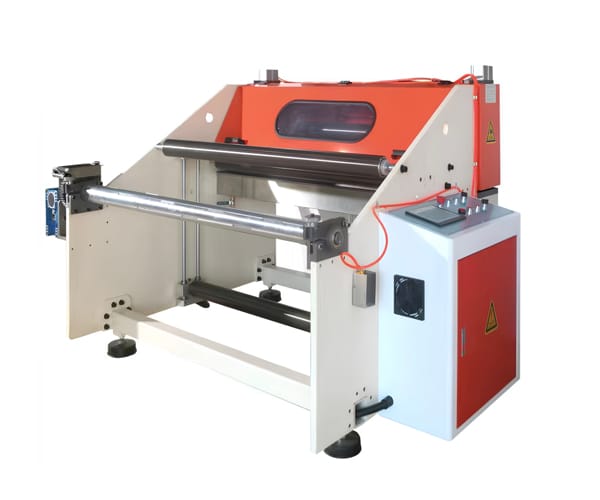

Automatic material feeding and lubrication unit
- Manufacturer
- China
- Material width
- 900 mm
- Material thickness
- 0.03 – 0.2 mm
- Material feeding speed
- 20 m/min
- Material feeding length
- 0.1 to 9999 mm
- Forming speed
- 50–70 pcs/min
- Total power
- 1.5 kW
- Weight
- 580 kg

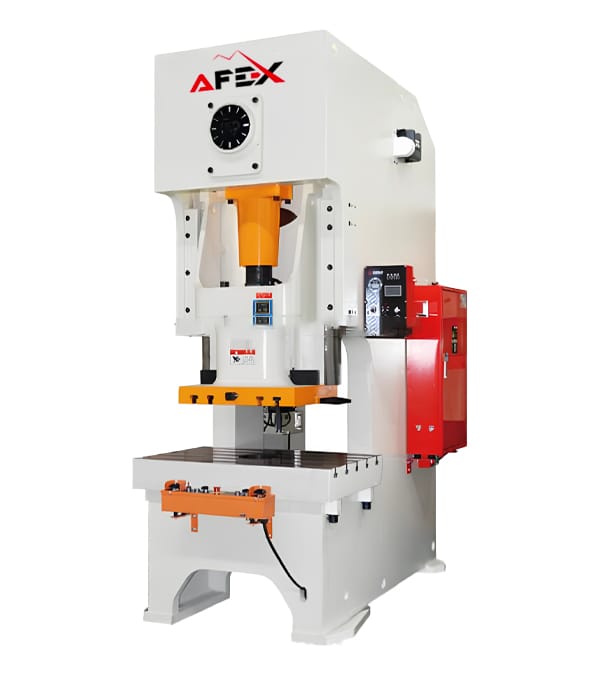

Mold forming press
- Manufacturer
- China
- Voltage
- 380 V
- Power
- 5.5 kW
- Slide stroke
- 250 mm
- Pressing force
- 45 tons
- Die mounting height
- 500 mm
- Lower die height
- 250 mm
- Work table size
- Left–right: 1000 mm, front–back: 1000 mm

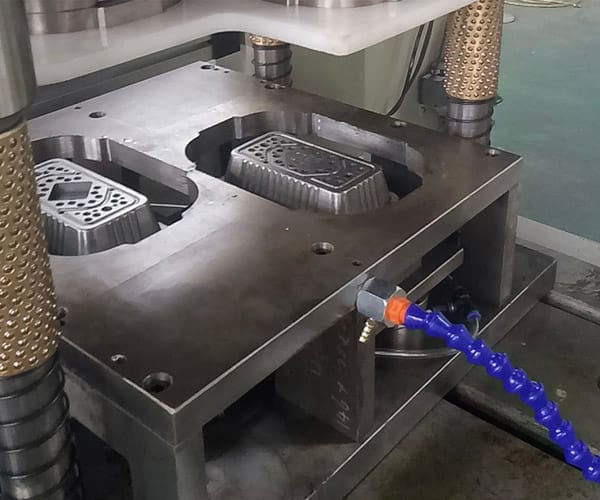

Press mold

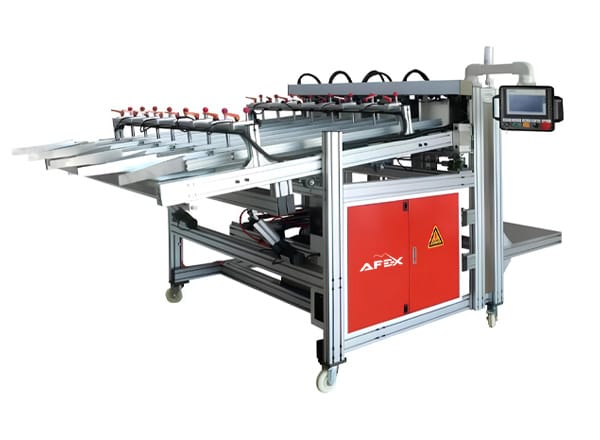

Stacking machine
- Manufacturer
- China
- Voltage
- 220 V
- Power
- 0.75 kW
- Operating speed
- 20 m/min
- Machine dimensions
- 2610×1430×1550 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAluminum Foil Container Making MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Automatic material feeding and lubrication unit
8 parameters- Manufacturer
- China
- Material width
- 900 mm
- Material thickness
- 0.03 – 0.2 mm
- Material feeding speed
- 20 m/min
- Material feeding length
- 0.1 to 9999 mm
- Forming speed
- 50–70 pcs/min
- Total power
- 1.5 kW
- Weight
- 580 kg
Mold forming press
8 parameters- Manufacturer
- China
- Voltage
- 380 V
- Power
- 5.5 kW
- Slide stroke
- 250 mm
- Pressing force
- 45 tons
- Die mounting height
- 500 mm
- Lower die height
- 250 mm
- Work table size
- Left–right: 1000 mm, front–back: 1000 mm
Stacking machine
5 parameters- Manufacturer
- China
- Voltage
- 220 V
- Power
- 0.75 kW
- Operating speed
- 20 m/min
- Machine dimensions
- 2610×1430×1550 mm
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Automatic material feeding and lubrication unit
8 parameters
- Material width: 900 mm
- Material thickness: 0.2 mm
- 02
- 03
Line components
4 items
- 1Automatic material feeding and lubrication unit
- 2Press
- 3Press mold
- 4Stacking machine
