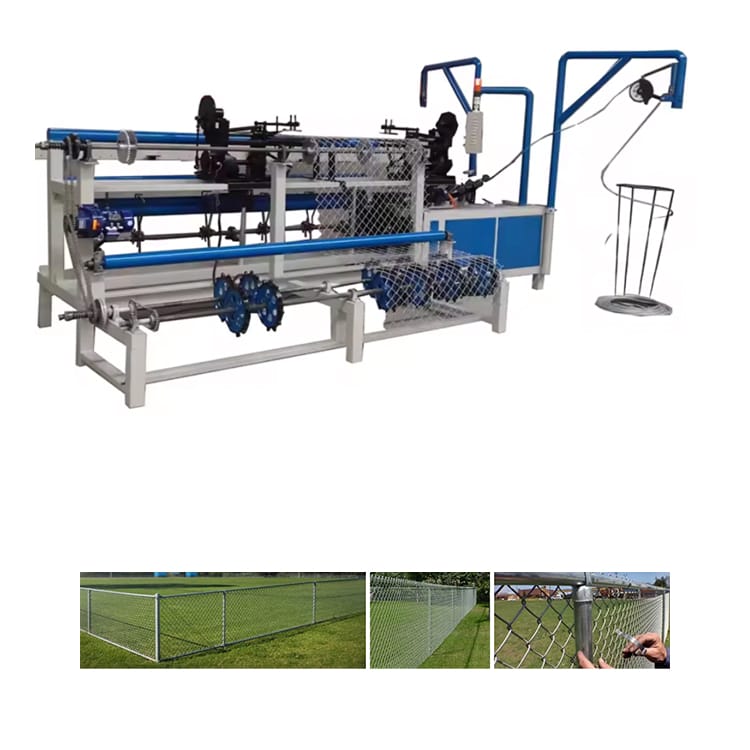

1 / 1AFEX Double-Wire Fully Automatic Chain Link Fence Making Machine
The AFEX double-wire fully automatic mesh weaving machine is designed for industrial-scale production of chain link fencing.
- Production Capacity
- 180–260 m²/h
- Model
- DP20-100D
- Main Motor
- 2 × 4.5 kW Delta servo motor
- Weaving Blade Motor
- 2.2 kW
- Wire Cutting Motor
- 1.1 kW
- Mesh Edge Motor
- 0.75 kW × 2
Overview
Key features
- Machine Name
Double-motor, double-wire automatic chain link fence making machine
- Raw Material Type
Galvanized wire, PVC-coated wire
About the equipment
The AFEX double-wire fully automatic mesh weaving machine is designed for industrial-scale production of chain link fencing. The machine operates with high precision, fully automates the production process and reduces labor costs. The ability to work with various wire diameters and mesh sizes makes it a versatile solution.
High production efficiency
Fully automatic control system
Ability to work with various wire materials
Robust and durable design
Energy-efficient motor system
Flexible mesh sizes
Easy operation and maintenance
Advantages
- Machine Name
- Double-motor, double-wire automatic chain link fence making machine
- Brand
- AFEX
- Model
- DP20-100D
- Operating System
- Two motors + two wires
- Production Capacity
- 180–260 m²/h
- Wire Diameter
- 1.5 – 4 mm
- Mesh Size
- 25 – 100 mm
- Weaving Width
- Max. 3 m
- Roll Length
- Max. 25 m
- Raw Material Type
- Galvanized wire, PVC-coated wire
- Main Motor
- 2 × 4.5 kW Delta servo motor
- Weaving Blade Motor
- 2.2 kW
- Wire Cutting Motor
- 1.1 kW
- Mesh Edge Motor
- 0.75 kW × 2
- Mesh Holding Motor
- 0.75 kW
- Tension Motor
- 0.75 kW
- Rolling Motor
- 1.1 kW
- Voltage
- Customized on request
- Dimensions
- 4.2 × 2.2 × 1.7 m
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAFEX Double-Wire Fully Automatic Chain Link Fence Making MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Advantages
19 parameters- Machine Name
- Double-motor, double-wire automatic chain link fence making machine
- Brand
- AFEX
- Model
- DP20-100D
- Operating System
- Two motors + two wires
- Production Capacity
- 180–260 m²/h
- Wire Diameter
- 1.5 – 4 mm
- Mesh Size
- 25 – 100 mm
- Weaving Width
- Max. 3 m
- Roll Length
- Max. 25 m
- Raw Material Type
- Galvanized wire, PVC-coated wire
- Main Motor
- 2 × 4.5 kW Delta servo motor
- Weaving Blade Motor
- 2.2 kW
- Wire Cutting Motor
- 1.1 kW
- Mesh Edge Motor
- 0.75 kW × 2
- Mesh Holding Motor
- 0.75 kW
- Tension Motor
- 0.75 kW
- Rolling Motor
- 1.1 kW
- Voltage
- Customized on request
- Dimensions
- 4.2 × 2.2 × 1.7 m
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
