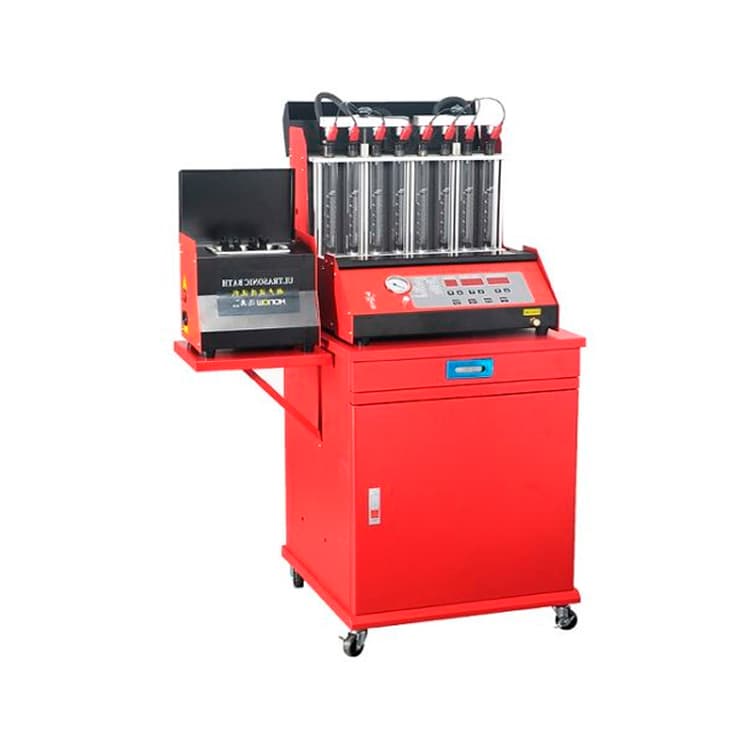

1 / 18 Cylinder Injector Cleaning Equipment AF-SD5
AF-SD5 is an 8-cylinder unit for cleaning and testing engine fuel injectors.
- Voltage
- AC110V/220V/50-60Hz
- Power consumption
- 250wW
- Suction speed
- 6.5L/min
- Speed RPM
- 10000 rpm
- Weight
- 54 kg
- A test tube
- 6L
Overview
About the equipment
AF-SD5 is an 8-cylinder unit for cleaning and testing engine fuel injectors. Speed (RPM) goes up to 10,000 rpm in 50 rpm steps.
The unit has 8 cylinders, and each test tube holds 120 ml, so injectors are tested under the same conditions and their performance can be compared. Injection time is set from 0 to 600 seconds, and a 6-litre tank holds the test fluid.
It runs on AC 110/220 V, 50–60 Hz and consumes 250 W. At 62×53×74 cm and 54 kg, it takes little space in the workshop. The unit is designed for car service and diagnostic centres, where injectors removed from the engine can be cleaned and checked separately.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us which vehicles your shop services, and we will help you choose diagnostic equipment.
General
- Voltage
- AC110V/220V/50-60Hz
- Power consumption
- 250wW
- Speed RPM
- 10000 rpm; step 50 rpm
- Time to pour
- 0-600 seconds
- A test tube
- 6L
- Suction speed
- 6.5L/min
- Cylinder size
- 10L
- Size
- 62*53*74cm
- Weight
- 54 kg
- Test pipe size
- 120 ml
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
Equipment8 Cylinder Injector Cleaning Equipment AF-SD5Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Voltage
- AC110V/220V/50-60Hz
- Power consumption
- 250wW
- Speed RPM
- 10000 rpm; step 50 rpm
- Time to pour
- 0-600 seconds
- A test tube
- 6L
- Suction speed
- 6.5L/min
- Cylinder size
- 10L
- Size
- 62*53*74cm
- Weight
- 54 kg
- Test pipe size
- 120 ml
