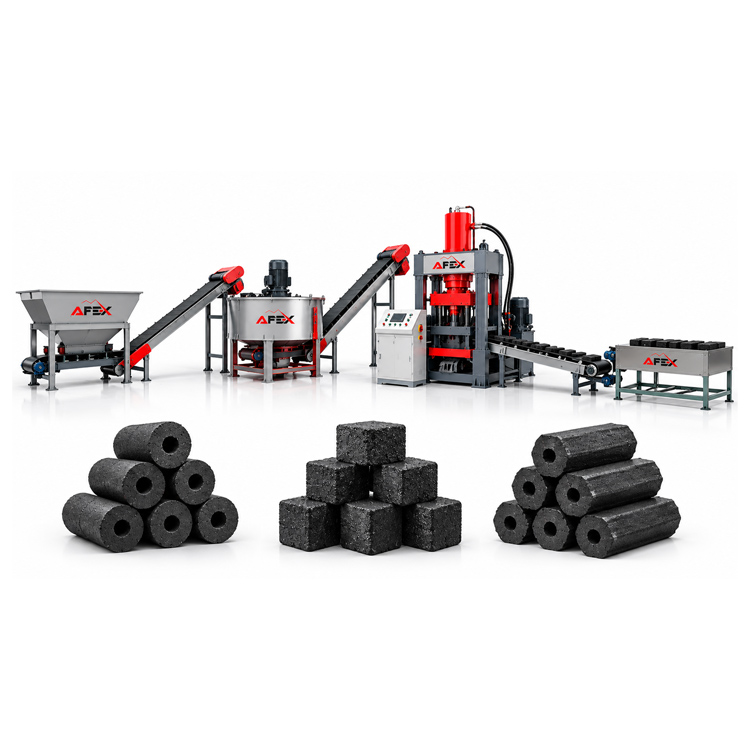

Quick-lighting charcoal briquette production line

This coal briquette production line is designed to process coal dust into uniform, dense briquettes. The line encompasses raw material conveying, mixing, temporary storage, and hydraulic pressing processes. The line's main press is the AFT100 hydraulic briquetting machine, which has a production capacity of 250–350 kg/h. The finished product can be manufactured in square or other shapes, depending on client requirements. The line is designed for the production of fuel briquettes based on coal dust.

Fast-Burning Charcoal Briquette Production Project for Kebab

Project Objective

The proposed project is intended to establish production of fast-burning charcoal briquettes for kebab and grill applications, providing a uniform shape and stable heat output. The project is suitable for small and medium-sized production enterprises and enables the production of finished products from charcoal powder and recycled charcoal raw materials.

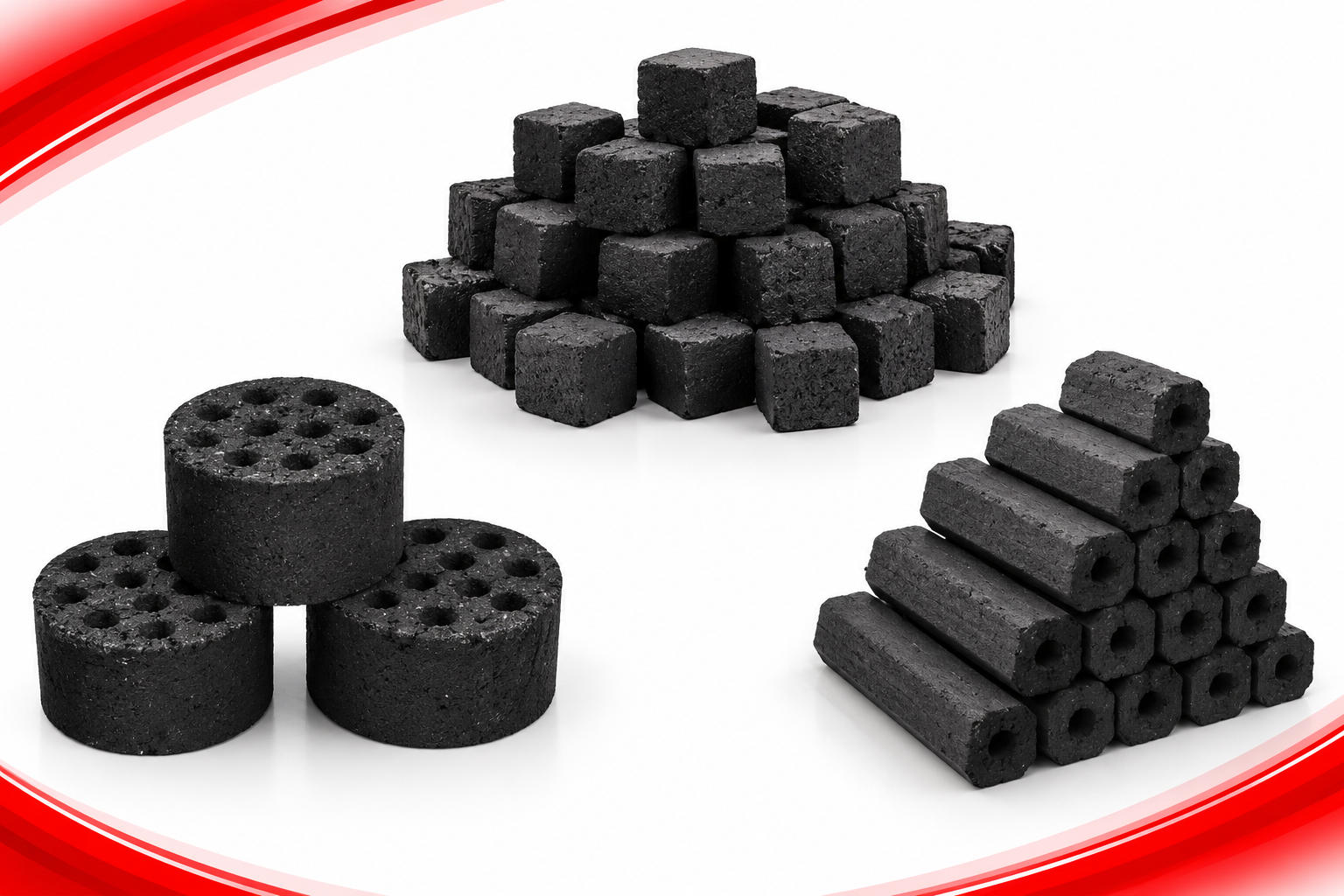

Finished Product

Product: Fast-burning charcoal briquettes for kebab and grill applications Main requirements:

• Fast ignition.
• Uniform heating.
• Good formation of glowing embers.
• Sufficient burning duration.
• Reduced breakage during transportation.
• Uniform shape and size.
• Convenient packaging and storage.

Raw Materials and Composition

The main raw material within the project is crushed charcoal powder.

Product composition will be disclosed after payment

Fast Burning additive: according to the available technical information, it is used at 5%. If this 5% is specified relative to the total mass of the finished mixture, it corresponds to 50 kg per 1 ton of product.

Production Technology

The general technological process recommended by us is: Charcoal raw material → Crushing → Screening → Mixing → Dosed addition of binder and additives → Briquetting → Forming → Drying → Cooling → Quality control → Packaging

01

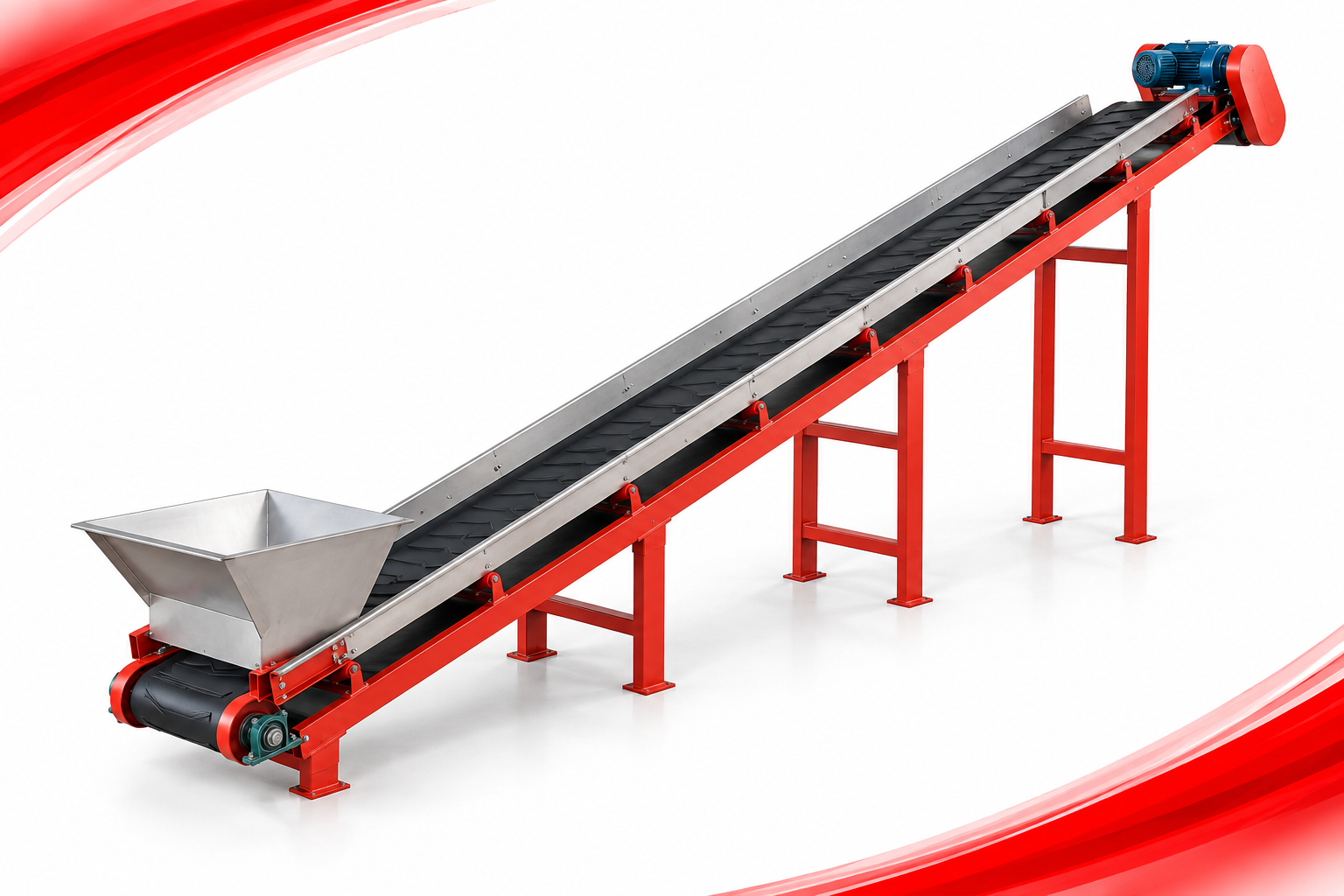

Raw Material Infeed Belt Conveyor

4 parameters

Model

500 × 5000 mm

Motor power

1.5 kW

Length

5000 mm

Quantity

1 set

02

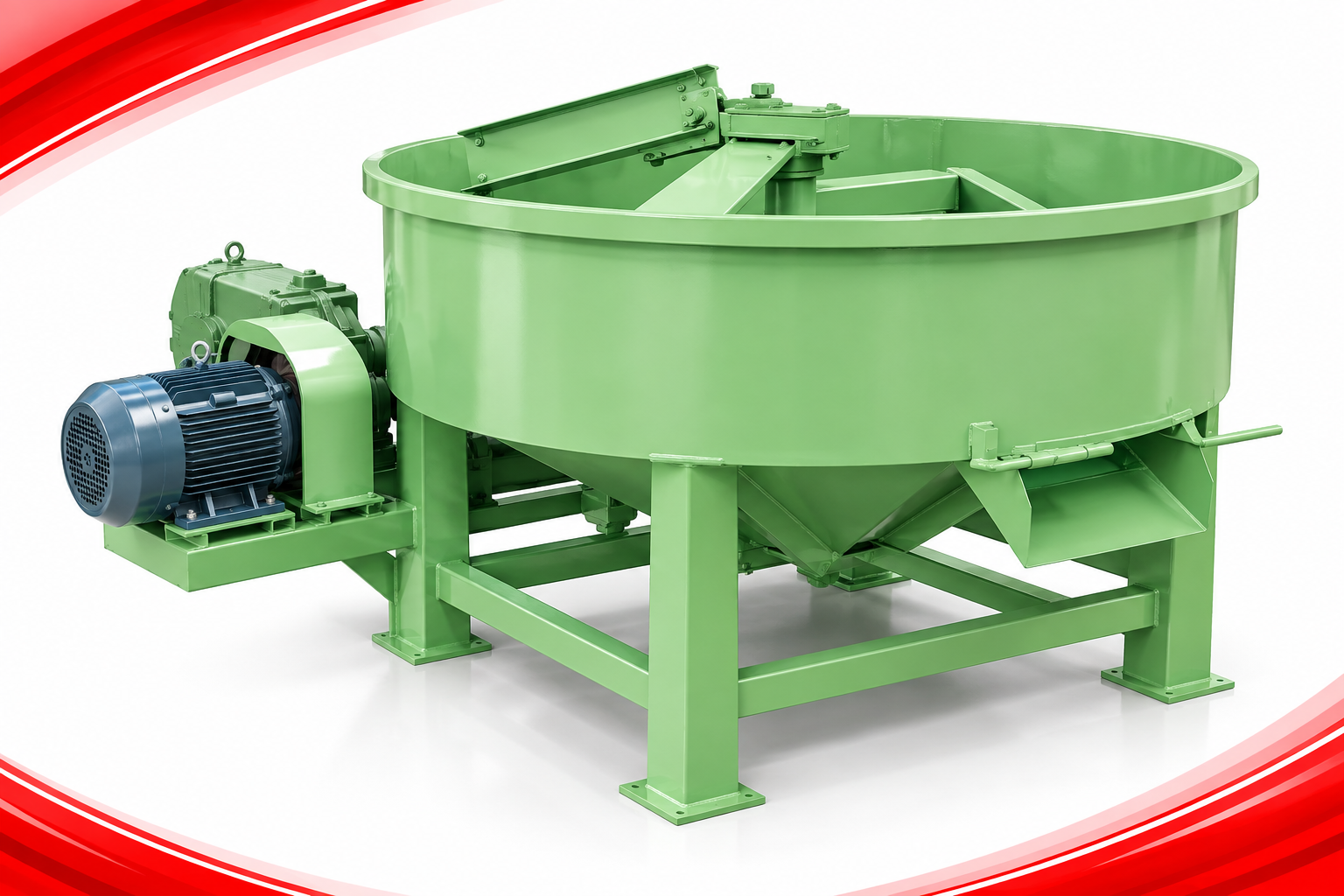

Raw Material Mixing Equipment

6 parameters

Model

Ø1500

Production capacity

500–1000 kg/h

Power

7.5 kW

Weight

800 kg

Dimensions

1500 × 1500 × 1400 mm

Quantity

1 set

03

Mixed Raw Material Infeed Belt Conveyor

4 parameters

Model

500 × 5000 mm

Motor power

1.5 kW

Length

5000 mm

Quantity

1 set

04

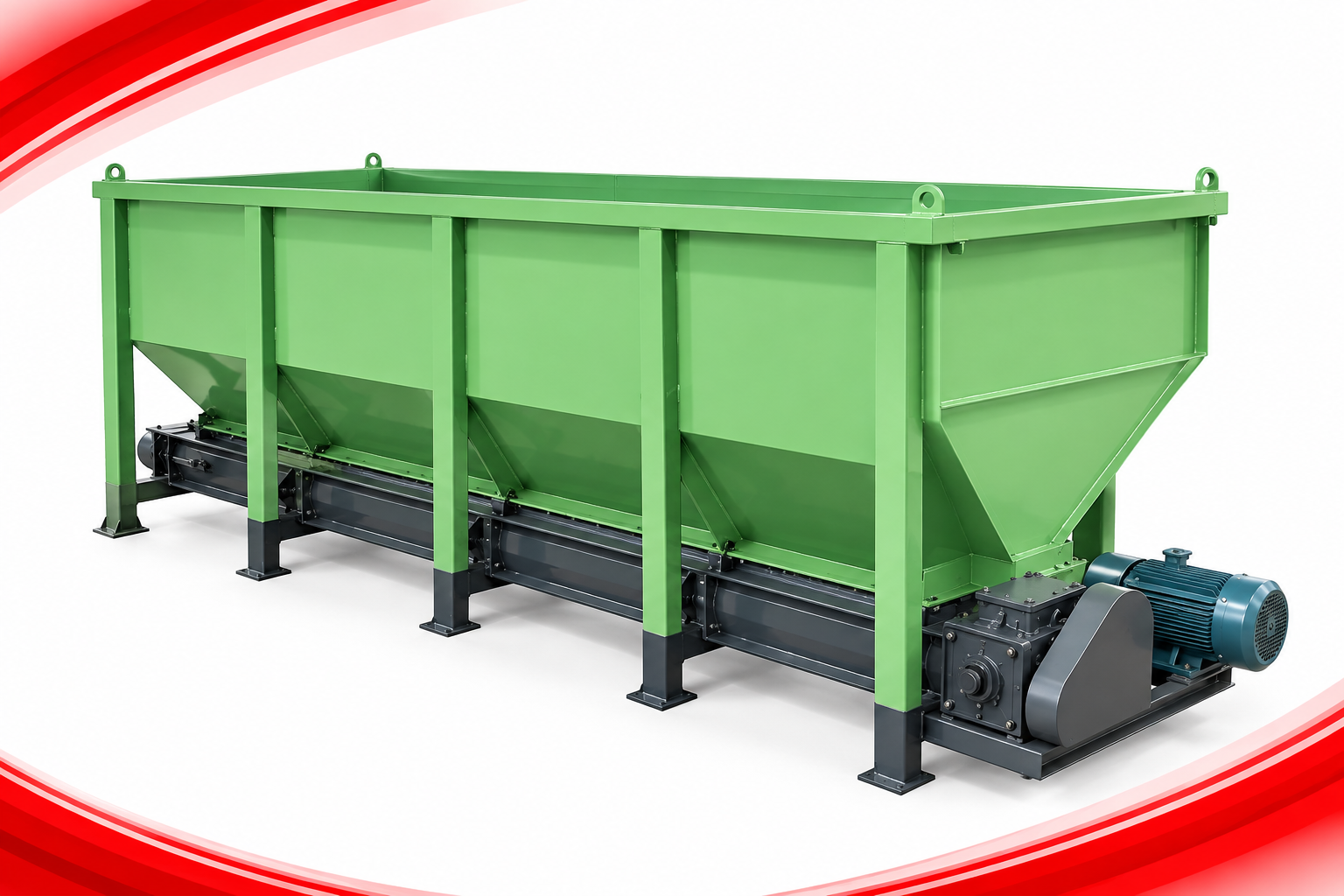

Raw Material Storage Hopper

4 parameters

Model

GX 2000 × 2000 × 1500 mm

Motor power

1.5 kW

Dimensions

2000 × 2000 × 1500 mm

Quantity

1 set

05

Belt Conveyor to Press

4 parameters

Model

500 × 6000 mm

Motor power

1.5 kW

Length

6000 mm

Quantity

1 set

06

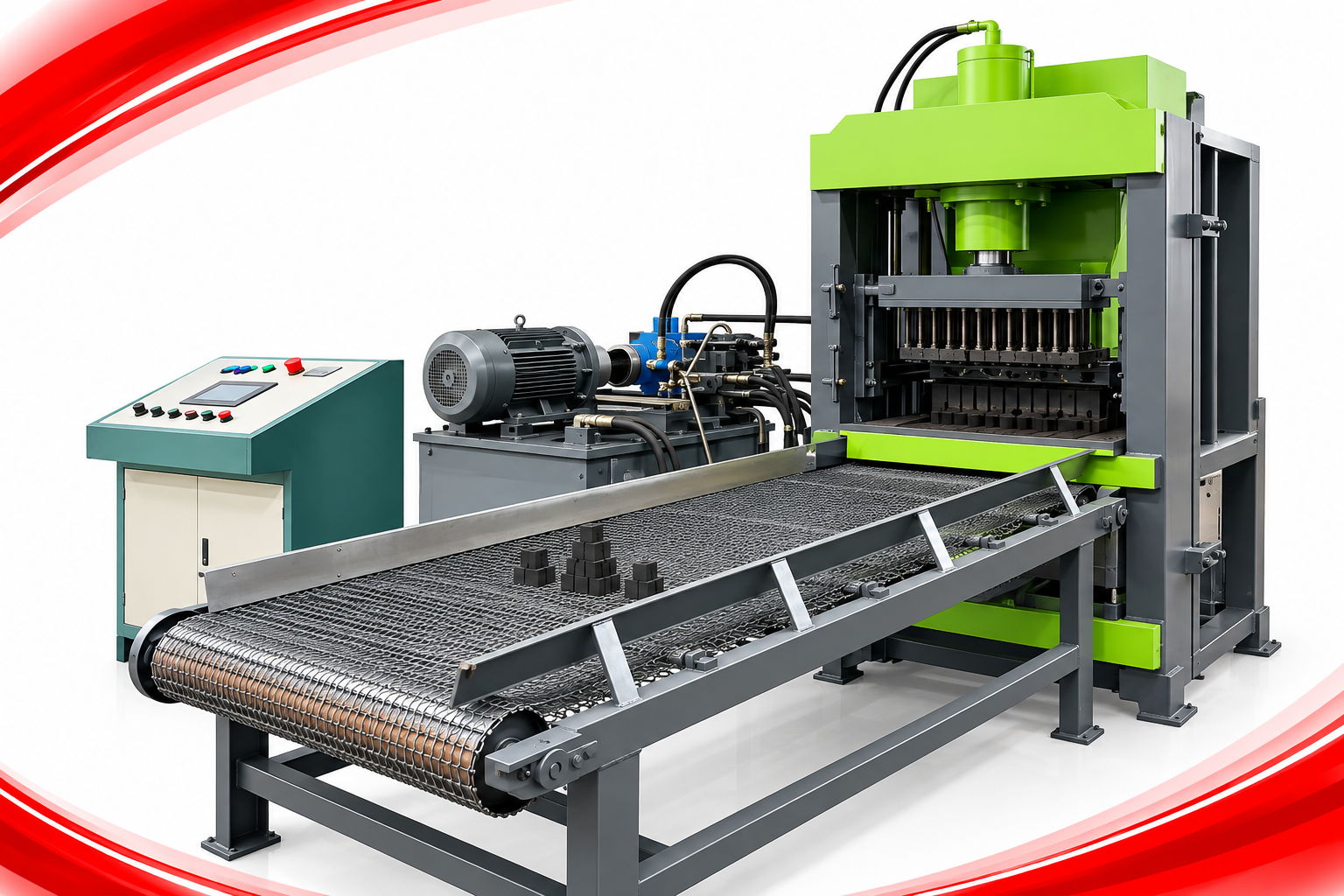

Hydraulic Briquetting Press

8 parameters

Model

GX100

Production capacity

250–350 kg/h

Total power

15 + 2.2 + 0.75 kW

Dimensions

3200 × 1100 × 2100 mm

Weight

2000 kg

Briquette shape

Square

Briquette size

2.5 × 2.5 cm

Quantity

1 set

07

Fast-Burning Binder Additive

2 parameters

Product name

Fast-burning binder

Quantity

5 tons
