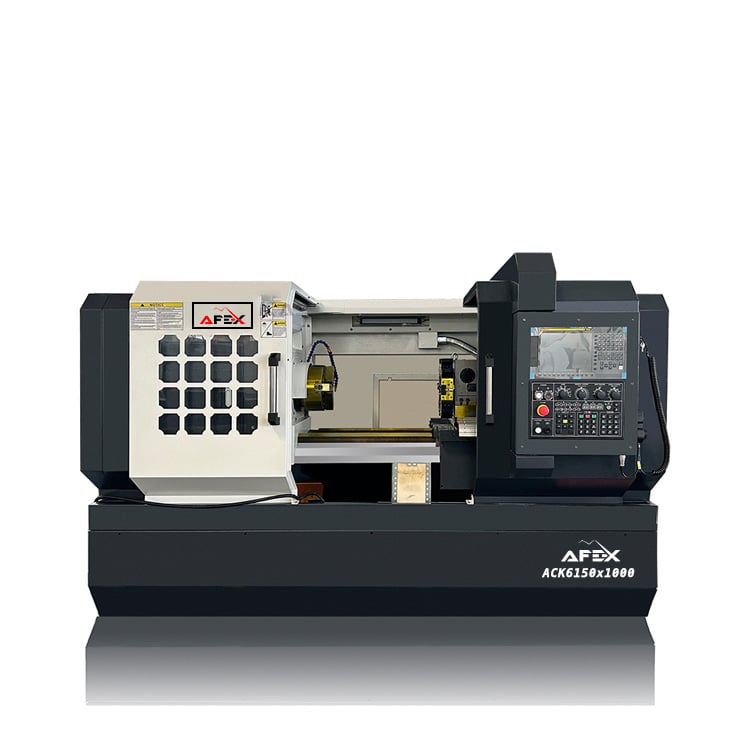

1 / 3CNC Lathe ACK6150-1000
ACK6150-1000 is a CNC lathe with a 1000 mm distance between centers.
- Weight (1000 Model)
- 2500 kg
- Dimensions (1000 Model)
- 2500 × 1700 × 1750 mm
- Main Spindle Motor
- 7.5 kW
- Coolant Pump Motor
- 0.9 kW
- Spindle Speed Steps
- 3 steps
- Spindle Speed Range
- 45–260, 140–800, 550–1600 rpm
Overview
About the equipment

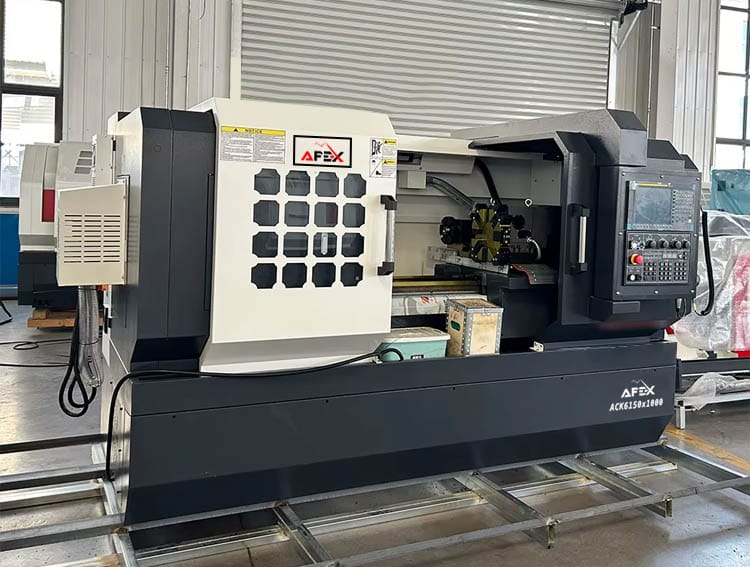

ACK6150-1000 is a CNC lathe with a 1000 mm distance between centers. It is designed for precision machining of rotating parts such as shafts, bushings and flanges.
Swing over bed is 500 mm, swing over cross slide is 280 mm. Spindle bore 82 mm (optional 105 mm), taper MT6, spindle speed selectable in three ranges within 45–1600 rpm. Main motor power is 7.5 kW, coolant pump 0.9 kW.
The machine is equipped with a FANUC or GSK control system, a 4-position electric turret (for 25×25 mm tools), a 3-jaw chuck, an MT5 taper tailstock and a lubrication system. X-axis travel is 260 mm, Z-axis travel is 1000 mm. The machine weighs 2500 kg and measures 2500×1700×1750 mm, so the installation site must be solid.
AFEX delivers the equipment, performs installation and commissioning, and provides warranty service. Send us a part drawing or dimensions — we will check whether the machine suits your task.
General
- Swing Over Bed
- 500 mm
- Swing Over Cross Slide
- 280 mm
- Distance Between Centers
- 1000 mm
- Spindle Bore Diameter
- 82 mm (optional 105 mm)
- Spindle Bore Taper
- MT6
- Spindle Nose Type
- C6
- Spindle Speed Steps
- manual, 3 steps
- Spindle Speed Range
- 45–260, 140–800, 550–1600 rpm
- Tool Turret (Tool Post)
- electric, 4-position
- Tool Size
- 25 × 25 mm
- X-Axis Travel
- 260 mm
- Z-Axis Travel
- 1000 mm
- X-Axis Rapid Traverse
- mm/min
- Z-Axis Rapid Traverse
- mm/min
- Tailstock Quill Diameter
- 75 mm
- Tailstock Quill Taper
- MT5
- Tailstock Quill Travel
- 140 mm
- Main Spindle Motor
- 7.5 kW
- Coolant Pump Motor
- 0.9 kW
- Weight (1000 Model)
- 2500 kg
- Dimensions (1000 Model)
- 2500 × 1700 × 1750 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentCNC Lathe ACK6150-1000Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
21 parameters- Swing Over Bed
- 500 mm
- Swing Over Cross Slide
- 280 mm
- Distance Between Centers
- 1000 mm
- Spindle Bore Diameter
- 82 mm (optional 105 mm)
- Spindle Bore Taper
- MT6
- Spindle Nose Type
- C6
- Spindle Speed Steps
- manual, 3 steps
- Spindle Speed Range
- 45–260, 140–800, 550–1600 rpm
- Tool Turret (Tool Post)
- electric, 4-position
- Tool Size
- 25 × 25 mm
- X-Axis Travel
- 260 mm
- Z-Axis Travel
- 1000 mm
- X-Axis Rapid Traverse
- mm/min
- Z-Axis Rapid Traverse
- mm/min
- Tailstock Quill Diameter
- 75 mm
- Tailstock Quill Taper
- MT5
- Tailstock Quill Travel
- 140 mm
- Main Spindle Motor
- 7.5 kW
- Coolant Pump Motor
- 0.9 kW
- Weight (1000 Model)
- 2500 kg
- Dimensions (1000 Model)
- 2500 × 1700 × 1750 mm
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

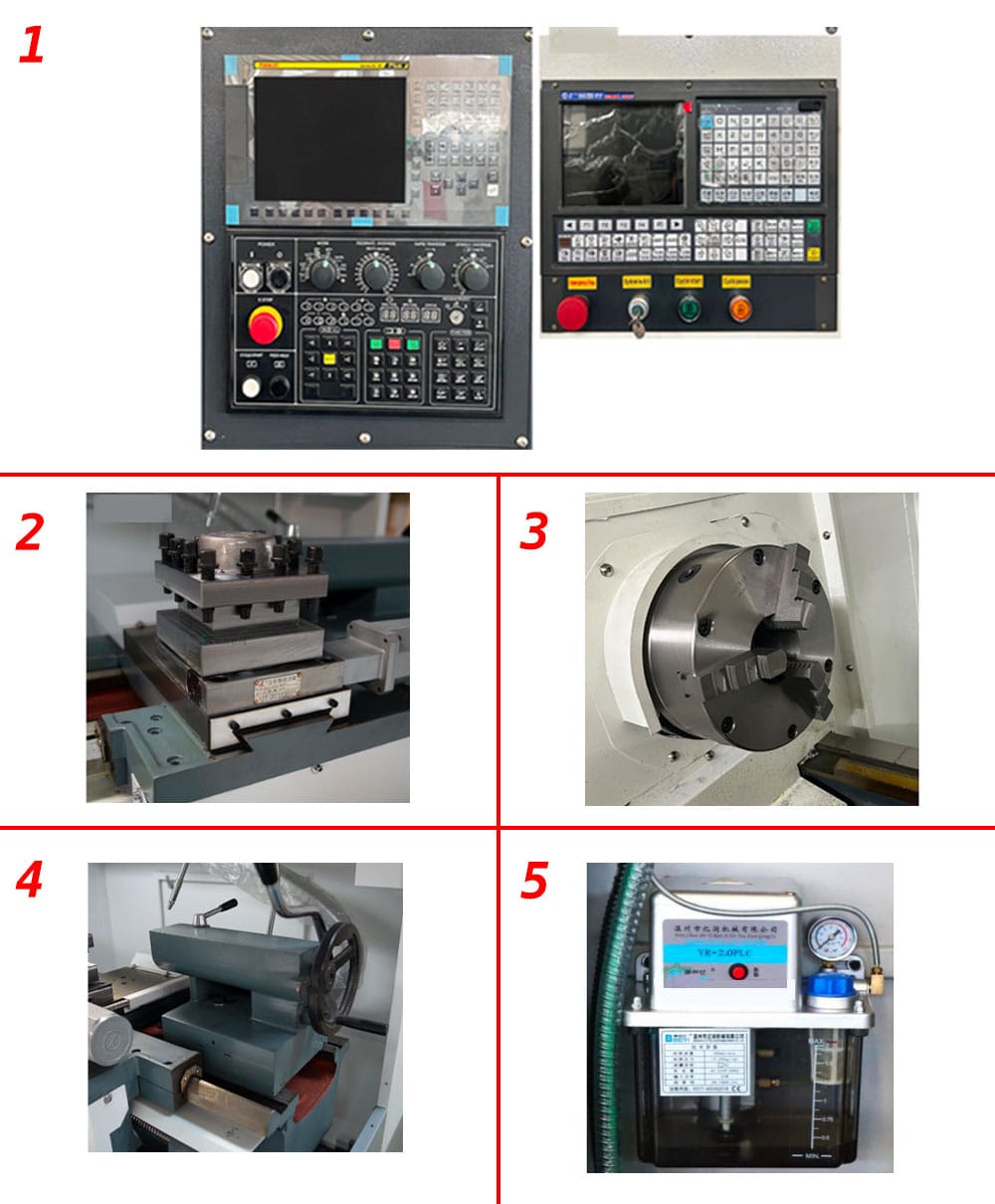

Machine Components
5 items
- 1FANUC / GSK control system
- 24-position electric tool post
- 33-jaw manual chuck
- 4Manual tailstock
- 5Lubrication system
