1 / 1Adhesive equipment AF-MT6213

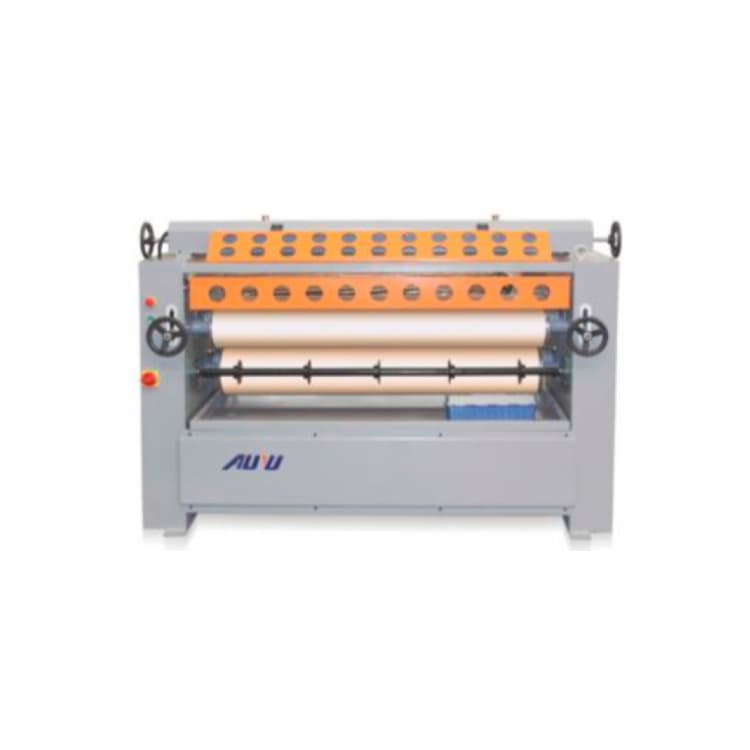

AF-MT6213 is a glue spreader that applies adhesive to both sides of panels and workpieces.
- Motor power
- 2.2 Kw
- Model
- AF-MT6213
- Gluing speed
- 23 m/daqiqa
- Weight
- 700 Kg
- Maximum glue spread width
- 1300 mm
- Maximum working thickness
- 60 mm
Overview
About the equipment
AF-MT6213 is a glue spreader that applies adhesive to both sides of panels and workpieces. Spreading width is up to 1300 mm at 23 m/min.
The workpiece passes between the rollers and receives a layer of glue on both sides. The rubber roller is 200 mm in diameter, and material up to 60 mm thick can be processed. Motor power is 2.2 kW. Two-sided application saves time when a panel is faced on both sides.
The machine measures 2100×1000×1300 mm and weighs 700 kg. It is used to apply glue to plywood, MDF and particleboard panels before veneering or other facing, and to prepare door and furniture panels for pressing. Compared with manual spreading, the glue goes on in an even layer over the whole surface and the work goes faster.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us your panel sizes and glue type, and we will advise on setting up the machine.
General
- Model
- AF-MT6213
- Glue sides
- Double sided
- Maximum glue spread width
- 1300 mm
- Maximum working thickness
- 60 mm
- Rubber roller diameter
- 200 mm
- Gluing speed
- 23 m/daqiqa
- Motor power
- 2.2 Kw
- Size
- 2100*1000*1300 mm
- Weight
- 700 Kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAdhesive equipment AF-MT6213Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
9 parameters- Model
- AF-MT6213
- Glue sides
- Double sided
- Maximum glue spread width
- 1300 mm
- Maximum working thickness
- 60 mm
- Rubber roller diameter
- 200 mm
- Gluing speed
- 23 m/daqiqa
- Motor power
- 2.2 Kw
- Size
- 2100*1000*1300 mm
- Weight
- 700 Kg
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
