1 / 2Vacuum Packaging and Air Filling Machine AF-DZ500
One machine performs several tasks — it is suitable for many different types of products.
- Power supply
- 220 V
- Power
- 1 kW
- Pumping speed
- 4.3 m³/h

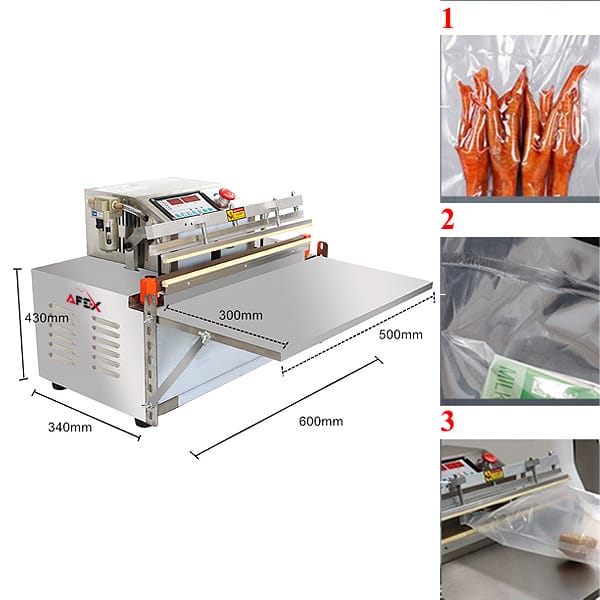

- Machine dimensions
- 600×340×430 mm
- Weight
- 40 kg
- Work table size
- 500×300 mm
Overview
About the equipment
One machine performs several tasks — it is suitable for many different types of products. The machine has three main functions: vacuuming, sealing and gas filling. These functions can be used together or separately. There is no limit on bag length, so there is no need to worry about the vacuum chamber size not fitting.
General
- Country of manufacture
- China
- Power supply
- 220 V / 50 Hz
- Power
- 1 kW
- Work table size
- 500×300 mm
- Pumping speed
- 4.3 m³/h (72 L/min)
- Air pressure
- 0.8 MPa
- Seal size
- 500×8 mm
- Machine dimensions
- 600×340×430 mm
- Weight
- 40 kg
Machine Functions
The machine has three functions: 1- Vacuuming, 2- Sealing, 3- Air filling
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentVacuum Packaging and Air Filling Machine AF-DZ500Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
9 parameters- Country of manufacture
- China
- Power supply
- 220 V / 50 Hz
- Power
- 1 kW
- Work table size
- 500×300 mm
- Pumping speed
- 4.3 m³/h (72 L/min)
- Air pressure
- 0.8 MPa
- Seal size
- 500×8 mm
- Machine dimensions
- 600×340×430 mm
- Weight
- 40 kg
