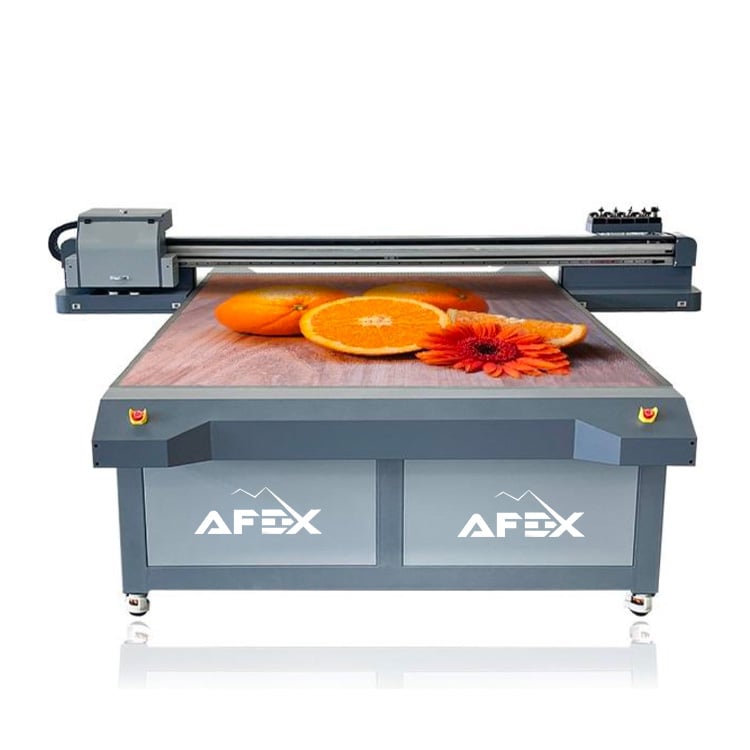

UV Flatbed Printer AF-P3020 with I3200 Print Head

3000 W · 220V · 10 m² per hour

Individual offer
Power
3000 W
Power supply
220V
Printing speed
10 m² per hour
Machine dimensions
3.7 × 3.35 × 1.3 m
Total weight
1300 kg
Print size
2000 mm wide and 3000 mm long
Price

Overview

Key advantages

  • Hard-anodized vacuum platform – prevents surface scratches when working with rigid materials
  • High-speed fiber-optic data transmission – ensures fast and stable data transfer
  • EPSON i3200U1 print head (Japan) – average service life of 2 years
  • White ink stirring system – white ink does not settle and is always ready to print
  • Dual imported linear guide rails – ensure precise and stable movement of the mechanism
  • Anti-collision device for the print head carriage – automatically stops on contact with the material and protects the head

About the equipment

01

General

24 parameters
General
Print head technology
Advanced piezoelectric system.
Print head control
Voltage can be easily adjusted via software.
Print head type
EPSON i3200U1.
Number of print heads
3 (CMYK colors + white + varnish).
Ink type
UV ink (dries quickly and is highly durable).
Ink tanks
1000 ml for each color, can be refilled even during printing.
UV LED lamp
Korean brand, energy-efficient, service life of over 30 000 hours.
Color management
Accurate color adjustment based on the ICC system.
Cleaning system
Automatic cleaning function.
Worktable
Special anodized vacuum platform that holds materials firmly.
Print size
2000 mm wide and 3000 mm long.
Connection
Via Ethernet.
Material thickness
From 0 to 100 mm
Power
3000 W.
Printable materials
Cardboard, blank sheets, glass, ceramic tile, acrylic, metal, wood, aluminum composite panel, foam board, PVC, melamine board and other materials.
Printing speed
Approx. 10 m² per hour.
Print durability
5 years outdoors, up to 10 years indoors.
Supported file formats
TIFF, JPEG, EPS, PDF, etc.
RIP software
Ripprint (standard), Photoprint (at extra cost).
Power supply
220V, 50/60Hz.
Operating environment
Temperature 20–28°C, humidity 40–60%.
Machine dimensions
3.7 × 3.35 × 1.3 m.
Total weight
1300 kg.
Warranty
12 months (consumable parts – print head and ink system – are not covered).

Compatible Materials

  1. Photo case (phone case)
  2. Decorative painting / ornamental picture
  3. Mouse pad
  4. Wooden panel
  5. Plastic
  6. Advertising sign / advertising lettering
  7. Acrylic
  8. Wallpaper / background wall
  9. Car sticker / car emblem
  10. Ceramic tile
  11. Fibrous material / fiber
  12. Glass photo / mirror picture
AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentUV Flatbed Printer AF-P3020 with I3200 Print Head

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

24 parameters
Print head technology
Advanced piezoelectric system.
Print head control
Voltage can be easily adjusted via software.
Print head type
EPSON i3200U1.
Number of print heads
3 (CMYK colors + white + varnish).
Ink type
UV ink (dries quickly and is highly durable).
Ink tanks
1000 ml for each color, can be refilled even during printing.
UV LED lamp
Korean brand, energy-efficient, service life of over 30 000 hours.
Color management
Accurate color adjustment based on the ICC system.
Cleaning system
Automatic cleaning function.
Worktable
Special anodized vacuum platform that holds materials firmly.
Print size
2000 mm wide and 3000 mm long.
Connection
Via Ethernet.
Material thickness
From 0 to 100 mm
Power
3000 W.
Printable materials
Cardboard, blank sheets, glass, ceramic tile, acrylic, metal, wood, aluminum composite panel, foam board, PVC, melamine board and other materials.
Printing speed
Approx. 10 m² per hour.
Print durability
5 years outdoors, up to 10 years indoors.
Supported file formats
TIFF, JPEG, EPS, PDF, etc.
RIP software
Ripprint (standard), Photoprint (at extra cost).
Power supply
220V, 50/60Hz.
Operating environment
Temperature 20–28°C, humidity 40–60%.
Machine dimensions
3.7 × 3.35 × 1.3 m.
Total weight
1300 kg.
Warranty
12 months (consumable parts – print head and ink system – are not covered).

Included units

Units and accessories included with the equipment. Specifications for each are in the section above.

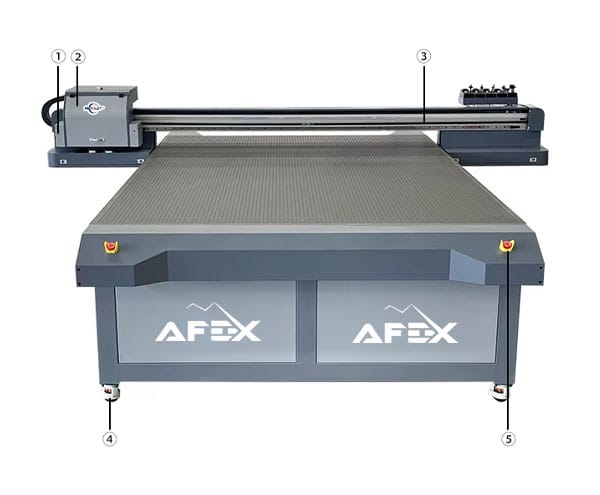

  • Machine Components

    5 items

    1. 1UV LED lamp
    2. 2Industrial print head
    3. 3TAIWAN HIWIN linear guide rail
    4. 4Universal caster wheel
    5. 5Emergency stop button

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.

Frequently asked questions

The most common questions about delivery, contracts and tracking.

Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis: By air By rail By land transport By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must: CERTIFICATE certifying the business entity; Bank details; STIR number; Copy of the manager's passport; Enterprise seal to confirm the contract
Consultation

Let’s discuss your project together

Contact us for advice on choosing equipment, technical solutions and offers.

Call us+998 93 381 6699Mon–Sat: 9:00 – 18:00
AFEX · SOCIAL

Follow our channels

New equipment, commissioning and production footage — on our official channels.

Related equipment

View all

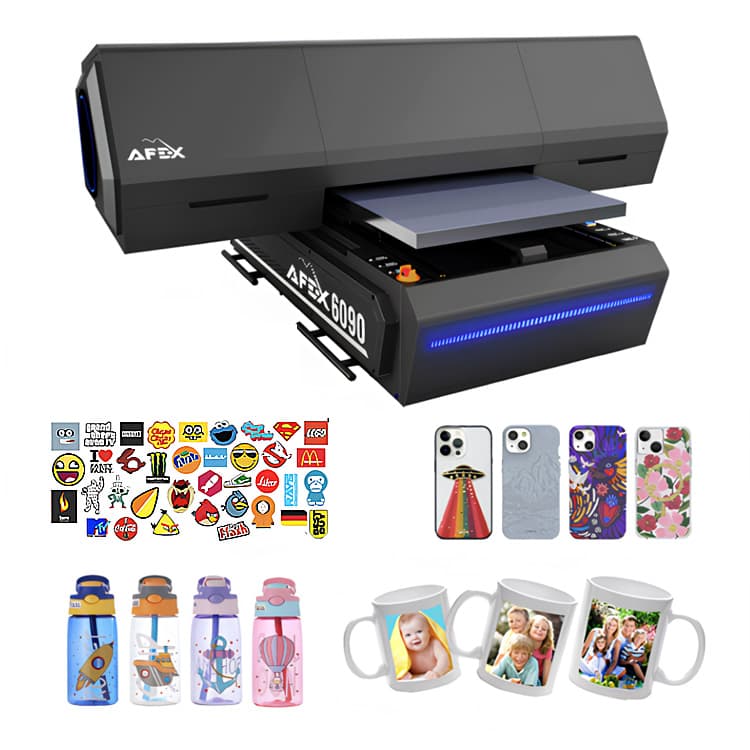

Professional UV Printer AFP-6090K
