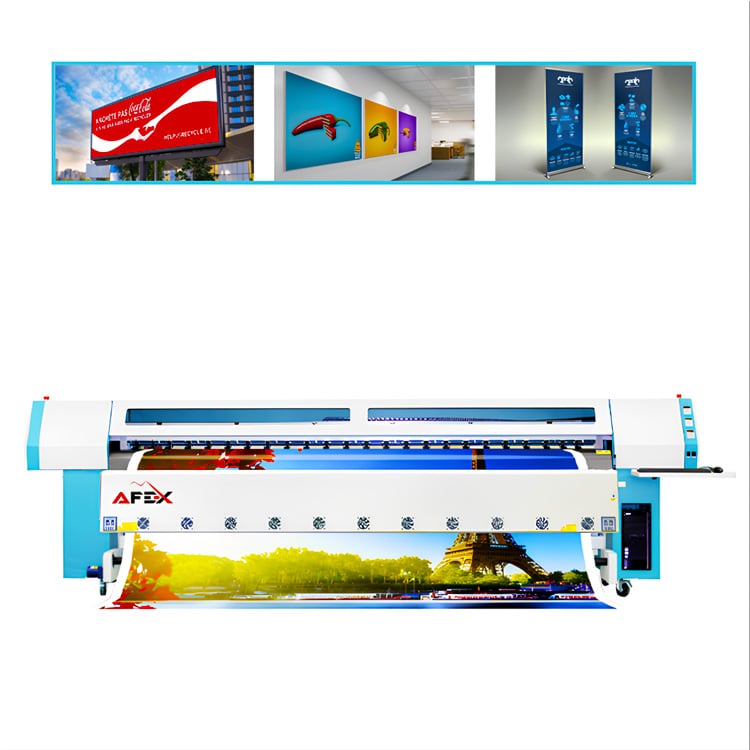

1 / 1High-Speed Solvent Printer INFINITI Challenger AFY-3200L / H4
INFINITI Challenger AFY-3200L / H4 is a 3.2-meter high-speed solvent printer for printing on banner, vinyl and mesh.
- Model
- AFY-3200L
- Print speed (2PASS)
- 260 m²/h
- Print speed (3PASS)
- 172 m²/h
- Print speed (4PASS)
- 131 m²/h
- Dimensions
- 5500x750x840 mm
- Weight
- 840 kg
Overview
Key advantages
- Separate cleaning system for each color – reduces ink waste
- Smart sensor – protects the printer if the carriage collides or goes off track
- Imported flat guide rail and silent slider ensure quiet and stable carriage movement
- Drying system – 10 cooling fans and an infrared heater dry the print quickly
- Control system – a separate control unit ensures stable operation and easier maintenance
About the equipment
INFINITI Challenger AFY-3200L / H4 is a 3.2-meter high-speed solvent printer for printing on banner, vinyl and mesh. Printing speed in 2 passes is up to 260 m² per hour.
The printer runs on 4 SPT Alpha 1024HG print heads and uses solvent and eco-solvent inks. In roll-to-roll mode, the speed is 172 m²/h in 3 passes and 131 m²/h in 4 passes. Each head has its own positive-pressure cleaning system and LED light.
Front, middle and rear heaters, an IR dryer and fan cooling dry the printed material quickly. Printing software: UnitedFancy, FlexiPRINT and Maintop. The printer connects to a 220 V mains supply: printer 1100 W, dryer 7200 W, platform heating 1800 W. Dimensions 5500×750×840 mm, weight 840 kg.
AFEX delivers, installs and commissions the equipment and provides warranty service. Tell us your daily print volume and materials — we will recommend the right configuration.
General
- Manufacturer
- China
- Model
- AFY-3200L / H4
- Print head
- SPT Alpha 1024HG
- Number of print heads
- 4 pcs
- Print width
- 3200 mm
- Print speed (2PASS)
- 260 m²/h
- Print speed (3PASS)
- 172 m²/h
- Print speed (4PASS)
- 131 m²/h
- Dimensions
- 5500x750x840 mm
- Weight
- 840 kg
General
- Media type
- Banner, vinyl, mesh and other roll-to-roll outdoor printing media
- Ink
- Solvent ink, eco-solvent ink
- Cleaning and maintenance
- Individual positive-pressure cleaning for each head, manual one-step capping, LED light at the head position
- Heating system
- Front, middle and rear heaters, IR dryer, fan cooling system
- RIP
- UnitedFancy, FlexiPRINT, Maintop
- Printer
- AC220V 50HZ 1100W
- Dryer
- AC220V 50HZ 7200W
- Platform heating
- AC220V 50HZ 1800W
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHigh-Speed Solvent Printer INFINITI Challenger AFY-3200L / H4Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Manufacturer
- China
- Model
- AFY-3200L / H4
- Print head
- SPT Alpha 1024HG
- Number of print heads
- 4 pcs
- Print width
- 3200 mm
- Print speed (2PASS)
- 260 m²/h
- Print speed (3PASS)
- 172 m²/h
- Print speed (4PASS)
- 131 m²/h
- Dimensions
- 5500x750x840 mm
- Weight
- 840 kg
General
8 parameters- Media type
- Banner, vinyl, mesh and other roll-to-roll outdoor printing media
- Ink
- Solvent ink, eco-solvent ink
- Cleaning and maintenance
- Individual positive-pressure cleaning for each head, manual one-step capping, LED light at the head position
- Heating system
- Front, middle and rear heaters, IR dryer, fan cooling system
- RIP
- UnitedFancy, FlexiPRINT, Maintop
- Printer
- AC220V 50HZ 1100W
- Dryer
- AC220V 50HZ 7200W
- Platform heating
- AC220V 50HZ 1800W
