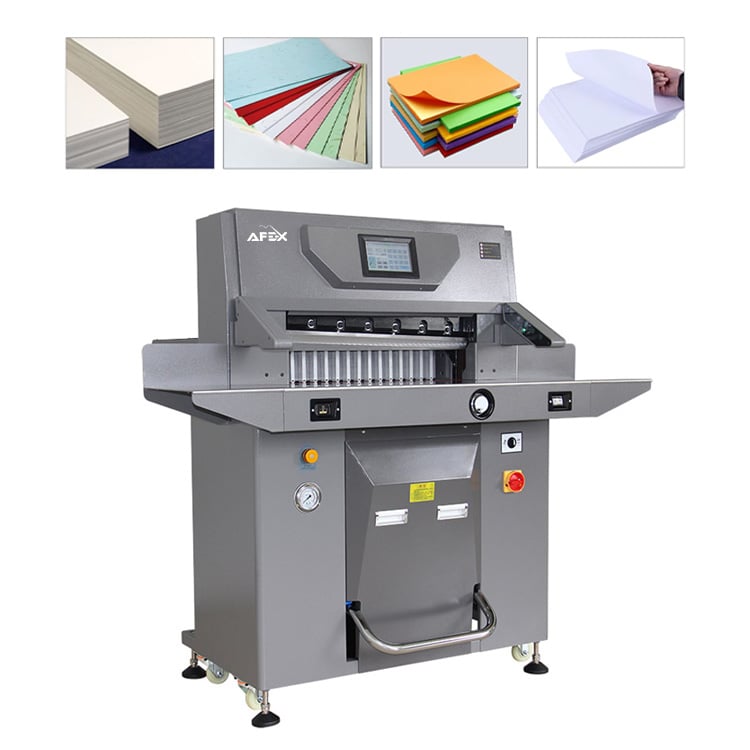

1 / 2Heavy-Duty Hydraulic Paper Cutting Machine A-7210TX
The A-7210TX is a heavy-duty paper cutting machine (guillotine) with a hydraulic clamping and cutting system.
- Power supply
- AC 220 V
- Cutting length behind the knife
- 720 mm
- Table length in front of the knife
- 420 mm
- Gross weight
- 510 kg
- Max. cutting width
- 720 × 720 mm
- Max. cutting height
- 100 mm
Overview
About the equipment
The A-7210TX is a heavy-duty paper cutting machine (guillotine) with a hydraulic clamping and cutting system. It cuts a paper stack 720 mm wide and up to 100 mm high in a single stroke.
Paper clamping and cutting are performed hydraulically, with a cutting accuracy of ±0.3 mm. The paper pusher travels on a twin-screw, twin-guide system; the minimum cutting depth is 30 mm. The table length in front of the knife is 420 mm, and the cutting length behind the knife is 720 mm.
The machine is controlled via a 7-inch touch screen with various operating modes and a fault display system. Safety is ensured by an infrared light curtain, and a separate clamping pedal is provided for positioning the paper. The working platform is made of thick steel plates. Power supply 220 V, power 2200 W, gross weight 510 kg. Suitable for print shops, book production and packaging workshops.
AFEX supplies, installs, commissions and provides warranty service for the equipment. Tell us the paper format to be cut and your daily volume, and we will recommend a suitable model.
General
- Power supply
- AC 220 V / 50 Hz (60 Hz), 2200 W
- Max. cutting width
- 720 × 720 mm
- Max. cutting height
- 100 mm
- Min. cutting depth
- 30 mm
- Accuracy
- ±0.3 mm
- Paper clamping system
- hydraulic
- Paper cutting system
- hydraulic
- Cutting length behind the knife
- 720 mm
- Table length in front of the knife
- 420 mm
- Paper pusher system
- twin-screw and twin-guide system
- Safety system
- infrared protection (IR Bar)
- Shipping dimensions (mm)
- 1220 × 1520 × 1660
- Gross weight
- 510 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHeavy-Duty Hydraulic Paper Cutting Machine A-7210TXYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
13 parameters- Power supply
- AC 220 V / 50 Hz (60 Hz), 2200 W
- Max. cutting width
- 720 × 720 mm
- Max. cutting height
- 100 mm
- Min. cutting depth
- 30 mm
- Accuracy
- ±0.3 mm
- Paper clamping system
- hydraulic
- Paper cutting system
- hydraulic
- Cutting length behind the knife
- 720 mm
- Table length in front of the knife
- 420 mm
- Paper pusher system
- twin-screw and twin-guide system
- Safety system
- infrared protection (IR Bar)
- Shipping dimensions (mm)
- 1220 × 1520 × 1660
- Gross weight
- 510 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

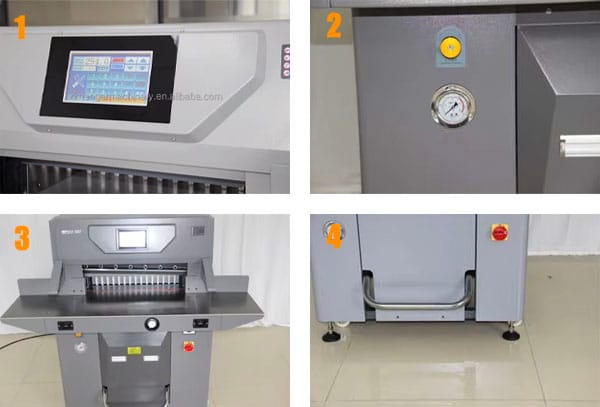

Machine Components
3 items
- 17-inch touch screen, multiple modes, fault display system
- 2Working platform made of thick steel plates, sturdy and practical
- 3Independent foot pedal for paper clamping, convenient for cutting and positioning paper
