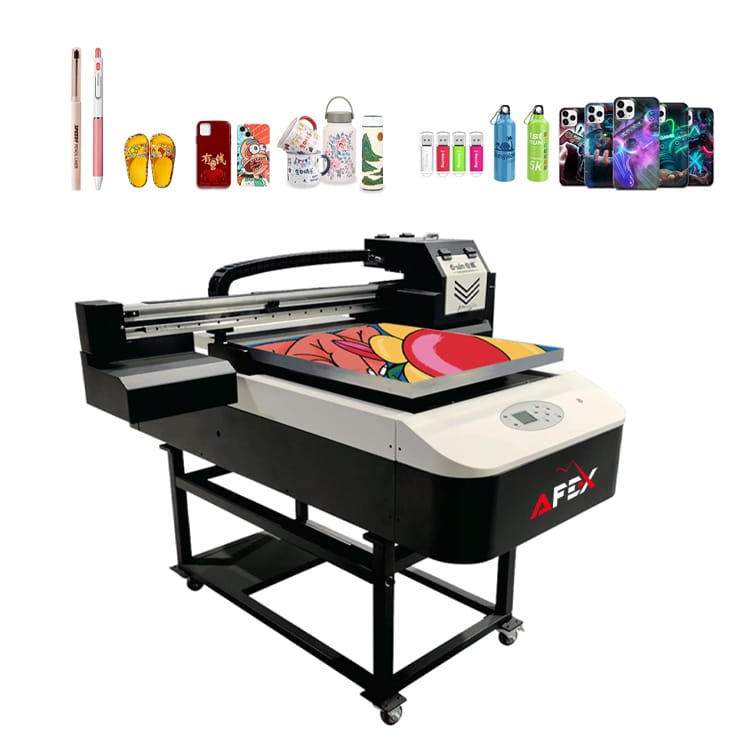

1 / 2Flatbed UV Printer AFP-6090
The AFP-6090 flatbed UV printer prints on acrylic, glass, metal, ceramic and wood surfaces in a 600×900 mm format.
- Power supply
- 220 V
- Print speed
- 6 passes
- Machine dimensions
- 1660×1630×900 mm
- Machine weight
- 245 kg
- Number of print heads
- 2 or 3 pcs
- Print size
- 600×900 mm
Overview
Key features
- Ink type
UV ink — CMYK + white (W), with varnish (V)
- Printable materials
Crystal awards, acrylic, glass, stainless steel, phone cases, ceramic tiles, KT boards, wood and other smooth surfaces
- Platform height (adjustable)
3 mm to 145 mm (suitable for thick materials)
- Print speed
6 passes – 9 m²/h, 8 passes – 7 m²/h, 12 passes – 4 m²/h
About the equipment
The AFP-6090 flatbed UV printer prints on acrylic, glass, metal, ceramic and wood surfaces in a 600×900 mm format. The platform height is adjustable from 3 mm to 145 mm.
The printer works with 2 or 3 XP600 or XC90 print heads and, in addition to CMYK colors, prints with white (W) ink and varnish (V). It is suitable for crystal awards, phone cases, ceramic tiles, KT boards and souvenir products. Print speed: 9 m²/h in 6 passes, 7 m²/h in 8 passes, 4 m²/h in 12 passes.
The vacuum platform holds the material firmly during printing, and the ink station cleans the heads automatically. Control: Printbox software; printing software: Maintop or Photoprint. The printer consumes 230 W from a 220 V mains supply and operates at 10–38 °C. Dimensions 1660×1630×900 mm, weight 245 kg; casters make it easy to relocate.
AFEX delivers, installs and commissions the equipment and provides warranty service. Tell us which material you plan to print on, and we will recommend the right configuration.
General
- Print head
- XP600 or XC 90
- Number of print heads
- 2 or 3 pcs
- Ink type
- UV ink — CMYK + white (W), with varnish (V)
- Printable materials
- Crystal awards, acrylic, glass, stainless steel, phone cases, ceramic tiles, KT boards, wood and other smooth surfaces
- Print size
- 600×900 mm
- Platform height (adjustable)
- 3 mm to 145 mm (suitable for thick materials)
- Power supply
- 220 V, 50/60 Hz, 230 W (10 A)
- Print speed
- 6 passes – 9 m²/h, 8 passes – 7 m²/h, 12 passes – 4 m²/h
- Operating temperature
- 10°C to 38°C
- Air humidity
- 40% to 70%
- Control system
- Printbox software
- RIP software (printing software)
- Maintop or Photoprint (to choose from)
- Machine dimensions
- 1660×1630×900 mm
- Machine weight
- 245 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentFlatbed UV Printer AFP-6090Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
14 parameters- Print head
- XP600 or XC 90
- Number of print heads
- 2 or 3 pcs
- Ink type
- UV ink — CMYK + white (W), with varnish (V)
- Printable materials
- Crystal awards, acrylic, glass, stainless steel, phone cases, ceramic tiles, KT boards, wood and other smooth surfaces
- Print size
- 600×900 mm
- Platform height (adjustable)
- 3 mm to 145 mm (suitable for thick materials)
- Power supply
- 220 V, 50/60 Hz, 230 W (10 A)
- Print speed
- 6 passes – 9 m²/h, 8 passes – 7 m²/h, 12 passes – 4 m²/h
- Operating temperature
- 10°C to 38°C
- Air humidity
- 40% to 70%
- Control system
- Printbox software
- RIP software (printing software)
- Maintop or Photoprint (to choose from)
- Machine dimensions
- 1660×1630×900 mm
- Machine weight
- 245 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

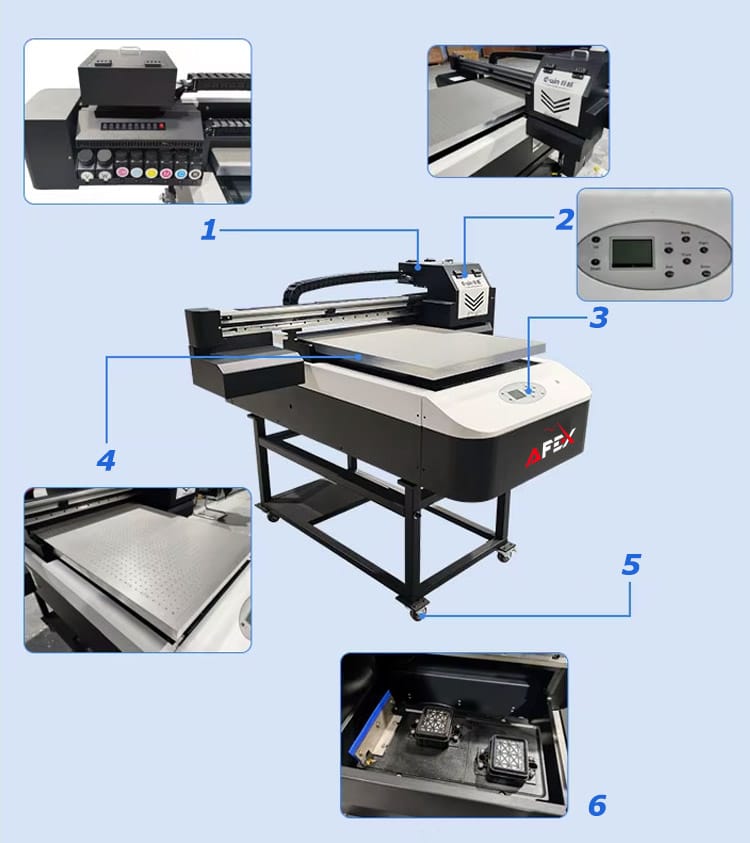

Machine components
6 items
- 1Ink supply system — continuously feeds UV ink, helping to achieve stable printing
- 2Print carriage (head block) — moves along the guide to output the image
- 3Control panel — a convenient panel for managing printer settings and monitoring operation
- 4Vacuum platform — holds the material firmly during printing
- 5Universal casters — allow the printer to be moved easily around the room
- 6Ink station (cleaning unit) — the print heads park here and are cleaned automatically
