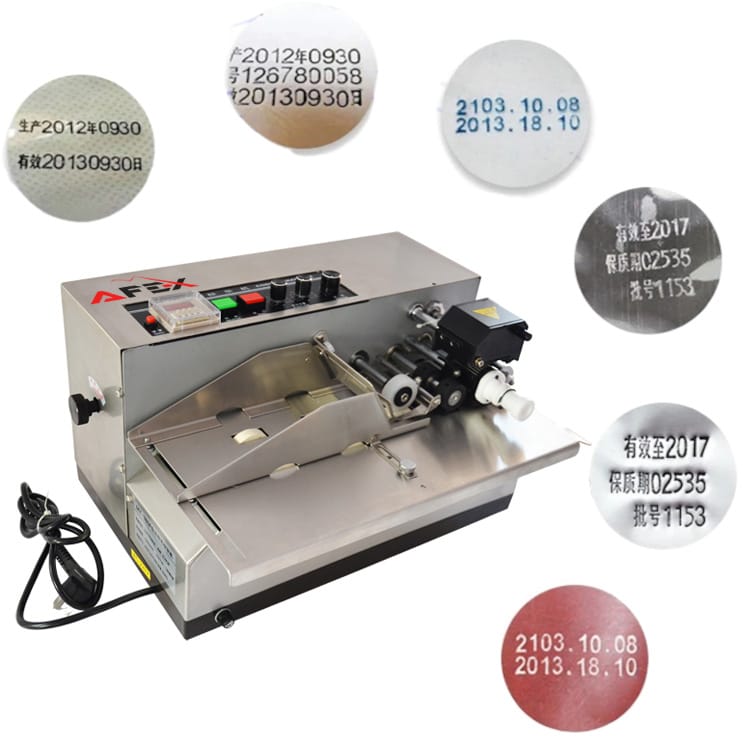

1 / 3Automatic Ink Roller Coding Machine AF-380F
The automatic ink roller coding machine is designed to print labels or data on paper, thin cardboard, plastic film and aluminum foil.
- Power
- 180 W
- Speed
- 12.5 m/min
- Voltage
- AC 220 V/50 Hz
- Machine dimensions
- 440 × 345 × 260 mm
- Weight
- 23 kg
- Product size
- Length 55–500 mm
Overview
Key advantages
- Equipped with a photoelectric system, automatic temperature control and automatic counting function
- The printing position is easily adjusted with a dedicated knob
- High-speed operation — marks up to 30 products per minute
- Thickness adjustment for products of different thicknesses
- Date printing and paging functions increase work efficiency and reduce labor costs
About the equipment
The automatic ink roller coding machine is designed to print labels or data on paper, thin cardboard, plastic film and aluminum foil. It works on solid ink technology, so the print is sharp, dries quickly and adheres well to the material. Printing in several colors is possible.
General
- Speed
- 12.5 m/min
- Product size
- Length 55–500 mm, width 30–300 mm
- Printing area
- Within 60 mm × 250 mm
- Font type and size
- T and R types, 2.0 mm, 2.5 mm and 3.0 mm available
- Voltage
- AC 220 V/50 Hz
- Power
- 180 W
- Machine dimensions
- 440 × 345 × 260 mm
- Weight
- 23 kg

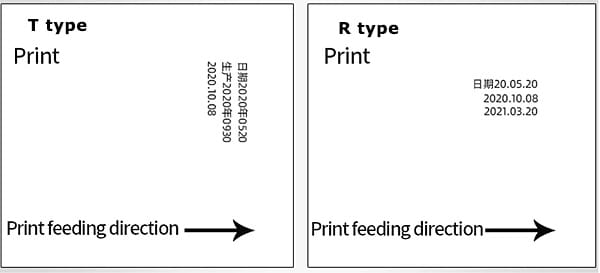

Font layout

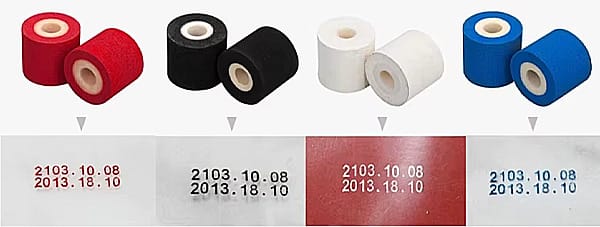

Ink types
The marking color can be changed according to the color of the special ribbon
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Ink Roller Coding Machine AF-380FYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
8 parameters- Speed
- 12.5 m/min
- Product size
- Length 55–500 mm, width 30–300 mm
- Printing area
- Within 60 mm × 250 mm
- Font type and size
- T and R types, 2.0 mm, 2.5 mm and 3.0 mm available
- Voltage
- AC 220 V/50 Hz
- Power
- 180 W
- Machine dimensions
- 440 × 345 × 260 mm
- Weight
- 23 kg
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
How long will the shipments be delivered?
What are the shipping methods available?
What is required of me to conclude a contract?
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
In stockRibbon date coding equipment
In stockDate and code printing equipment (Semi-automatic)

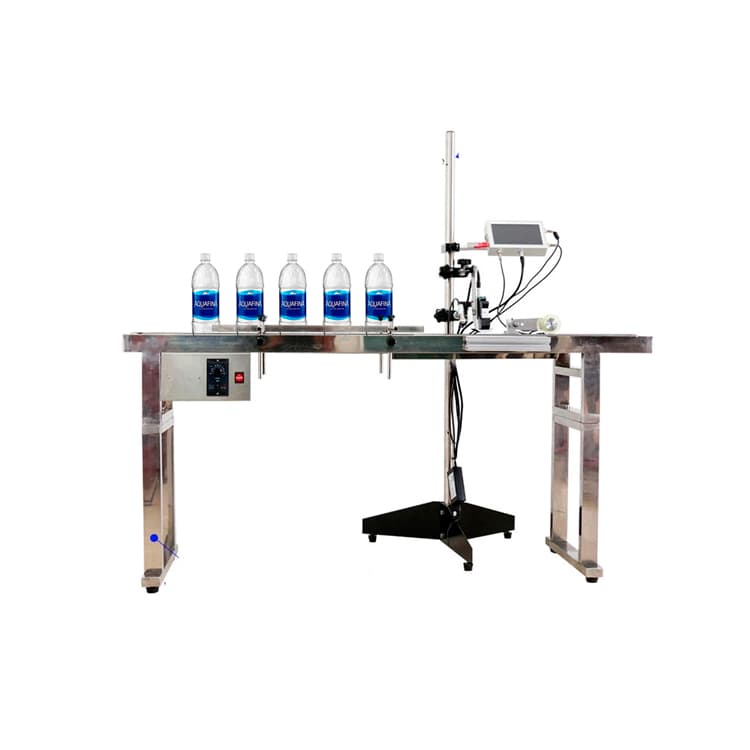

Pet bottle dater AF-600dpi
Egg printer
4-line inkjet date printer

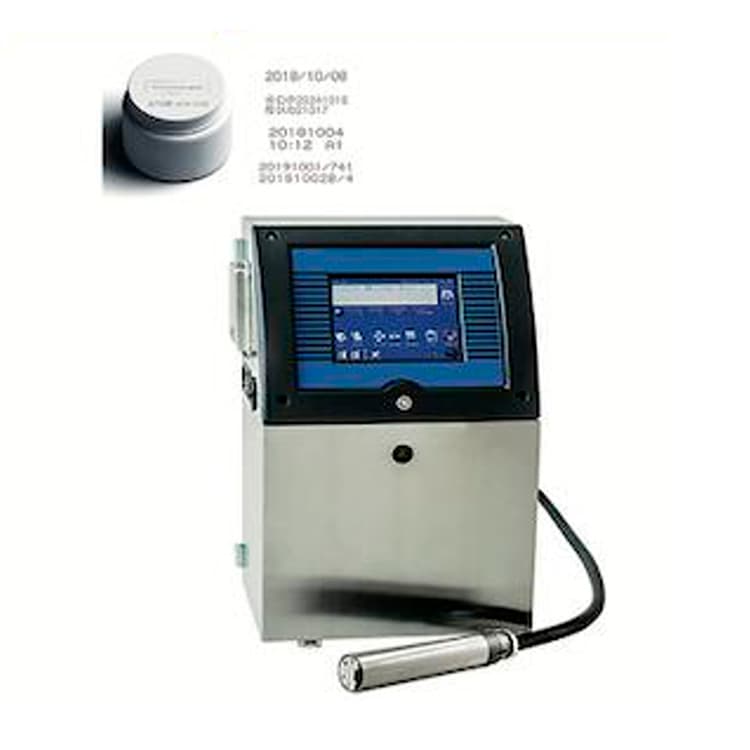

3-line inkjet date printer
